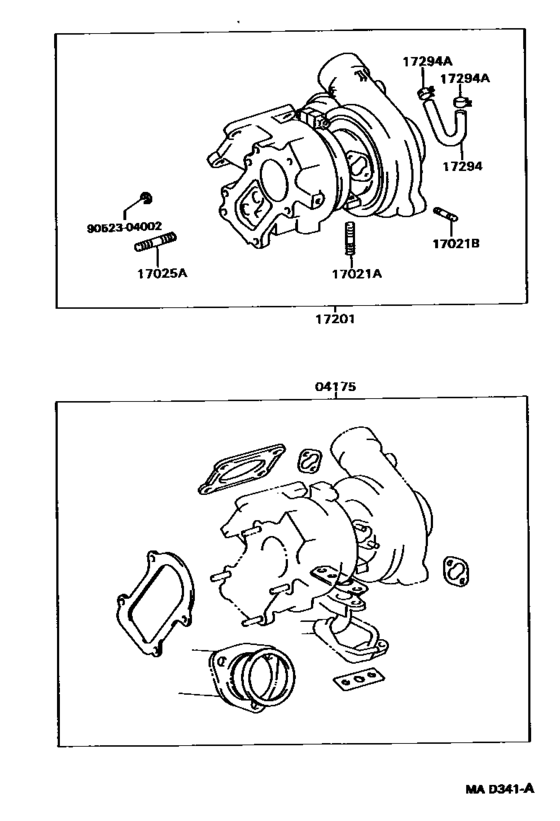

Manifold ([02.1994 - ] (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-74040 Gasket Kit, Turbocharger[02.1994 -] 3SGTE..ST205 |
04175-74040 |
US $106.29 |
||
|
17021A
|
17021A
90116-08158 Bolt, Stud(For Bearing Housing)[02.1994 -] 3SGTE..ST205 |
90116-08158 |
US $4.96 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[02.1994 -] 3SGTE..ST205 |
90116-06048 |
from US $0.72 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[07.1994 -] 3SGTE..ST205 |
90116-10125 |
US $3.04 |
||
|
17025A
|
17025A
90116-10174
Bolt, Stud(For Turbine Housing)
[02.1994 - 07.1994] 3SGTE..ST205 |
90116-10174 |
— | ||
| replacement | |||||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[02.1994 - 07.1994] 3SGTE..ST205 |
90116-10125 |
US $3.04 |
||
|
17201
|
17201
17201-74070
Turbocharger Sub-Assy
[02.1994 -] 3SGTE..ST205 |
17201-74070 |
— | ||
|
17294
|
17294
17294-74010
Hose, Actuator
[02.1994 -] 3SGTE..ST205 |
17294-74010 |
— | ||
|
17294A
|
17294A
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)[02.1994 -] 3SGTE..ST205 |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
17294A
|
17294A
96132-51100 Clip (For Hose)[02.1994 -] 3SGTE..ST205 |
96132-51100 |
from US $1.79 |
||
|
9052304002
|
9052304002
90523-04002 RING |
90523-04002 |
US $1.28 |
||
