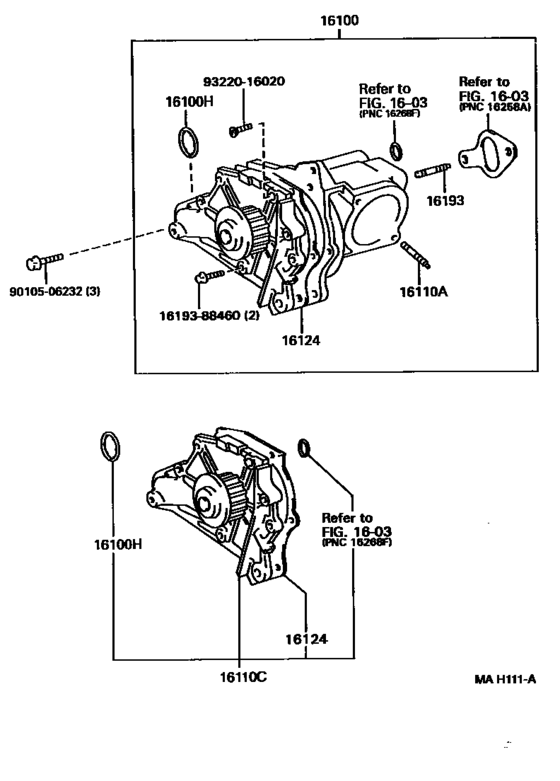

Water Pump ([02.1994 - ] (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-79235 Pump Assy, Engine Water[02.1994 -] 3SGTE..ST205 |
16100-79235 |
US $198.02 |
||
| replacement | |||||
|
16100
|
16100
16100-79236
Pump Assy, Engine Water
[02.1994 -] 3SGTE..ST205 |
16100-79236 |
— | ||
|
16100H
|
16100H
90301-37005 Ring, O(For Water Pump)[09.1993 -] 3SFE,3SG#..ST20# |
90301-37005 |
from US $2.11 |
||
|
16110A
|
16110A
16193-63010 Bolt, Stud(For Water Outlet Setting)[09.1993 -] 3SFE,3SG#..ST20# |
16193-63010 |
US $5.60 |
||
|
16110C
|
16110C
16110-79125
Pump Assy, Water, W/o Cover
[02.1994 -] 3SGTE..ST205 |
16110-79125 |
— | ||
|
16124
|
16124
16124-88460 Gasket, Water Pump Cover[09.1993 -] 3SFE,3SG#..ST20# |
16124-88460 |
from US $8.99 |
||
|
16193
|
16193
90029-01500 Bolt, Stud(For Water Pump Cover)[09.1993 -] 3SFE,3SG#..ST20# |
90029-01500 |
US $1.49 |
||
|
1619388460
|
1619388460
16193-88460 Bolt, Stud(for Water Pump Cover) |
16193-88460 |
US $4.64 |
||
|
9010506232
|
9010506232
90105-06232 New Genuine Part |
90105-06232 |
from US $1.41 |
||
|
9322016020
|
9322016020
93220-16020 SCREW |
93220-16020 |
US $4.16 |
||
