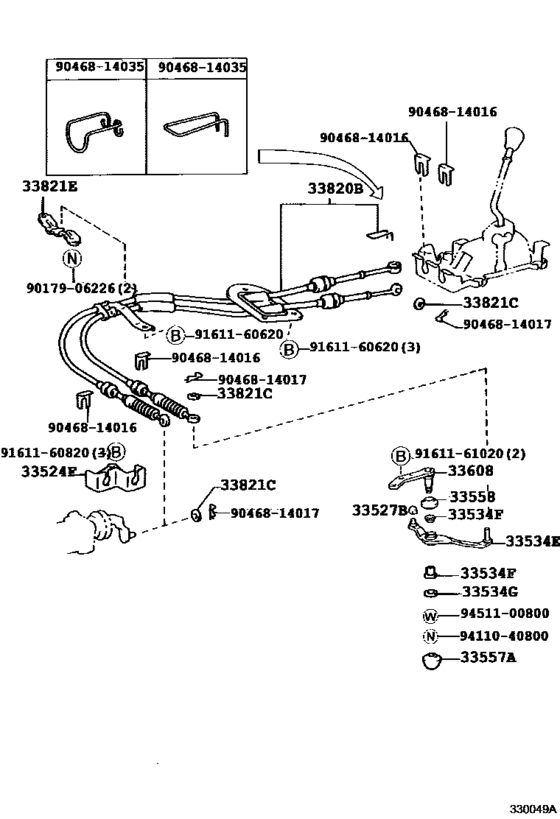

Shift Lever & Retainer ([02.1994 - ] E154F (9402- )ST205) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- General
- Frame
- ST205
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 02.1994
- To
- 08.1999
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33524F
|
33524F
33524-20010
Bracket, Control Cable
[02.1994 -] ST205 |
33524-20010 |
— | ||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[11.1993 -] ST20#..MTM |
33557-33010 |
from US $7.20 |
||
|
33534E
|
33534E
33534-12091
Crank, Selecting Bell, No.2
[02.1994 -] ST205 |
33534-12091 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[11.1993 -] ST20#..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[11.1993 -] ST20#..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[11.1993 -] ST20#..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[02.1994 -] ST205 |
33558-10030 |
from US $3.68 |
||
|
33608
|
33608
33608-12031 Support Sub-Assy, Selecting Bellcrank[02.1994 -] ST205 |
33608-12031 |
US $12.38 |
||
|
33820B
|
33820B
33820-2B350
Cable Assy, Transmission Control
[02.1994 -] ST205 |
33820-2B350 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[11.1993 -] ST20#..MTM OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[11.1993 -] ST20#..MTM OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.92 |
||
|
33821C
|
33821C
90201-10113 Washer, Plate (For Transmission Control Cable)[11.1993 -] ST20#..MTM SHIFT LEVER SIDE |
90201-10113 |
US $1.31 |
||
|
33821E
|
33821E
90949-01939
Clamp, No.1 (For Transmission Control Cable)
[02.1994 -] ST205 |
90949-01939 |
— | ||
|
9017906226
|
9017906226
90179-06226
Nut (For Rear Wiper Arm Setting)
|
90179-06226 |
— | ||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
