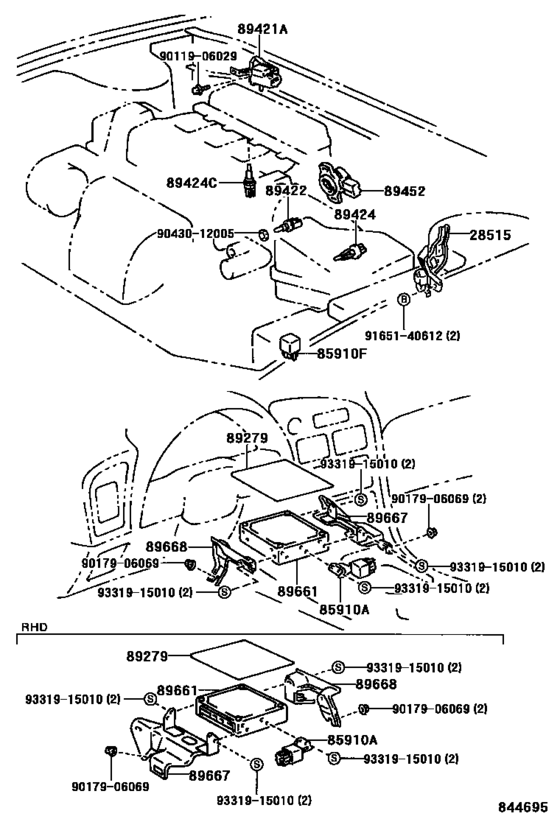

Electronic Fuel Injection System ([02.1994 - ] (9402- )ST205) Diagram Toyota CELICA
- Year
- 1994 - 1996
- Sales region
- Europe
- Frame
- ST205
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 06.1996
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28510-74130
Resistor, Solenoid
[02.1994 - 06.1996] 3SGTE..ST205 |
28510-74130 |
— | ||
|
85910A
|
85910A
85910-20040
Relay Assy, Circuit Opening (For Efi)
[11.1993 -] AT200,ST20#..RHD |
85910-20040 |
— | ||
|
85910F
|
85910F
90987-02009 Relay Assy[11.1993 -] AT200,ST20# |
90987-02009 |
from US $33.87 |
||
|
89279
|
89279
89279-12020 Cover, Engine Control Computer[11.1993 - 08.1995] AT200,ST20# |
89279-12020 |
US $4.22 |
||
|
89421A
|
89421A
89420-20310
Sensor, Turbo Pressure
[02.1994 - 06.1996] ST205 |
89420-20310 |
— | ||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[11.1993 - 08.1999] AT200,ST20# |
89422-35010 |
from US $40.58 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[11.1993 -] AT200,ST20# |
89424-12010 |
from US $57 |
||
|
89424C
|
89424C
89424-24010 Sensor, Inlet Air Temperature (For E.f.i.)[02.1994 - 06.1996] ST205 |
89424-24010 |
US $105.08 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[11.1993 -] AT200,ST20# |
89452-22090 |
from US $137.94 |
||
|
89661
|
89661
89661-2B850
Computer, Engine Control
[02.1994 - 06.1996] ST205 |
89661-2B850 |
— | ||
|
89667
|
89667
89667-20320 Bracket, Engine Control Computer[02.1994 -] AT200,ST205..RHD |
89667-20320 |
US $21.55 |
||
|
89668
|
89668
89668-20300 Bracket, Engine Control Computer, No.2[11.1993 - 08.1995] AT200,ST20#..RHD |
89668-20300 |
US $14.27 |
||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.28 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
