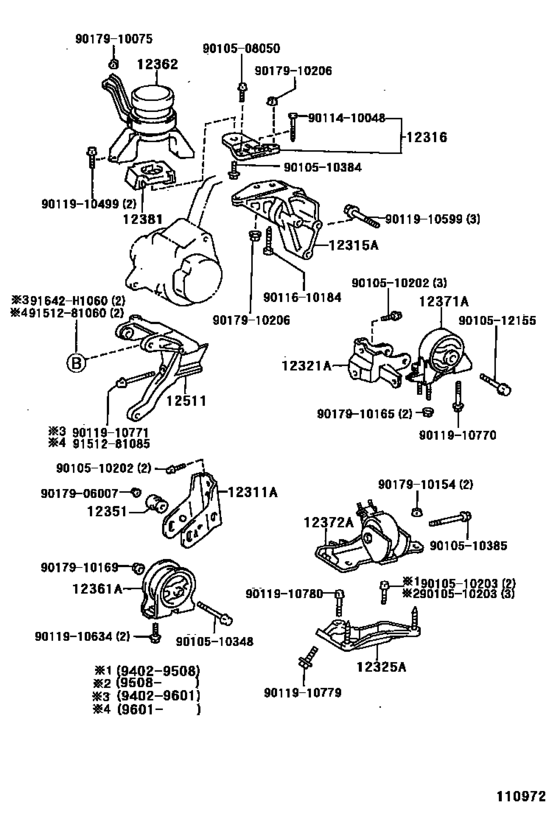

Mounting ([02.1994 - 06.1996] (9402-9606)3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1996
- Sales region
- Europe
- Frame
- ST205
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 06.1996
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-74160 Bracket, Engine Mounting, Front(For Transverse Engine)[02.1994 - 06.1996] 3SGTE..ST205 |
12311-74160 |
US $41.06 |
||
|
12315A
|
12315A
12315-74130 Bracket, Engine Mounting, Rh(For Transverse Engine)[11.1993 -] 3SG#..ST20# |
12315-74130 |
US $100.46 |
||
|
12316
|
12316
12316-74060 Bracket, Engine Mounting, No.2 Rh[02.1994 - 06.1996] 3SGTE..ST205 |
12316-74060 |
US $26.06 |
||
|
12321A
|
12321A
12321-74310
Bracket, Engine Mounting, Rear(For Transverse Engine)
[02.1994 - 06.1996] 3SGTE..ST205 |
12321-74310 |
— | ||
|
12325A
|
12325A
12325-74230
Bracket, Engine Mounting, Lh(For Transverse Engine)
[02.1994 - 06.1996] 3SGTE..ST205 |
12325-74230 |
— | ||
|
12351
|
12351
12351-64020 Damper, Engine Mounting[11.1993 -] 3SG#..ST20# |
12351-64020 |
US $46.82 |
||
|
12361A
|
12361A
12361-74340 Insulator, Engine Mounting, Front(For Transverse Engine)[11.1993 - 08.1995] 7AFE..AT200; 3SG#..ST20# |
12361-74340 |
US $74.02 |
||
|
12361A
|
12361A
12361-74400 Insulator, Engine Mounting, Front(For Transverse Engine)[08.1995 - 12.1995] 3SG#..ST20#..LB |
12361-74400 |
from US $73.72 |
||
|
12362
|
12362
12362-74320
Insulator, Engine Mounting, Rh(For Transverse Engine)
[02.1994 - 07.1995] 3SGTE..ST205 |
12362-74320 |
— | ||
| replacement | |||||
|
12362
|
12362
12362-74440
Insulator, Engine Mounting, Rh(For Transverse Engine)
[02.1994 - 07.1995] 3SGTE..ST205 |
12362-74440 |
— | ||
|
12362
|
12362
12362-74440
Insulator, Engine Mounting, Rh(For Transverse Engine)
[07.1995 - 06.1996] 3SGTE..ST205 |
12362-74440 |
— | ||
|
12371A
|
12371A
12371-74440 Insulator, Engine Mounting, Rear[02.1994 - 06.1996] 3SGTE..ST205 |
12371-74440 |
US $109.52 |
||
|
12372A
|
12372A
12372-74500
Insulator, Engine Mounting, Lh(For Transverse Engine)
[02.1994 - 06.1996] 3SGTE..ST205 |
12372-74500 |
— | ||
|
12381
|
12381
12381-74020
Stabilizer, Engine Mounting
[11.1993 -] 3SG#..ST20#..LB |
12381-74020 |
— | ||
|
12511
|
12511
12511-88480
Bracket, Alternator, No.1
[11.1993 - 06.1996] 3SG#..ST20# |
12511-88480 |
— | ||
| replacement | |||||
|
12511
|
12511
12511-88481
Bracket, Alternator, No.1
[11.1993 - 06.1996] 3SG#..ST20# |
12511-88481 |
— | ||
|
91642H1060
|
91642H1060
91642-H1060
New Genuine Part
|
91642-H1060 |
— | ||
|
9010508050
|
9010508050
90105-08050 Bolt (For Overdrive Case & Transaxle Case Setting) |
90105-08050 |
US $3.20 |
||
|
9010510202
|
9010510202
90105-10202
Bolt (For Front Differential Carrier Cover Setting)
|
90105-10202 |
— | ||
| replacement | |||||
|
9010510202
|
9010510202
90105-10361 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10361 |
from US $1.01 |
||
|
9010510203
|
9010510203
90105-10203 New Genuine Part |
90105-10203 |
US $3.14 |
||
|
9010510348
|
9010510348
90105-10348 BOLT WASHER BASED |
90105-10348 |
US $4.96 |
||
|
9010510384
|
9010510384
90105-10384 BOLT WASHER BASED |
90105-10384 |
US $3.52 |
||
|
9010510385
|
9010510385
90105-10385 New Genuine Part |
90105-10385 |
US $4.02 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.28 |
||
|
9011410048
|
9011410048
90114-10048 New Genuine Part |
90114-10048 |
US $2.04 |
||
|
9011610184
|
9011610184
90116-10184 BOLT STUD |
90116-10184 |
US $3.04 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.20 |
||
|
9011910599
|
9011910599
90119-10599 BOLT WWASHER |
90119-10599 |
from US $2.57 |
||
|
9011910634
|
9011910634
90119-10634
New Genuine Part
|
90119-10634 |
— | ||
|
9011910770
|
9011910770
90119-10770 New Genuine Part |
90119-10770 |
US $3.79 |
||
|
9011910771
|
9011910771
90119-10771 New Genuine Part |
90119-10771 |
US $4.02 |
||
| replacement | |||||
|
9011910771
|
9011910771
90119-10868
New Genuine Part
|
90119-10868 |
— | ||
|
9011910779
|
9011910779
90119-10779 New Genuine Part |
90119-10779 |
US $2.77 |
||
| replacement | |||||
|
9011910779
|
9011910779
90119-10905 New Genuine Part |
90119-10905 |
US $3.52 |
||
|
9011910780
|
9011910780
90119-10780
New Genuine Part
|
90119-10780 |
— | ||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910075
|
9017910075
90179-10075 Nut(For Front Suspension Lower Arm No.1 Rh) |
90179-10075 |
US $1.22 |
||
|
9017910154
|
9017910154
90179-10154 NUT |
90179-10154 |
from US $1.01 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $1.05 |
||
|
9017910169
|
9017910169
90179-10169 NUT |
90179-10169 |
US $2.62 |
||
|
9017910206
|
9017910206
90179-10206 New Genuine Part |
90179-10206 |
US $1.35 |
||
|
9151281060
|
9151281060
91512-81060 New Genuine Part |
91512-81060 |
US $1.18 |
||
|
9151281085
|
9151281085
91512-81085 Bolt(For Alternator) |
91512-81085 |
from US $1.92 |
||
