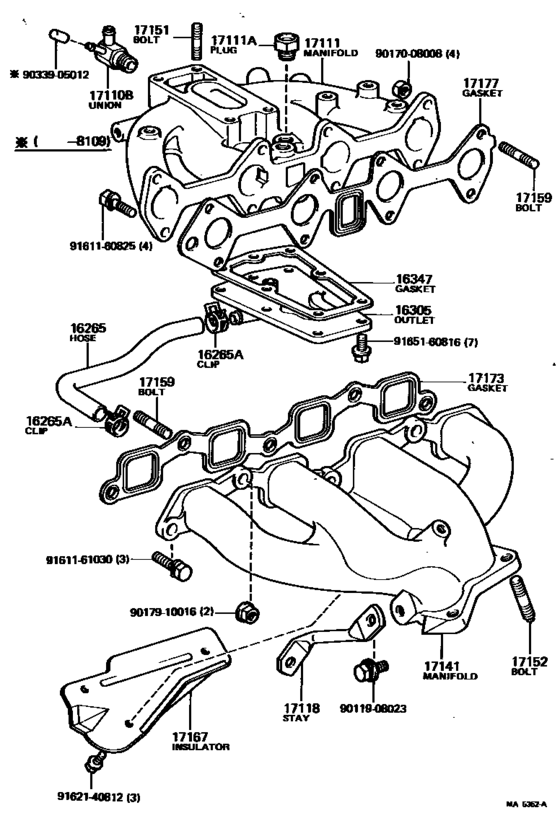

Manifold ([08.1981 - 08.1983] (8108-8308)2T) Diagram Toyota CELICA
- Year
- 1981 - 1983
- Sales region
- Europe
- Frame
- TA60
- grade
- ST
- body
- LB
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1981
- To
- 08.1983
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- SCB
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
90445-21611
Hose, Intake Manifold Water
[08.1981 - 08.1983] 2T..TA60 |
90445-21611 |
— | ||
|
16265A
|
16265A
90467-20005
Clip(For Ventilation Hose No.2)
[08.1981 - 07.1985] 2T#..TA60 |
90467-20005 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.1981 - 07.1985] 2T#..TA60 |
96134-41900 |
from US $1.44 |
||
|
16305
|
16305
16305-25011 Outlet Sub-Assy, Water By-Pass[08.1981 - 08.1983] 2T..TA60 |
16305-25011 |
US $28.83 |
||
|
16347
|
16347
16347-25011 Gasket, Water By-Pass[08.1981 - 01.1982] 2T..TA60 |
16347-25011 |
US $9.90 |
||
| replacement | |||||
|
16347
|
16347
16347-25013 Gasket, Water By-Pass[08.1981 - 01.1982] 2T..TA60 |
16347-25013 |
US $9.76 |
||
|
16347
|
16347
16347-25012 Gasket, Water By-Pass[01.1982 - 08.1983] 2T..TA60 |
16347-25012 |
US $9.90 |
||
| replacement | |||||
|
16347
|
16347
16347-25013 Gasket, Water By-Pass[01.1982 - 08.1983] 2T..TA60 |
16347-25013 |
US $9.76 |
||
|
17110B
|
17110B
90404-53018 Union(For Ventilation Hose To Manifold)[08.1981 - 09.1981] 2T..TA60 |
90404-53018 |
US $8.74 |
||
|
17110B
|
17110B
90407-09001
Union(For Ventilation Hose To Manifold)
[09.1981 - 08.1983] 2T..TA60 |
90407-09001 |
— | ||
|
17111
|
17111
17111-26051 Manifold, IntakeINTAKE [08.1981 - 08.1983] 2T..TA60 |
17111-26051 |
US $302.85 |
||
|
17111A
|
17111A
90345-53002 Plug, No.1[01.1982 - 08.1983] 2T..TA60 |
90345-53002 |
US $3.64 |
||
| replacement | |||||
|
17111A
|
17111A
90345-53007 Plug, W/head Taper Screw, No.1[01.1982 - 08.1983] 2T..TA60 |
90345-53007 |
from US $3.53 |
||
|
17111A
|
17111A
90345-53007 Plug, W/head Taper Screw, No.1[08.1981 - 01.1982] 2T..TA60 |
90345-53007 |
from US $3.53 |
||
|
17118
|
17118
17118-26020
Stay, Manifold
[08.1981 - 07.1985] 2T#..TA60 EXHAUST MANIFOLD |
17118-26020 |
— | ||
|
17141
|
17141
17141-26090 Manifold, ExhaustEXHAUST [08.1981 - 07.1985] 2T#..TA60 |
17141-26090 |
US $384.38 |
||
|
17151
|
17151
90116-08023 Bolt, Stud(For Manifold To Carburetor)[08.1981 - 08.1983] 2T..TA60 L=41,S=14&14 |
90116-08023 |
US $2.18 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[08.1981 - 05.1983] 2T#..TA60 |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1981 - 05.1983] 2T#..TA60 |
90116-10087 |
from US $2.40 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1983 - 07.1985] 2T#..TA60 L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08035 Bolt, Stud(For Manifold To Cylinder Head)[08.1981 - 07.1985] 2T#..TA60 INTAKE MANIFOLD |
90116-08035 |
US $2.48 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[08.1981 - 07.1985] 2T#..TA60 EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17167
|
17167
17167-26030 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [08.1981 - 07.1985] 2T#..TA60 |
17167-26030 |
US $27.52 |
||
|
17173
|
17173
17173-25012
Gasket, Exhaust Manifold To Head
[08.1981 - 07.1985] 2T#..TA60 |
17173-25012 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-25013 Gasket, Exhaust Manifold To Head[08.1981 - 07.1985] 2T#..TA60 |
17173-25013 |
US $8.56 |
||
|
17177
|
17177
17177-25030
Gasket, Intake Manifold To Head, No.1
[08.1981 - 07.1985] 2T#..TA60 |
17177-25030 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-25031 Gasket, Intake Manifold To Head, No.1[08.1981 - 07.1985] 2T#..TA60 |
17177-25031 |
US $7.13 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
