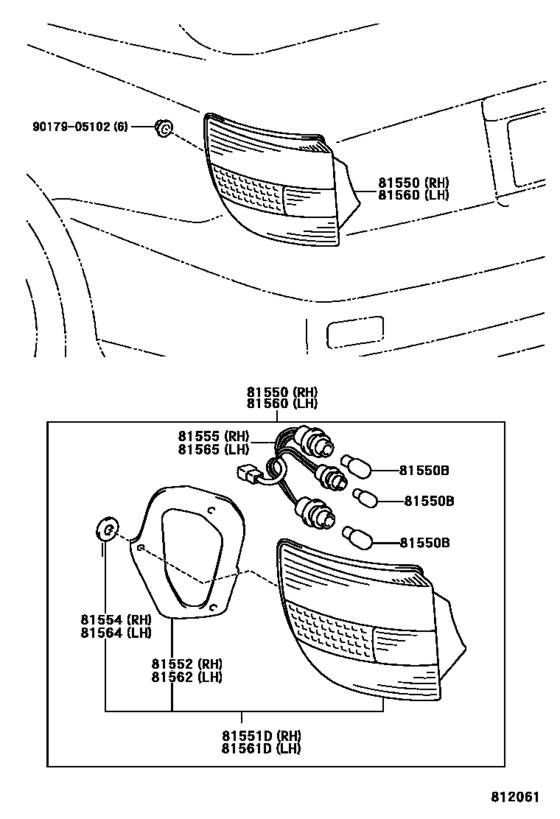

Rear Combination Lamp ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota CELICA
- Year
- 1999 - 2006
- Sales region
- Japan
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 04.2006
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-2B530 Lamp Assy, Rear Combination, Rh[08.1999 - 08.2002] ZZT23# |
81550-2B530 |
US $346.53 |
||
|
81550
|
81550
81550-2B580 Lamp Assy, Rear Combination, Rh[08.2002 - 04.2006] ZZT23# |
81550-2B580 |
US $393.12 |
||
|
81550B
|
81550B
90981-11039
Bulb (For License Plate Lamp)
[08.1999 - 08.2002] ZZT23# １２Ｖ １６Ｗ |
90981-11039 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.1999 - 08.2002] ZZT23# １２Ｖ １６Ｗ |
90981-11059 |
from US $3.20 |
||
|
81550B
|
81550B
90981-13050
Bulb, Cornering Lamp
[08.1999 - 08.2002] ZZT23# １２Ｖ ２１Ｗ |
90981-13050 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[08.1999 - 08.2002] ZZT23# １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13051
Bulb(For Rear Combination Lamp)
[08.1999 - 08.2002] ZZT23# １２Ｖ ２１／５Ｗ |
90981-13051 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.1999 - 08.2002] ZZT23# １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81551D
|
81551D
81551-2B530 Lens & Body, Rear Combination Lamp, Rh[08.1999 - 08.2002] ZZT23# |
81551-2B530 |
US $313.04 |
||
|
81551D
|
81551D
81551-2B580 Lens & Body, Rear Combination Lamp, Rh[08.2002 -] ZZT23# |
81551-2B580 |
US $365.46 |
||
|
81552
|
81552
81552-2B530
Gasket, Rear Combination Lamp Lens
[08.1999 - 08.2002] ZZT23# |
81552-2B530 |
— | ||
|
81552
|
81552
81554-2B590 Gasket, Rear Combination Lamp Lens[08.2002 -] ZZT23# |
81554-2B590 |
US $15.66 |
||
|
81554
|
81554
81554-47010 Gasket, Rear Combination Lamp Body, Rh[08.1999 - 08.2002] ZZT23# |
81554-47010 |
US $4.96 |
||
|
81555
|
81555
81555-2B530 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1999 - 08.2002] ZZT23# |
81555-2B530 |
US $19.14 |
||
|
81555
|
81555
81555-2B580 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 -] ZZT23# |
81555-2B580 |
US $33.20 |
||
|
81560
|
81560
81560-2B470 Lamp Assy, Rear Combination, Lh[08.1999 - 08.2002] ZZT23# |
81560-2B470 |
US $346.53 |
||
|
81560
|
81560
81560-2B520 Lamp Assy, Rear Combination, Lh[08.2002 - 04.2006] ZZT23# |
81560-2B520 |
US $393.12 |
||
|
81561D
|
81561D
81561-2B470 Lens & Body, Rear Combination Lamp, Lh[08.1999 - 08.2002] ZZT23# |
81561-2B470 |
US $313.04 |
||
|
81561D
|
81561D
81561-2B520 Lens & Body, Rear Combination Lamp, Lh[08.2002 -] ZZT23# |
81561-2B520 |
US $364.82 |
||
|
81562
|
81562
81552-2B530
Gasket, Rear Combination Lamp Lens
[08.1999 - 08.2002] ZZT23# |
81552-2B530 |
— | ||
|
81562
|
81562
81554-2B590 Gasket, Rear Combination Lamp Lens[08.2002 -] ZZT23# |
81554-2B590 |
US $15.66 |
||
|
81564
|
81564
81554-47010 Gasket, Rear Combination Lamp Body, Rh[08.1999 - 08.2002] ZZT23# |
81554-47010 |
US $4.96 |
||
|
81565
|
81565
81555-2B530 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1999 - 08.2002] ZZT23# |
81555-2B530 |
US $19.14 |
||
|
81565
|
81565
81555-2B580 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 -] ZZT23# |
81555-2B580 |
US $33.20 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.80 |
||
