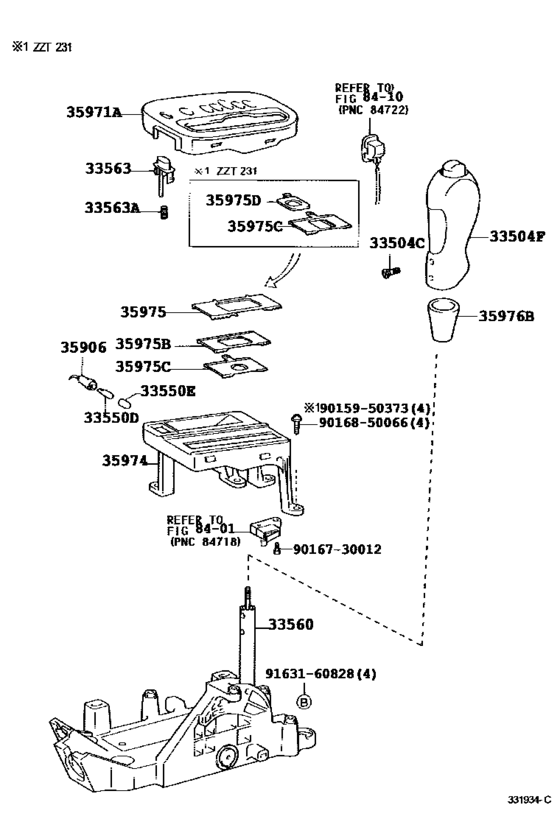

Shift Lever & Retainer ([08.2002 - ] (0208- )4FC) Diagram Toyota CELICA
- Year
- 1999 - 2006
- Sales region
- Japan
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 08.1999
- To
- 04.2006
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504C
|
33504C
90159-40238 Screw (For Shift Lever Knob Setting)[08.1999 - 08.2002] ZZT23#..4FC |
90159-40238 |
US $0.84 |
||
|
33504F
|
33504F
33504-20200 Knob Sub-Assy, Shift Lever[08.1999 - 08.2002] ZZT231..4FC |
33504-20200 |
US $110.66 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.1999 - 08.2002] ZZT23#..4FC １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
33550E
|
33550E
90339-04049 Cap, Position Indicator Lamp[08.1999 - 08.2002] ZZT23#..4FC |
90339-04049 |
from US $1.60 |
||
|
33560
|
33560
33560-20030 Unit Assy, Shift Lock Control[08.1999 - 08.2002] ZZT23#..4FC |
33560-20030 |
US $161.62 |
||
|
33560
|
33560
33560-20080
Unit Assy, Shift Lock Control
[08.2002 -] ZZT231..4FC |
33560-20080 |
— | ||
|
33563
|
33563
33563-20110 Button, Shift Lock Release[08.1999 - 08.2002] ZZT23#..4FC |
33563-20110 |
US $5.10 |
||
| replacement | |||||
|
33563
|
33563
33563-20130
Button, Shift Lock Release
[08.1999 - 08.2002] ZZT23#..4FC |
33563-20130 |
— | ||
|
33563
|
33563
33563-20130
Button, Shift Lock Release
[08.2002 -] ZZT23#..4FC |
33563-20130 |
— | ||
|
33563A
|
33563A
90501-05042 Spring, Compression (For Shift Lock Release Button)[08.1999 - 08.2002] ZZT23#..4FC |
90501-05042 |
US $1.14 |
||
|
35906
|
35906
35906-20110 Wire Sub-Assy, Indicator Lamp[08.1999 - 08.2002] ZZT23#..4FC |
35906-20110 |
US $16.02 |
||
|
35971A
|
35971A
35971-20350
Housing, Position Indicator, Upper
[08.1999 - 08.2002] ZZT231..4FC |
35971-20350 |
— | ||
| replacement | |||||
|
35971A
|
35971A
35971-20410
Housing, Position Indicator, Upper
[08.1999 - 08.2002] ZZT231..4FC |
35971-20410 |
— | ||
|
35971A
|
35971A
35971-20410
Housing, Position Indicator, Upper
[08.2002 -] ZZT231..4FC |
35971-20410 |
— | ||
|
35974
|
35974
35974-20220
Housing, Position Indicator, Lower
[08.1999 - 08.2002] ZZT23#..4FC |
35974-20220 |
— | ||
|
35975
|
35975
35975-20180 Cover, Slide (For Position Indicator)[08.1999 - 08.2002] ZZT23#..4FC |
35975-20180 |
US $5.42 |
||
|
35975B
|
35975B
35975-20190 Cover, Slide, No.2(For Position Indicator)[08.1999 - 08.2002] ZZT23#..4FC |
35975-20190 |
US $11.53 |
||
|
35975C
|
35975C
35975-20210 Cover, Slide, No.3(For Posision Indicator)[08.1999 - 08.2002] ZZT231..4FC |
35975-20210 |
US $5.39 |
||
|
35975D
|
35975D
35975-20220
Cover, Slide, No.4(For Position Indicator)
[08.1999 - 08.2002] ZZT231..4FC |
35975-20220 |
— | ||
|
35976B
|
35976B
35976-20110 Cover, Shift Lever Knob (For Floor Shift)[08.1999 - 08.2002] ZZT23#..4FC |
35976-20110 |
US $37.42 |
||
|
9015950373
|
9015950373
90159-50373 New Genuine Part |
90159-50373 |
US $1.46 |
||
|
9016730012
|
9016730012
90167-30012 New Genuine Part |
90167-30012 |
US $1.46 |
||
|
9016850066
|
9016850066
90168-50066 New Genuine Part |
90168-50066 |
US $1.46 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
