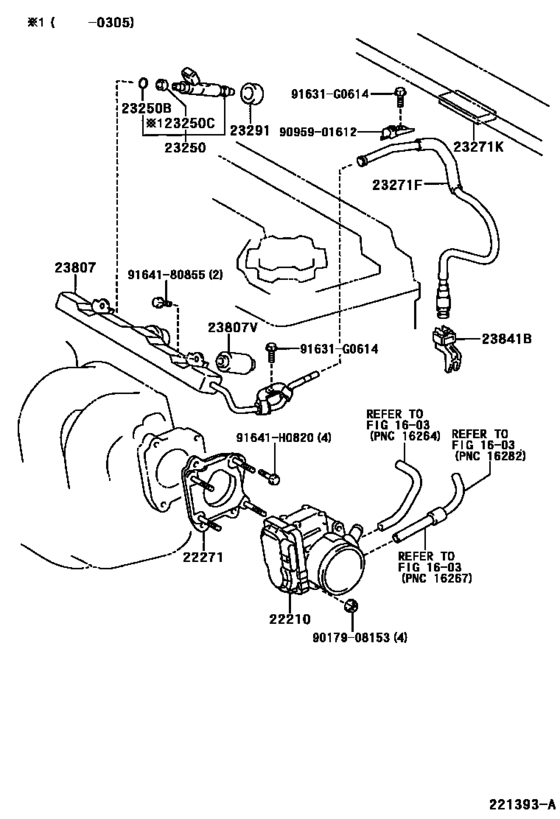

Fuel Injection System ([08.2002 - 07.2005] (0208-0507)2ZZGE) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- Europe
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 07.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-22030 Body Assy, ThrottleTHROTTLE [08.2002 - 07.2005] 2ZZGE..ZZT231 |
22030-22030 |
US $917.28 |
||
|
22210
|
22210
22210-22040 Body Assy, Throttle[08.1999 - 08.2002] 2ZZGE..ZZT231 |
22210-22040 |
US $1,202.07 |
||
|
22271
|
22271
22271-88600 Gasket, Throttle Body[08.1999 - 08.2002] 2ZZGE..ZZT231 |
22271-88600 |
from US $12.48 |
||
|
22271
|
22271
22271-88602 Gasket, Throttle BodyTHROTTLE BODY [08.2002 - 07.2005] 2ZZGE..ZZT231 |
22271-88602 |
US $75.71 |
||
|
23250
|
23250
23209-22060-01 Injector Assy, Fuel[08.1999 - 08.2002] 2ZZGE..ZZT231 NO.= 23250-22060,MARK WHITE |
23209-22060-01 |
US $270.82 |
||
|
23250
|
23250
23209-22060-02 Injector Assy, Fuel[08.2002 - 05.2003] 2ZZGE..ZZT231 MARK BLUE |
23209-22060-02 |
US $270.82 |
||
|
23250
|
23250
23209-22070 Injector Assy, FuelFUEL [05.2003 - 05.2005] 2ZZGE..ZZT231 NO.= 23250-22070 |
23209-22070 |
US $270.82 |
||
| replacement | |||||
|
23250
|
23250
23209-22130 Injector Assy, FuelFUEL [05.2003 - 05.2005] 2ZZGE..ZZT231 NO.= 23250-22070 |
23209-22130 |
US $270.82 |
||
|
23250
|
23250
23209-22130 Injector Assy, FuelFUEL [08.2004 - 07.2005] 2ZZGE..ZZT231 NO.= 23250-22130 |
23209-22130 |
US $270.82 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.1999 - 08.2002] 1ZZFE,2ZZGE..ZZT23# |
90301-07024 |
US $3.04 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1999 - 08.2002] 2ZZGE..ZZT231 |
90480-13005 |
from US $2.50 |
||
|
23271F
|
23271F
23271-88600 Hose, Fuel[08.1999 - 08.2000] 2ZZGE..ZZT231 |
23271-88600 |
US $32.18 |
||
| replacements | |||||
|
23271F
|
23271F
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[08.1999 - 08.2000] 2ZZGE..ZZT231 |
23841-21050 |
US $3.52 |
||
|
23271F
|
23271F
23271-88602 Hose, Fuel[08.1999 - 08.2000] 2ZZGE..ZZT231 |
23271-88602 |
US $32.32 |
||
|
23271F
|
23271F
23271-88602 Hose, Fuel[08.2000 - 08.2002] 2ZZGE..ZZT231 |
23271-88602 |
US $32.32 |
||
|
23271K
|
23271K
27747-22010 Insulator(For Fuel Hose)[07.2000 - 08.2000] 2ZZGE..ZZT231 |
27747-22010 |
US $6.99 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1999 - 08.2002] 2ZZGE..ZZT231 |
23291-41010 |
from US $2.87 |
||
|
23807
|
23807
23807-88600 Pipe Sub-Assy, Fuel Delivery[08.1999 - 08.2002] 2ZZGE..ZZT231 |
23807-88600 |
US $183.46 |
||
|
23807V
|
23807V
90561-08059 Spacer, No.1(For Delivery Pipe)[08.1999 - 08.2002] 2ZZGE..ZZT231 |
90561-08059 |
US $2.97 |
||
|
23841B
|
23841B
23841-21020 Clamp, Fuel Pipe, No.1(For Efi)[08.1999 - 07.2000] 1ZZFE,2ZZGE..ZZT23# |
23841-21020 |
US $4.95 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[07.2000 - 08.2000] 2ZZGE..ZZT231 |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[07.2000 - 08.2000] 2ZZGE..ZZT231 |
23841-21050 |
US $3.52 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.72 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.92 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9095901612
|
9095901612
90959-01612 New Genuine Part |
90959-01612 |
US $4.22 |
||
|
9164180855
|
9164180855
91641-80855
Bolt
|
91641-80855 |
— | ||
