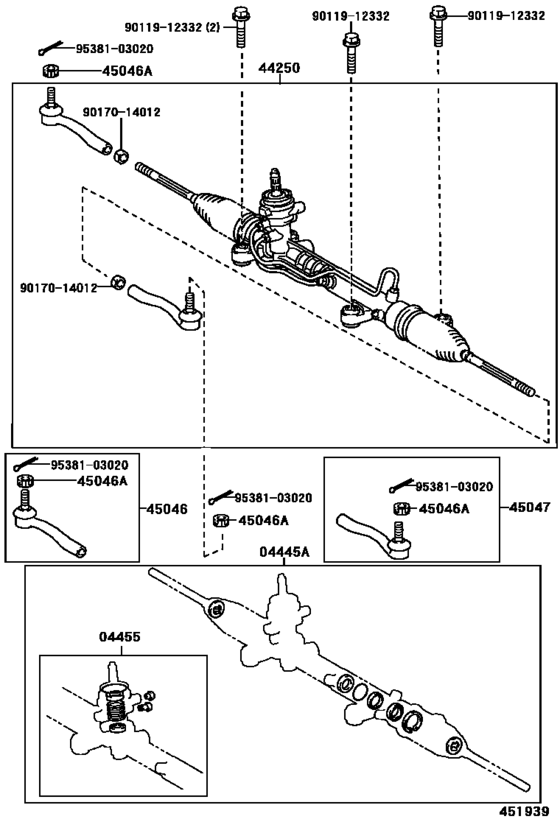

Front Steering Gear & Link ([08.1999 - 08.2002] (9908-0208)) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-20261 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1999 - 08.2002] ZZT231 |
04445-20261 |
from US $82.99 |
||
|
04455
|
04455
04455-20171 Gasket Kit, Power Steering Control Valve Overhole[08.1999 - 08.2002] ZZT231 |
04455-20171 |
US $39.18 |
||
|
44250
|
44250
44200-20850 Gear Assy, Power Steering(For Rack & Pinion)[12.1999 - 04.2000] ZZT231 |
44200-20850 |
US $1,543.36 |
||
| replacement | |||||
|
44250
|
44250
44200-20851 Gear Assy, Power Steering(For Rack & Pinion)[12.1999 - 04.2000] ZZT231 |
44200-20851 |
US $1,543.36 |
||
|
44250
|
44250
44200-20851 Gear Assy, Power Steering(For Rack & Pinion)[04.2000 - 08.2002] ZZT231 |
44200-20851 |
US $1,543.36 |
||
|
44250
|
44250
44200-29015 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 12.1999] ZZT231 |
44200-29015 |
US $1,543.36 |
||
| replacement | |||||
|
44250
|
44250
44200-20851 Gear Assy, Power Steering(For Rack & Pinion)[08.1999 - 12.1999] ZZT231 |
44200-20851 |
US $1,543.36 |
||
|
45046
|
45046
45046-49085 End Sub-Assy, Tie Rod, Rh[08.1999 - 08.2002] ZZT231 |
45046-49085 |
US $58.98 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1999 - 08.2002] ZZT231 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-49015 End Sub-Assy, Tie Rod, Rh[08.1999 - 08.2002] ZZT231 |
45047-49015 |
US $58.98 |
||
|
9011912332
|
9011912332
90119-12332 New Genuine Part |
90119-12332 |
US $5.07 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
