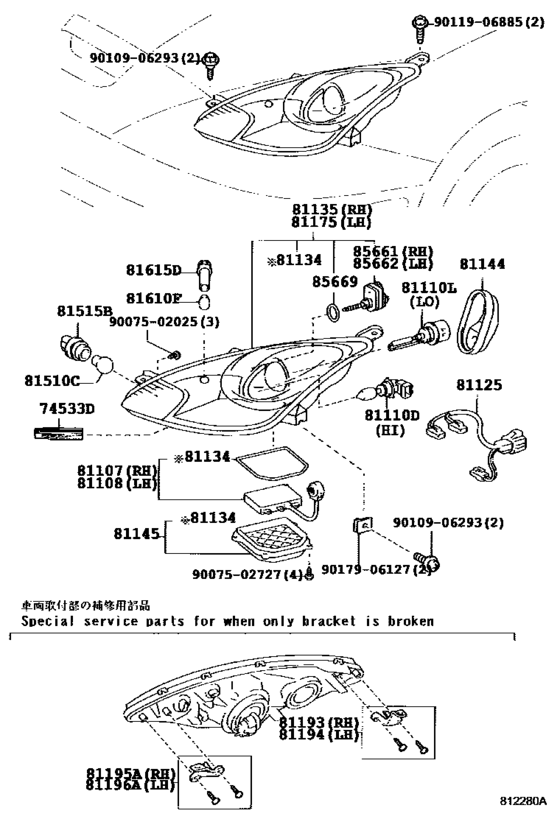

Headlamp ([08.2002 - 09.2005] DISCHARGE HEADLAMP (0208-0509)) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74533D
|
74533D
74533-33010 Label, Headlamp Voltage Caution[08.2002 - 09.2005] ZZT231 |
74533-33010 |
US $3.67 |
||
|
81107
|
81107
81107-2D020 Computer Sub-Assy, Headlamp Light Control, Rh[08.2002 - 09.2005] ZZT231 |
81107-2D020 |
US $624.62 |
||
|
81108
|
81108
81107-2D020 Computer Sub-Assy, Headlamp Light Control, Rh[08.2002 - 09.2005] ZZT231 |
81107-2D020 |
US $624.62 |
||
|
81110D
|
81110D
90981-13063 Bulb(For Headlamp, No.2)[08.1999 - 08.2002] ZZT231 12V 55W,HALOGEN |
90981-13063 |
from US $16.38 |
||
|
81110D
|
81110D
90981-13066 Bulb(For Headlamp, No.2)[08.2002 - 09.2005] ZZT231 12V 65W,HALOGEN,HID HEAD LAMP |
90981-13066 |
from US $24.22 |
||
|
81110L
|
81110L
90981-20005 Bulb(For Headlamp, No.1)[08.2002 - 09.2005] ZZT231 85V 35W |
90981-20005 |
from US $187.20 |
||
|
81125
|
81125
81125-2D020 Cord, Headlamp[08.2002 - 09.2005] ZZT231 |
81125-2D020 |
US $18.35 |
||
|
81134
|
81134
90075-68001 Gasket, Headlamp[08.2002 - 09.2005] ZZT231 |
90075-68001 |
US $6.88 |
||
|
81135
|
81135
81130-2B770 Unit Assy, Headlamp, Rh[08.1999 - 08.2002] ZZT231 |
81130-2B770 |
US $535.26 |
||
|
81135
|
81135
81145-2D020 Unit Assy, Headlamp, Rh[08.2002 - 09.2005] ZZT231 HID HEAD LAMP |
81145-2D020 |
US $760.03 |
||
|
81144
|
81144
81135-2D020
Cover, Headlamp, No.1
[08.2002 - 09.2005] ZZT231 HID HEAD LAMP,RH |
81135-2D020 |
— | ||
|
81144
|
81144
81175-2B870 Cover, Headlamp, No.1[08.2002 - 09.2005] ZZT231 HID HEAD LAMP,LH |
81175-2B870 |
US $14.27 |
||
|
81144
|
81144
90075-65014 Cover, Headlamp, No.1[08.1999 - 08.2002] ZZT231 |
90075-65014 |
US $15.52 |
||
|
81145
|
81145
90075-65015 Cover, Headlamp, No.2[08.1999 - 08.2002] ZZT231 |
90075-65015 |
US $8.15 |
||
|
81145
|
81145
90075-67005 Cover, Headlamp, No.2[08.2002 - 09.2005] ZZT231 HID HEAD LAMP |
90075-67005 |
US $10.92 |
||
| replacement | |||||
|
81145
|
81145
90075-67008 Cover, Headlamp, No.2[08.2002 - 09.2005] ZZT231 HID HEAD LAMP |
90075-67008 |
US $9.90 |
||
|
81175
|
81175
81170-2B730 Unit Assy, Headlamp, Lh[08.1999 - 08.2002] ZZT231 |
81170-2B730 |
US $566.38 |
||
|
81175
|
81175
81185-2B870 Unit Assy, Headlamp, Lh[08.2002 - 09.2005] ZZT231 HID HEAD LAMP |
81185-2B870 |
US $760.03 |
||
|
81193
|
81193
81193-20020 Retainer, Headlamp Protector, Upper Rh[08.1999 - 08.2002] ZZT231 |
81193-20020 |
from US $8.93 |
||
|
81194
|
81194
81194-20020 Retainer, Headlamp Protector, Upper Lh[08.1999 - 08.2002] ZZT231 |
81194-20020 |
US $11.21 |
||
|
81195A
|
81195A
81195-20020 Retainer, Headlamp Protector, Lower Rh[08.1999 - 08.2002] ZZT231 |
81195-20020 |
from US $9.15 |
||
|
81196A
|
81196A
81196-20020 Retainer, Headlamp Protector, Lower Lh[08.1999 - 08.2002] ZZT231 |
81196-20020 |
from US $8.78 |
||
|
81510C
|
81510C
90981-15009 Bulb(For Headlamp, No.2)[08.1999 - 08.2002] ZZT231 12V 21W,AMBER |
90981-15009 |
from US $5.05 |
||
|
81515B
|
81515B
90075-60006 Cover, Headlamp Socket[08.1999 - 08.2002] ZZT231 |
90075-60006 |
from US $6.83 |
||
|
81515B
|
81515B
90075-60069 Socket, Front Turn Signal Lamp[08.2002 - 09.2005] ZZT231 HID HEAD LAMP |
90075-60069 |
from US $6.73 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.1999 - 08.2002] ZZT231 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.1999 - 08.2002] ZZT231 12V 5W |
90080-81053 |
US $2.75 |
||
|
81615D
|
81615D
90075-60004 Cover, Headlamp Socket[08.1999 - 08.2002] ZZT231 |
90075-60004 |
US $15.68 |
||
|
81615D
|
81615D
90075-60046 Socket Plug, No.1[08.2002 - 05.2005] ZZT231 HID HEAD LAMP |
90075-60046 |
from US $6.65 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[06.2005 - 09.2005] ZZT231 HID HEAD LAMP |
90075-60077 |
from US $6.47 |
||
|
85661
|
85661
85661-22020 Motor, Headlamp Leveling, Rh[08.2002 - 09.2005] ZZT231 |
85661-22020 |
US $88.80 |
||
|
85662
|
85662
85661-22020 Motor, Headlamp Leveling, Rh[08.2002 - 09.2005] ZZT231 |
85661-22020 |
US $88.80 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[08.2002 - 09.2005] ZZT231 |
90075-99120 |
from US $2.42 |
||
|
9007502025
|
9007502025
90075-02025 Screw, Headlamp |
90075-02025 |
from US $0.84 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
US $1.12 |
||
|
9010906293
|
9010906293
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.74 |
||
|
9011906885
|
9011906885
90119-06885 Bolt, Radiator Tank Pipe |
90119-06885 |
US $0.96 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $1.44 |
||
