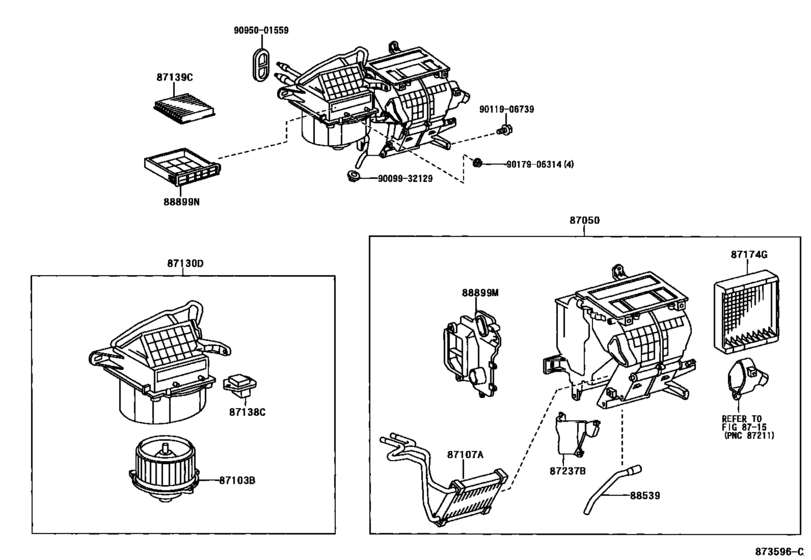

Heating & Air Conditioning - Cooler Unit ([08.1999 - 09.2005] W/O(AIR CONDITIONER) (9908-0509)) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-20460 Radiator Assy, Air ConditionerAIR CONDITIONER [08.1999 - 08.2002] ZZT231 |
87050-20460 |
US $471.74 |
||
|
87103B
|
87103B
87103-20120
Motor Sub-Assy, Blower W/fan
[08.1999 - 06.2001] ZZT231 |
87103-20120 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-20150
Motor Sub-Assy, Blower W/fan
[08.1999 - 06.2001] ZZT231 |
87103-20150 |
— | ||
|
87103B
|
87103B
87103-20150
Motor Sub-Assy, Blower W/fan
[06.2001 - 08.2002] ZZT231 |
87103-20150 |
— | ||
|
87107A
|
87107A
87107-20670
Unit Sub-Assy, Heater Radiator
[08.1999 - 08.2002] ZZT231 |
87107-20670 |
— | ||
|
87130D
|
87130D
87130-20610
Blower Assy
[08.1999 - 08.2002] ZZT231 |
87130-20610 |
— | ||
|
87138C
|
87138C
87138-20350
Resistor, Blower
[08.1999 - 08.2002] ZZT231 |
87138-20350 |
— | ||
|
87139C
|
87139C
87139-47010 Filter, Clean Air[08.1999 - 08.2002] ZZT231 |
87139-47010 |
from US $22.71 |
||
| replacement | |||||
|
87139C
|
87139C
87139-28010 Filter, Clean Air[08.1999 - 08.2002] ZZT231 |
87139-28010 |
from US $30.40 |
||
|
87174G
|
87174G
87174-20020
Guide, Air Heater
[08.1999 - 08.2002] ZZT231 |
87174-20020 |
— | ||
|
87237B
|
87237B
87237-20010
Cover, Heater Piping
[08.1999 - 08.2002] ZZT231 |
87237-20010 |
— | ||
|
88539
|
88539
88539-20300
Hose, Cooler Unit Drain, No.1
[08.1999 - 08.2002] ZZT231 |
88539-20300 |
— | ||
|
88899M
|
88899M
88899-20300
Plate, Cover(For Air Filter)
[08.1999 - 08.2002] ZZT231 W(AIR CONDITIONER) |
88899-20300 |
— | ||
|
88899M
|
88899M
88899-20310
Plate, Cover(For Air Filter)
[08.1999 - 08.2002] ZZT231 |
88899-20310 |
— | ||
|
88899N
|
88899N
88899-41010 Plate, Cover(For Air Filter)[08.1999 - 08.2002] ZZT231 |
88899-41010 |
US $8.74 |
||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9011906739
|
9011906739
90119-06739 New Genuine Part |
90119-06739 |
US $1.16 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9095001559
|
9095001559
90950-01559 Grommet, (For Cooler Pipe) |
90950-01559 |
US $2.48 |
||
