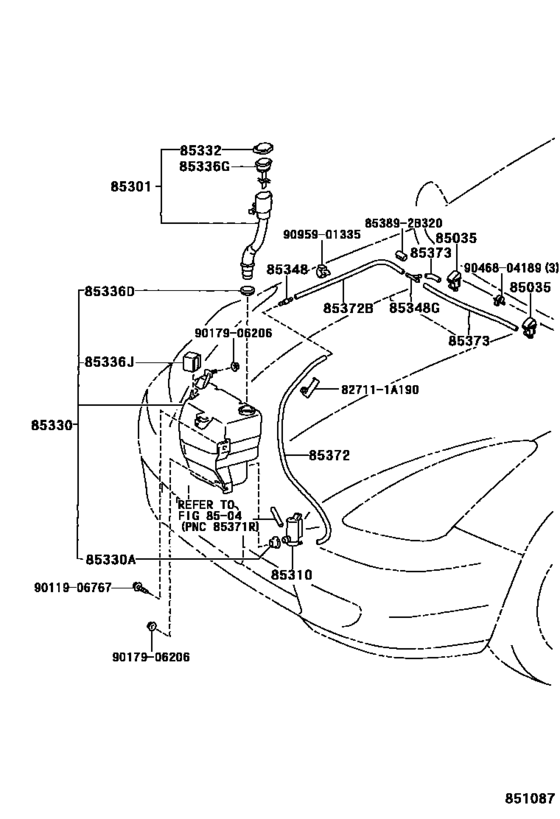

Windshield Washer ([08.2002 - 09.2005] W(DISCHARGE HEADLAMP) (0208-0509)) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-20180
Nozzle Sub-Assy, Washer
[08.1999 - 08.2002] ZZT231 |
85381-20180 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-20190
Nozzle Sub-Assy, Washer
[08.1999 - 08.2002] ZZT231 |
85381-20190 |
— | ||
|
85035
|
85035
85381-20190
Nozzle Sub-Assy, Washer
[08.2002 - 09.2005] ZZT231 |
85381-20190 |
— | ||
|
85301
|
85301
85301-20030
Inlet Sub-Assy, Washer
[08.1999 - 08.2002] ZZT231 |
85301-20030 |
— | ||
|
85301
|
85301
85301-20040
Inlet Sub-Assy, Washer
[08.2002 - 09.2005] ZZT231 |
85301-20040 |
— | ||
|
85310
|
85310
85330-20460
Motor And Pump Assy, Windshield Washer
[08.1999 - 08.2002] ZZT231 |
85330-20460 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-20461 Motor And Pump Assy, Windshield Washer[08.1999 - 08.2002] ZZT231 |
85330-20461 |
US $69.45 |
||
|
85310
|
85310
85330-20470
Motor And Pump Assy, Windshield Washer
[08.2002 - 09.2005] ZZT231 W(DISCHARGE HEADLAMP) |
85330-20470 |
— | ||
|
85330
|
85330
85315-20600 Jar Assy, Windshield Washer[08.1999 - 08.2002] ZZT231 |
85315-20600 |
US $96.25 |
||
|
85330
|
85330
85315-20670
Jar Assy, Windshield Washer
[08.2002 - 09.2005] ZZT231 W(DISCHARGE HEADLAMP) |
85315-20670 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[08.1999 - 08.2002] ZZT231 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[08.1999 - 08.2002] ZZT231 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[08.1999 - 08.2002] ZZT231 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[08.1999 - 08.2002] ZZT231 |
85316-42011 |
from US $2.10 |
||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[08.1999 - 08.2002] ZZT231 |
85336-30160 |
US $3.32 |
||
|
85336G
|
85336G
85312-24010
Packing, Windshield Washer Tank
[08.2002 - 09.2005] ZZT231 W(DISCHARGE HEADLAMP) |
85312-24010 |
— | ||
|
85336G
|
85336G
85313-20130
Gage, Water Level
[08.1999 - 08.2002] ZZT231 |
85313-20130 |
— | ||
|
85336J
|
85336J
85336-42050
Protector, Washer Jar
[08.2002 - 09.2005] ZZT231 |
85336-42050 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1999 - 08.2002] ZZT231 |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85348-14390 Joint, Windshield Washer Hose, No.1[08.1999 - 08.2002] ZZT231 |
85348-14390 |
from US $1.40 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1999 - 04.2002] ZZT231 *H,L=630 |
90099-33080 |
from US $6.16 |
||
|
85372
|
85372
90099-33788
Hose, Windshield Washer (From Joint To Joint), No.1
[04.2002 - 06.2002] ZZT231 *H,L=650 |
90099-33788 |
— | ||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1999 - 04.2001] ZZT231 *H,L=605 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1999 - 08.2002] ZZT231 *H,L=60 |
90099-33080 |
from US $6.16 |
||
|
827111A190
|
827111A190
82711-1A190 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A190 |
US $2.88 |
||
|
853892B320
|
853892B320
85389-2B320
Packing, Windshield Washer Hose, No.1
|
85389-2B320 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.66 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9046804189
|
9046804189
90468-04189 New Genuine Part |
90468-04189 |
US $3.49 |
||
|
9095901335
|
9095901335
90959-01335 New Genuine Part |
90959-01335 |
US $2.80 |
||
