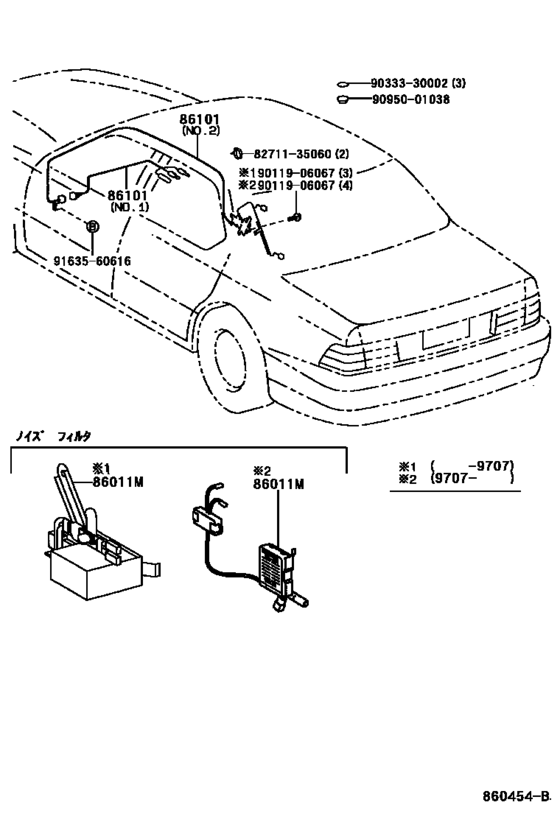

Antenna ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86011M
|
86011M
90980-05312 Filter, Noise[07.1997 -] UCF2# |
90980-05312 |
US $177.63 |
||
|
86101
|
86101
86101-50290 Cord Sub-Assy, Antenna[07.1997 -] UCF2# ＮＯ．１ |
86101-50290 |
US $131.04 |
||
|
86101
|
86101
86101-50300 Cord Sub-Assy, Antenna[07.1997 -] UCF2# ＮＯ．２ |
86101-50300 |
US $304.30 |
||
|
86101
|
86101
86101-50370 Cord Sub-Assy, Antenna[07.1997 - 08.1998] UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),ＮＯ．２ |
86101-50370 |
US $315.95 |
||
|
86101
|
86101
86101-50381 Cord Sub-Assy, Antenna[08.1998 -] UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),ＮＯ．２ |
86101-50381 |
US $315.95 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
from US $3.84 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
