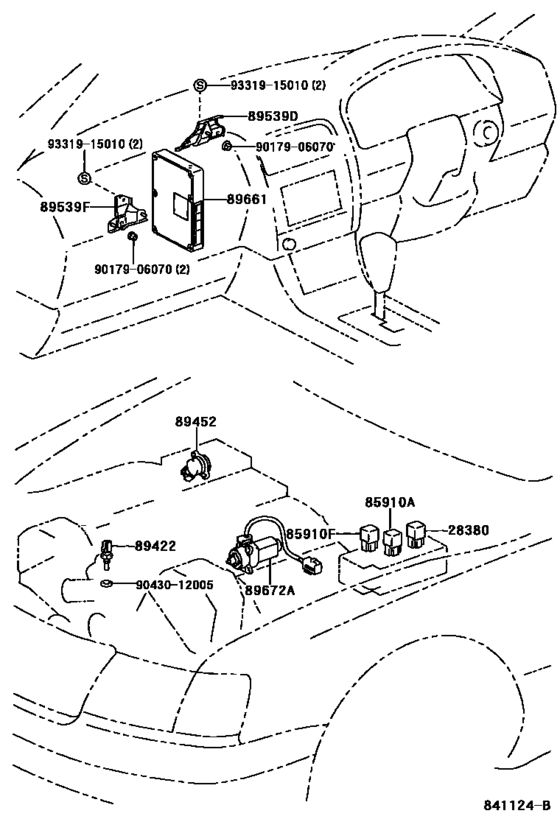

Electronic Fuel Injection System ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[10.1994 -] 1UZFE..UCF2# |
90987-03003 |
from US $24.14 |
||
|
85910A
|
85910A
90987-02009 Relay Assy[10.1994 -] UCF2# |
90987-02009 |
from US $32.51 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[10.1994 -] UCF2# |
90987-02009 |
from US $32.51 |
||
|
89422
|
89422
89422-30030 Sensor, Water Temperature (For E.f.i.)[07.1997 -] UCF2# |
89422-30030 |
from US $47.92 |
||
|
89452
|
89452
89452-30140 Sensor, Throttle Position (For E.f.i.)[07.1997 -] UCF2# |
89452-30140 |
from US $188.10 |
||
|
89539D
|
89539D
89539-50010
Bracket, Computer
[10.1994 -] UCF2# |
89539-50010 |
— | ||
|
89539F
|
89539F
89539-50020 Bracket, Computer[10.1994 -] UCF2# |
89539-50020 |
US $12.23 |
||
|
89661
|
89661
89661-50450
Computer, Engine Control
[07.1997 - 08.1998] UCF2# |
89661-50450 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-50521
Computer, Engine Control
[07.1997 - 08.1998] UCF2# |
89661-50521 |
— | ||
|
89661
|
89661
89661-50520 Computer, Engine Control[08.1998 - 01.1999] UCF2# |
89661-50520 |
US $2,431.52 |
||
| replacement | |||||
|
89661
|
89661
89661-50521
Computer, Engine Control
[08.1998 - 01.1999] UCF2# |
89661-50521 |
— | ||
|
89661
|
89661
89661-50521
Computer, Engine Control
[01.1999 - 11.1999] UCF2# |
89661-50521 |
— | ||
|
89661
|
89661
89661-50522 Computer, Engine Control[11.1999 -] UCF2# |
89661-50522 |
US $2,431.52 |
||
|
89672A
|
89672A
89672-30010
Motor, Throttle Control
[07.1997 -] UCF2# |
89672-30010 |
— | ||
| replacement | |||||
|
89672A
|
89672A
89672-47010 Motor, Throttle Control[07.1997 -] UCF2# |
89672-47010 |
US $320.60 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
