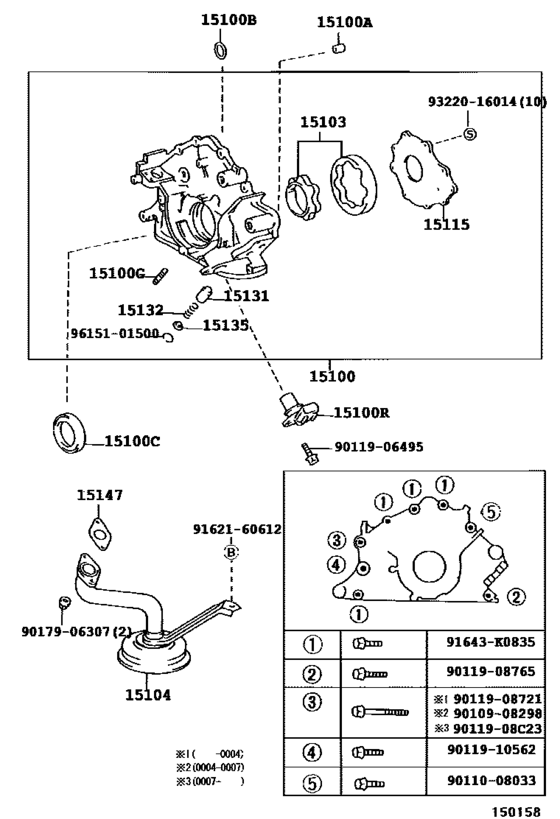

Engine Oil Pump ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-50040 Pump Assy, Oil[07.1997 - 08.2000] 1UZFE..UCF2# |
15100-50040 |
from US $166.32 |
||
|
15100A
|
15100A
90253-13017 Pin, Ring W/head[10.1994 -] 1UZFE..UCF2# |
90253-13017 |
from US $1.62 |
||
|
15100B
|
15100B
96721-24025 Ring, O(For Oil Seal Retainer)[10.1994 - 08.2000] 1UZFE..UCF2# |
96721-24025 |
from US $2.56 |
||
|
15100C
|
15100C
90311-43004
Seal(For Oil Pump)
[10.1994 - 12.1997] 1UZFE..UCF2# |
90311-43004 |
— | ||
| replacement | |||||
|
15100C
|
15100C
90311-43006 Seal(For Oil Pump)[10.1994 - 12.1997] 1UZFE..UCF2# |
90311-43006 |
from US $5.76 |
||
|
15100C
|
15100C
90311-43006 Seal(For Oil Pump)[12.1997 - 08.2000] 1UZFE..UCF2# |
90311-43006 |
from US $5.76 |
||
|
15100G
|
15100G
16193-15010 Bolt,stud(For Oil Pump)[10.1994 - 07.2000] 1UZFE..UCF2# |
16193-15010 |
US $5.76 |
||
|
15100R
|
15100R
90919-05035 Sensor, Crank Position[07.1997 -] 1UZFE..UCF2# |
90919-05035 |
from US $73.84 |
||
|
15103
|
15103
15103-50040 Gear Set, Oil Pump[07.1997 - 03.2000] 1UZFE..UCF2# |
15103-50040 |
US $85.90 |
||
| replacement | |||||
|
15103
|
15103
15103-50041 Gear Set, Oil Pump[07.1997 - 03.2000] 1UZFE..UCF2# |
15103-50041 |
US $58.15 |
||
|
15103
|
15103
15103-50041 Gear Set, Oil Pump[03.2000 - 07.2000] 1UZFE..UCF2# |
15103-50041 |
US $58.15 |
||
|
15104
|
15104
15104-50100
Strainer Sub-Assy, Oil
[07.1997 -] 1UZFE..UCF2# |
15104-50100 |
— | ||
|
15115
|
15115
15115-50040 Cover, Oil Pump[07.1997 - 07.2000] 1UZFE..UCF2# |
15115-50040 |
US $43.53 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.1997 - 07.2000] 1UZFE..UCF2# |
15131-46040 |
from US $3.22 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[07.1997 - 07.2000] 1UZFE..UCF2# |
15132-46020 |
from US $1.44 |
||
|
15135
|
15135
15133-17010 Plug, Oil Pump Relief Valve[07.1997 - 07.2000] 1UZFE..UCF2# |
15133-17010 |
from US $1.79 |
||
|
15147
|
15147
15147-50011 Gasket, Oil Strainer[07.1997 -] 1UZFE..UCF2# |
15147-50011 |
from US $3.59 |
||
|
91643K0835
|
91643K0835
91643-K0835 BOLT WWASHER |
91643-K0835 |
US $1.44 |
||
|
9011908C23
|
9011908C23
90119-08C23 BOLT WWASHER |
90119-08C23 |
US $3.49 |
||
| replacement | |||||
|
9011908C23
|
9011908C23
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9010908298
|
9010908298
90109-08298 New Genuine Part |
90109-08298 |
US $4.51 |
||
|
9011008033
|
9011008033
90110-08033 New Genuine Part |
90110-08033 |
US $1.16 |
||
|
9011906495
|
9011906495
90119-06495 New Genuine Part |
90119-06495 |
US $0.76 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9011908765
|
9011908765
90119-08765 New Genuine Part |
90119-08765 |
US $1.46 |
||
|
9011910562
|
9011910562
90119-10562
New Genuine Part
|
90119-10562 |
— | ||
|
9017906307
|
9017906307
90179-06307 New Genuine Part |
90179-06307 |
US $1.60 |
||
| replacement | |||||
|
9017906307
|
9017906307
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9615101500
|
9615101500
96151-01500 Ring, Hole Snap (For Pressure Regulator Valve Set) |
96151-01500 |
US $2.72 |
||
