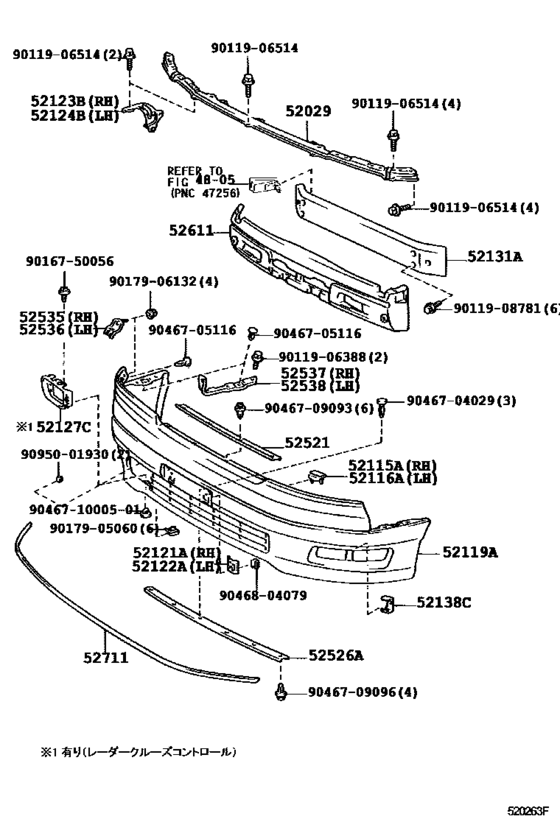

Front Bumper & Bumper Stay ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-50030 Reinforcement Sub-Assy, Front Bumper, Upper[07.1997 -] UCF2# |
52029-50030 |
from US $80.75 |
||
|
52115A
|
52115A
52115-14130 Support, Front Bumper Side, Rh[10.1994 -] UCF2# |
52115-14130 |
US $7.20 |
||
|
52116A
|
52116A
52115-14130 Support, Front Bumper Side, Rh[10.1994 -] UCF2# |
52115-14130 |
US $7.20 |
||
|
52119A
|
52119A
52119-50200-A0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# SU.WHITE/SILVER M.,051 |
52119-50200-A0 |
US $1,747.20 |
||
| replacement | |||||
|
52119A
|
52119A
52119-50918 Cover, Front BumperFRONT BUMPER [07.1997 - 08.2000] UCF2# SU.WHITE/SILVER M.,051 |
52119-50918 |
US $1,054.14 |
||
|
52119A
|
52119A
52119-50200-B1 Cover, Front Bumper[07.1997 - 08.2000] UCF2# SILVER ME./GRAY,199 |
52119-50200-B1 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-C0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# BLACK/D.GRAY M.,202 |
52119-50200-C0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-D0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ROSE RED/DK.ROSE RED,3M9 |
52119-50200-D0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-G2 Cover, Front Bumper[07.1997 - 08.2000] UCF2# DK.GREEN/DK.GREEN,6N9 |
52119-50200-G2 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-G3 Cover, Front Bumper[07.1997 - 08.2000] UCF2# DK.GREEN/DK.GREEN,6Q7 |
52119-50200-G3 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-G4 Cover, Front Bumper[07.1997 - 08.1999] UCF2# LT.GREEN/GREEN,6P7 |
52119-50200-G4 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-J0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# DK.BLUE/MD.BLUE,8L4 |
52119-50200-J0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50200-K0 Cover, Front Bumper[07.1997 - 08.1999] UCF2# AMETHYST ME./ROSE,941 |
52119-50200-K0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-A0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),SU.WHITE/SILVER M.,051 |
52119-50210-A0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-B1 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),SILVER ME./GRAY,199 |
52119-50210-B1 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-C0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),BLACK,202 |
52119-50210-C0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-D0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),ROSE RED/DK.ROSE RED,3M9 |
52119-50210-D0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-G2 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),DK.GREEN/DK.GREEN MC,6N9 |
52119-50210-G2 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-G3 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),DK.GREEN/DK.GREEN,6Q7 |
52119-50210-G3 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-G4 Cover, Front Bumper[07.1997 - 08.1999] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),LT.GREEN/GREEN,6P7 |
52119-50210-G4 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-J0 Cover, Front Bumper[07.1997 - 08.2000] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),DK.BLUE/MEDIUM BLUE,8L4 |
52119-50210-J0 |
US $1,747.20 |
||
|
52119A
|
52119A
52119-50210-K0 Cover, Front Bumper[07.1997 - 08.1999] UCF2# ｱﾘ(ﾚｰｻﾞｰ ﾚｰﾀﾞｰ ｾﾝｻｰ),AMETHYST ME./ROSE,941 |
52119-50210-K0 |
US $1,747.20 |
||
|
52121A
|
52121A
52121-14090 Bracket, Front License Plate Mounting, Rh[10.1994 -] UCF2# |
52121-14090 |
US $6.29 |
||
|
52122A
|
52122A
52122-14010 Bracket, Front License Plate Mounting, Lh[10.1994 -] UCF2# |
52122-14010 |
US $6.29 |
||
|
52123B
|
52123B
52123-50040 Plate, Front Bumper Reinforcement, Rh[07.1997 -] UCF2# |
52123-50040 |
from US $14.56 |
||
|
52124B
|
52124B
52124-50020
Plate, Front Bumper Reinforcement, Lh
[07.1997 -] UCF2# |
52124-50020 |
— | ||
|
52127C
|
52127C
52127-50020-A0 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# DARK GREEN,6Q7 |
52127-50020-A0 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-B0 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# MEDIUM BLUE,8L4 |
52127-50020-B0 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-C0 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# SILVER M.,051 |
52127-50020-C0 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-C1 Cover, Front Bumper Hole[07.1997 - 08.1999] UCF2# ROSE,941 |
52127-50020-C1 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-D0 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# DK. GRAY M.,202 ,6N9 |
52127-50020-D0 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-H0 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# DARK ROSE RED,3M9 |
52127-50020-H0 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-H1 Cover, Front Bumper Hole[07.1997 - 08.2000] UCF2# GRAY ME.,199 |
52127-50020-H1 |
US $33.05 |
||
|
52127C
|
52127C
52127-50020-K0 Cover, Front Bumper Hole[07.1997 - 08.1999] UCF2# MEDIUM GREEN,6P7 |
52127-50020-K0 |
US $33.05 |
||
|
52131A
|
52131A
52131-50030 Reinforcement, Front Bumper[07.1997 -] UCF2# |
52131-50030 |
from US $168 |
||
|
52138C
|
52138C
52138-50010 Bracket, Front Bumper Arm Mounting, No.4[07.1997 -] UCF2# |
52138-50010 |
from US $8.59 |
||
|
52521
|
52521
52521-50020 Retainer, Front Bumper, Upper Center[10.1994 -] UCF2# |
52521-50020 |
US $32.68 |
||
|
52526A
|
52526A
52526-50030
Retainer, Front Bumper, Lower No.1
[07.1997 -] UCF2# |
52526-50030 |
— | ||
|
52535
|
52535
52535-50030
Retainer, Front Bumper Side, Rh
[07.1997 -] UCF2# |
52535-50030 |
— | ||
|
52536
|
52536
52536-50030
Retainer, Front Bumper Side, Lh
[07.1997 -] UCF2# |
52536-50030 |
— | ||
|
52537
|
52537
52537-50030 Retainer, Front Bumper End, Rh[07.1997 -] UCF2# |
52537-50030 |
US $8.78 |
||
|
52538
|
52538
52538-50020 Retainer, Front Bumper End, Lh[07.1997 -] UCF2# |
52538-50020 |
US $8.78 |
||
|
52611
|
52611
52611-50030
Absorber, Front Bumper Energy
[07.1997 -] UCF2# |
52611-50030 |
— | ||
|
52711
|
52711
52711-50030 Moulding, Front Bumper[07.1997 -] UCF2# |
52711-50030 |
from US $142.08 |
||
|
9011906388
|
9011906388
90119-06388
BOLT
|
90119-06388 |
— | ||
| replacement | |||||
|
9011906388
|
9011906388
90119-06492 BOLT |
90119-06492 |
from US $0.84 |
||
|
9011906514
|
9011906514
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.60 |
||
|
9011908781
|
9011908781
90119-08781 New Genuine Part |
90119-08781 |
US $3.20 |
||
|
9016750056
|
9016750056
90167-50056 SCREW PAN TAPPING |
90167-50056 |
US $0.87 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.78 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046704029
|
9046704029
90467-04029 New Genuine Part |
90467-04029 |
US $1.28 |
||
|
9046705116
|
9046705116
90467-05116 CLIP |
90467-05116 |
from US $1.60 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $2.57 |
||
|
9046709096
|
9046709096
90467-09096 CLIP |
90467-09096 |
from US $1.85 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
from US $2.56 |
||
|
9095001930
|
9095001930
90950-01930 New Genuine Part |
90950-01930 |
US $1.60 |
||
|
904671000501
|
904671000501
90467-10005-01 Clip(For Front Fender Apron Seal) |
90467-10005-01 |
US $3.36 |
||
