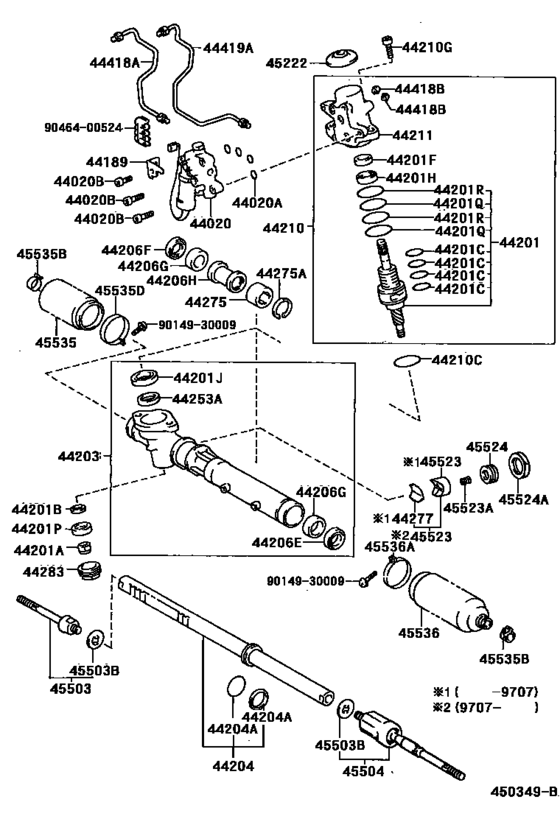

Front Steering Gear & Link ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020
|
44020
44020-40030 Valve Assy, Pressure Control W/solenoid Valve[07.1997 - 08.2000] UCF2# |
44020-40030 |
US $444.08 |
||
|
44020A
|
44020A
90301-11009 Ring, O (For Front Power Take-Off Shaft)[04.1997 - 08.2000] UCF2# |
90301-11009 |
from US $1.93 |
||
|
44020B
|
44020B
90110-08012 Bolt(For Power Steering Pressure Control Valve)[07.1997 - 08.2000] UCF2# ＊８−１．２５ＰＸ２９−２６ |
90110-08012 |
US $0.96 |
||
|
44201
|
44201
44201-50130 Valve Sub-Assy, Power Steering Control[07.1997 - 08.2000] UCF2# ER ﾊﾞ-ｼﾞﾖﾝ |
44201-50130 |
US $294.11 |
||
|
44201
|
44201
44201-50140 Valve Sub-Assy, Power Steering Control[07.1997 - 08.2000] UCF20 |
44201-50140 |
US $294.11 |
||
|
44201A
|
44201A
94184-61200 Nut, Lock(For Power Steering Control Valve)[10.1994 - 09.1999] UCF2# |
94184-61200 |
from US $1.13 |
||
|
44201A
|
44201A
94184-61201 Nut, Lock(For Power Steering Control Valve)[09.1999 - 08.2000] UCF2# |
94184-61201 |
US $1.76 |
||
|
44201B
|
44201B
90560-12030 Spacer(For Power Steering Control Valve)[10.1994 - 08.2000] UCF2# |
90560-12030 |
US $4.37 |
||
|
44201C
|
44201C
90562-33008 Ring(For Power Steering Control Valve)[04.1997 - 08.2000] UCF2# |
90562-33008 |
from US $1.92 |
||
|
44201F
|
44201F
90311-19014 Seal, Oil(For Power Steering Control Valve)[12.1996 - 08.2000] UCF2# |
90311-19014 |
US $2.77 |
||
| replacement | |||||
|
44201F
|
44201F
90311-19016 Seal, Oil(For Power Steering Control Valve)[12.1996 - 08.2000] UCF2# |
90311-19016 |
from US $3.04 |
||
|
44201H
|
44201H
90363-19002 Bearing(For Power Steering Control Valve)[10.1994 - 08.2000] UCF2# |
90363-19002 |
US $21.67 |
||
|
44201J
|
44201J
90363-30054 Bearing(For Power Steering Control Valve Center)[10.1994 - 08.2000] UCF2# |
90363-30054 |
US $21.14 |
||
|
44201P
|
44201P
90363-12014 Bearing(For Power Steering Control Valve Lower)[08.1996 - 08.2000] UCF2# |
90363-12014 |
from US $11.01 |
||
|
44201Q
|
44201Q
90301-45002 Ring(For Power Steering Control Valve)[10.1994 - 08.2000] UCF2# |
90301-45002 |
US $4.32 |
||
|
44201R
|
44201R
90562-50001 Ring(For Power Steering Control Valve)[10.1994 - 08.2000] UCF2# |
90562-50001 |
US $2.24 |
||
|
44203
|
44203
44203-40010 Housing Sub-Assy, Power Steering Rack[04.1997 - 08.2000] UCF2# |
44203-40010 |
US $413.50 |
||
|
44204
|
44204
44204-40010 Rack Sub-Assy, Power Steering[04.1997 - 09.1999] UCF2# |
44204-40010 |
US $243.15 |
||
| replacement | |||||
|
44204
|
44204
44204-50050 Rack Sub-Assy, Power Steering[04.1997 - 09.1999] UCF2# |
44204-50050 |
US $283.05 |
||
|
44204
|
44204
44204-50050 Rack Sub-Assy, Power Steering[09.1999 - 08.2000] UCF2# |
44204-50050 |
US $283.05 |
||
|
44204A
|
44204A
90301-36004 Ring(For Rack Steering Piston)[07.1997 - 08.2000] UCF2# |
90301-36004 |
from US $3.84 |
||
|
44206E
|
44206E
90310-26021 Seal, Oil, No.1(For Power Steering Cylinder Tube)[11.1996 - 08.1998] UCF2# ＮＯＫ |
90310-26021 |
from US $3.04 |
||
|
44206E
|
44206E
90310-26022 Seal, Oil, No.1(For Power Steering Cylinder Tube)[11.1996 - 08.1998] UCF2# ＫＯＹＯ |
90310-26022 |
US $2.77 |
||
| replacement | |||||
|
44206E
|
44206E
90310-26021 Seal, Oil, No.1(For Power Steering Cylinder Tube)[11.1996 - 08.1998] UCF2# ＫＯＹＯ |
90310-26021 |
from US $3.04 |
||
|
44206F
|
44206F
90310-30013 Seal, Oil, No.2(For Power Steering Cylinder Tube)[07.1997 - 08.2000] UCF2# |
90310-30013 |
from US $3.04 |
||
|
44206G
|
44206G
90560-40008 Ring(For Rack Steering Piston)[07.1997 - 08.2000] UCF2# |
90560-40008 |
US $1.02 |
||
|
44206H
|
44206H
90561-28009
Spacer, No.1(For Power Steering Cylinder Tube)
[09.1999 - 08.2000] UCF2# |
90561-28009 |
— | ||
|
44206H
|
44206H
90561-29002
Spacer, No.1(For Power Steering Cylinder Tube)
[10.1994 - 09.1999] UCF2# |
90561-29002 |
— | ||
| replacement | |||||
|
44206H
|
44206H
90561-28009
Spacer, No.1(For Power Steering Cylinder Tube)
[10.1994 - 09.1999] UCF2# |
90561-28009 |
— | ||
|
44210
|
44210
44210-50130 Valve Assy, Power Steering Control[07.1997 - 08.2000] UCF2# |
44210-50130 |
US $563.47 |
||
|
44210
|
44210
44210-50140 Valve Assy, Power Steering Control[07.1997 - 08.2000] UCF20 ER ﾊﾞ-ｼﾞﾖﾝ |
44210-50140 |
US $563.47 |
||
|
44210C
|
44210C
90301-57003 Ring, O(For Power Steering Control Valve)[10.1994 - 08.2000] UCF2# |
90301-57003 |
from US $2.54 |
||
|
44210G
|
44210G
90110-08012 Bolt(For Power Steering Pressure Control Valve)[10.1994 - 08.2000] UCF2# |
90110-08012 |
US $0.96 |
||
|
44211
|
44211
44211-40020 Housing, Control Valve[04.1997 - 08.2000] UCF2# |
44211-40020 |
US $132.50 |
||
|
44275
|
44275
44275-24020 Stopper, Cylinder End[10.1994 - 08.2000] UCF2# |
44275-24020 |
from US $17.26 |
||
|
44275A
|
44275A
90521-53002 Ring, Hole Snap(For Cylinder End Stopper)[10.1994 - 08.2000] UCF2# |
90521-53002 |
US $3.68 |
||
|
44283
|
44283
44283-12010 Cap, Power Steering Rack Housing[10.1994 - 08.2000] UCF2# |
44283-12010 |
US $10.83 |
||
|
44418A
|
44418A
44418-50051 Tube, Steering Right Turn Pressure[07.1997 - 01.1998] UCF2# |
44418-50051 |
US $15.87 |
||
| replacements | |||||
|
44418A
|
44418A
44418-50052 Tube, Steering Right Turn Pressure[07.1997 - 01.1998] UCF2# |
44418-50052 |
US $10.77 |
||
|
44418A
|
44418A
44419-50052 Tube, Steering Left Turn Pressure[07.1997 - 01.1998] UCF2# |
44419-50052 |
US $16.02 |
||
|
44418A
|
44418A
44418-50052 Tube, Steering Right Turn Pressure[01.1998 - 08.2000] UCF2# |
44418-50052 |
US $10.77 |
||
|
44418B
|
44418B
96390-71200 Seat, Union(For Steering Turn Pressure Tube)[10.1994 - 08.2000] UCF2# |
96390-71200 |
US $1.60 |
||
|
44419A
|
44419A
44419-50051 Tube, Steering Left Turn Pressure[07.1997 - 01.1998] UCF2# |
44419-50051 |
US $23.30 |
||
| replacements | |||||
|
44419A
|
44419A
44418-50052 Tube, Steering Right Turn Pressure[07.1997 - 01.1998] UCF2# |
44418-50052 |
US $10.77 |
||
|
44419A
|
44419A
44419-50052 Tube, Steering Left Turn Pressure[07.1997 - 01.1998] UCF2# |
44419-50052 |
US $16.02 |
||
|
44419A
|
44419A
44419-50052 Tube, Steering Left Turn Pressure[01.1998 - 08.2000] UCF2# |
44419-50052 |
US $16.02 |
||
|
45222
|
45222
45222-50010 Cover, Steering Gear Dust[10.1994 - 08.2000] UCF2# |
45222-50010 |
US $6.84 |
||
|
45503
|
45503
45503-39095 End Sub-Assy, Steering Rack[10.1995 - 08.2000] UCF2# |
45503-39095 |
from US $91.76 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[10.1994 - 08.2000] UCF2# 外径＝３８ |
90214-14007 |
from US $1.46 |
||
|
45504
|
45504
45504-59025 End Sub-Assy, Steering Rack, No.2[10.1994 - 08.2000] UCF2# |
45504-59025 |
from US $112.48 |
||
|
45523
|
45523
45053-50010
Guide, Rack(For Steering Gear)
[07.1997 - 08.2000] UCF2# |
45053-50010 |
— | ||
|
45523A
|
45523A
90501-26080 Spring(For Power Steering Rack Guide)[07.1997 - 08.2000] UCF2# |
90501-26080 |
US $1.49 |
||
|
45524
|
45524
45524-50010 Cap, Rack Housing[10.1994 - 08.2000] UCF2# |
45524-50010 |
US $8.74 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[10.1994 - 08.2000] UCF2# |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-22080 Boot, Steering Rack, No.1[10.1994 - 08.2000] UCF2# |
45535-22080 |
from US $14.51 |
||
|
45535B
|
45535B
90467-19019 Clip[05.1996 - 08.2000] UCF2# |
90467-19019 |
from US $4.25 |
||
|
45535D
|
45535D
90460-49002 Clamp(For Power Steering Rack Boot)[10.1994 - 08.2000] UCF2# |
90460-49002 |
US $4.80 |
||
|
45536
|
45536
45535-24040 Boot, Steering Rack, No.2[10.1994 - 08.2000] UCF2# |
45535-24040 |
from US $19.46 |
||
|
45536A
|
45536A
90460-54003 Clamp(For Steering Rack Boot No.2)[10.1994 - 08.2000] UCF2# |
90460-54003 |
US $6.40 |
||
|
9014930009
|
9014930009
90149-30009 Screw(For Steering Rack Boot Clamp) |
90149-30009 |
US $1.76 |
||
|
9046400524
|
9046400524
90464-00524 Clamp, Solenoid Valve Terminal |
90464-00524 |
US $1.89 |
||
