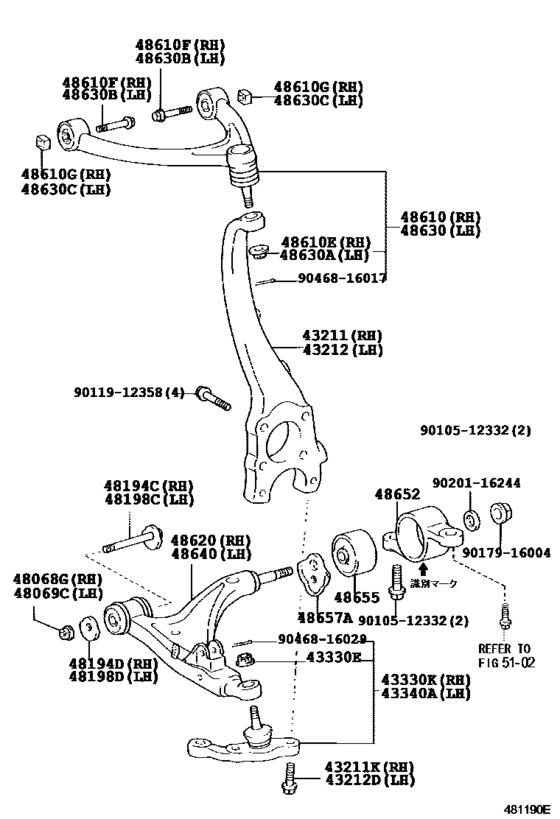

Front Axle Arm & Steering Knuckle ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43201-50010
Knuckle, Steering, Rh
[08.2000 - 01.2003] UCF3# |
43201-50010 |
— | ||
| replacement | |||||
|
43211
|
43211
43201-50020 Knuckle, Steering, Rh[08.2000 - 01.2003] UCF3# |
43201-50020 |
US $258.59 |
||
|
43211
|
43211
43201-50020 Knuckle, Steering, Rh[01.2003 - 07.2003] UCF3# |
43201-50020 |
US $258.59 |
||
|
43211K
|
43211K
90105-16083 Bolt[08.2000 - 07.2003] UCF3# 外径＝１６ |
90105-16083 |
US $4.96 |
||
|
43212
|
43212
43202-50010 Knuckle, Steering, Lh[08.2000 - 01.2003] UCF3# |
43202-50010 |
US $266.45 |
||
| replacement | |||||
|
43212
|
43212
43202-50020 Knuckle, Steering, Lh[08.2000 - 01.2003] UCF3# |
43202-50020 |
US $248.88 |
||
|
43212
|
43212
43202-50020 Knuckle, Steering, Lh[01.2003 - 07.2003] UCF3# |
43202-50020 |
US $248.88 |
||
|
43212D
|
43212D
90105-16083 Bolt[08.2000 - 07.2003] UCF3# 外径＝１６ |
90105-16083 |
US $4.96 |
||
|
43330E
|
43330E
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[08.2000 - 07.2003] UCF3# |
90171-14011 |
from US $1.25 |
||
|
43330K
|
43330K
43330-59075
Joint Assy, Lower Ball, Front Rh
[08.2000 - 07.2003] UCF3# |
43330-59075 |
— | ||
| replacement | |||||
|
43330K
|
43330K
43330-59115 Joint Assy, Lower Ball, Front Rh[08.2000 - 07.2003] UCF3# |
43330-59115 |
US $103.60 |
||
|
43340A
|
43340A
43340-59075
Joint Assy, Lower Ball, Front Lh
[08.2000 - 07.2003] UCF3# |
43340-59075 |
— | ||
| replacement | |||||
|
43340A
|
43340A
43340-59115 Joint Assy, Lower Ball, Front Lh[08.2000 - 07.2003] UCF3# |
43340-59115 |
US $103.60 |
||
|
48068G
|
48068G
90179-14019 Nut[08.2000 - 07.2003] UCF3# |
90179-14019 |
from US $1.40 |
||
|
48069C
|
48069C
90179-14019 Nut[08.2000 - 07.2003] UCF3# |
90179-14019 |
from US $1.40 |
||
|
48194C
|
48194C
48190-50050 Cam, Front Suspension Camber Adjust, No.1 Rh[08.2000 - 07.2003] UCF3# |
48190-50050 |
from US $9.13 |
||
|
48194D
|
48194D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[08.2000 - 07.2003] UCF3# |
48198-30060 |
from US $10.72 |
||
|
48198C
|
48198C
48190-50050 Cam, Front Suspension Camber Adjust, No.1 Rh[08.2000 - 07.2003] UCF3# |
48190-50050 |
from US $9.13 |
||
|
48198D
|
48198D
48198-30060 Cam, Front Suspension Camber Adjust, No.2[08.2000 - 07.2003] UCF3# |
48198-30060 |
from US $10.72 |
||
|
48610
|
48610
48610-59035 Arm Assy, Front Suspension Upper, Rh[08.2000 - 07.2003] UCF3# |
48610-59035 |
from US $376.60 |
||
|
48610
|
48610
48610-59045 Arm Assy, Front Suspension Upper, Rh[08.2000 - 07.2003] UCF30 ER ﾊﾞ-ｼﾞﾖﾝ |
48610-59045 |
US $376.60 |
||
|
48610E
|
48610E
90171-12012 Nut, Castle(For Tie Rod End)[08.2000 - 07.2003] UCF3# |
90171-12012 |
from US $1.52 |
||
|
48610F
|
48610F
90119-10853 Bolt(For Suspension Upper Arm)[08.2000 - 07.2003] UCF3# |
90119-10853 |
US $4.16 |
||
|
48610G
|
48610G
90173-10012 Nut(For Suspension Upper Arm)[08.2000 - 07.2003] UCF3# |
90173-10012 |
US $1.60 |
||
|
48620
|
48620
48620-50050 Arm Assy, Front Suspension, Lower Rh[08.2000 - 07.2003] UCF3# |
48620-50050 |
from US $276.48 |
||
|
48630
|
48630
48630-59035 Arm Assy, Front Suspension, Upper Lh[08.2000 - 07.2003] UCF3# |
48630-59035 |
from US $376.60 |
||
|
48630
|
48630
48630-59045 Arm Assy, Front Suspension, Upper Lh[08.2000 - 07.2003] UCF30 ER ﾊﾞ-ｼﾞﾖﾝ |
48630-59045 |
US $376.60 |
||
|
48630A
|
48630A
90171-12012 Nut, Castle(For Tie Rod End)[08.2000 - 07.2003] UCF3# |
90171-12012 |
from US $1.52 |
||
|
48630B
|
48630B
90119-10853 Bolt(For Suspension Upper Arm)[08.2000 - 07.2003] UCF3# |
90119-10853 |
US $4.16 |
||
|
48630C
|
48630C
90173-10012 Nut(For Suspension Upper Arm)[08.2000 - 07.2003] UCF3# |
90173-10012 |
US $1.60 |
||
|
48640
|
48640
48640-50050 Arm Assy, Front Suspension Lower, Lh[08.2000 - 07.2003] UCF3# |
48640-50050 |
from US $276.48 |
||
|
48652
|
48652
48652-50030 Bracket, Front Lower Arm[08.2000 - 07.2003] UCF3# ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,マーク無し |
48652-50030 |
US $75.48 |
||
|
48652
|
48652
48652-50040 Bracket, Front Lower Arm[08.2000 - 07.2003] UCF3# ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,ホワイト マーク |
48652-50040 |
US $67.70 |
||
|
48652
|
48652
48652-50050 Bracket, Front Lower Arm[08.2000 - 07.2003] UCF3# ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,ピンク マーク |
48652-50050 |
US $65.87 |
||
|
48655
|
48655
48655-50010 Bush, Lower Arm, No.2[08.2000 - 11.2000] UCF3# |
48655-50010 |
US $52.12 |
||
| replacement | |||||
|
48655
|
48655
48655-50012 Bush, Lower Arm, No.2[08.2000 - 11.2000] UCF3# |
48655-50012 |
from US $58.82 |
||
|
48655
|
48655
48655-50011
Bush, Lower Arm, No.2
[11.2000 - 07.2003] UCF3# |
48655-50011 |
— | ||
| replacement | |||||
|
48655
|
48655
48655-50012 Bush, Lower Arm, No.2[11.2000 - 07.2003] UCF3# |
48655-50012 |
from US $58.82 |
||
|
48657A
|
48657A
48657-50010 Stopper, Front Lower Arm Bush[08.2000 - 07.2003] UCF3# |
48657-50010 |
US $13.60 |
||
|
9010512332
|
9010512332
90105-12332 Bolt (For Rear Axle Bearing Case Rh) |
90105-12332 |
from US $1.74 |
||
|
9011912358
|
9011912358
90119-12358 BOLT WWASHER |
90119-12358 |
from US $1.58 |
||
|
9017916004
|
9017916004
90179-16004 Nut(For Front Suspension Lower Arm) |
90179-16004 |
US $4.16 |
||
|
9020116244
|
9020116244
90201-16244 Washer, Plate (For Rear Drive Pinion) |
90201-16244 |
US $1.76 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
