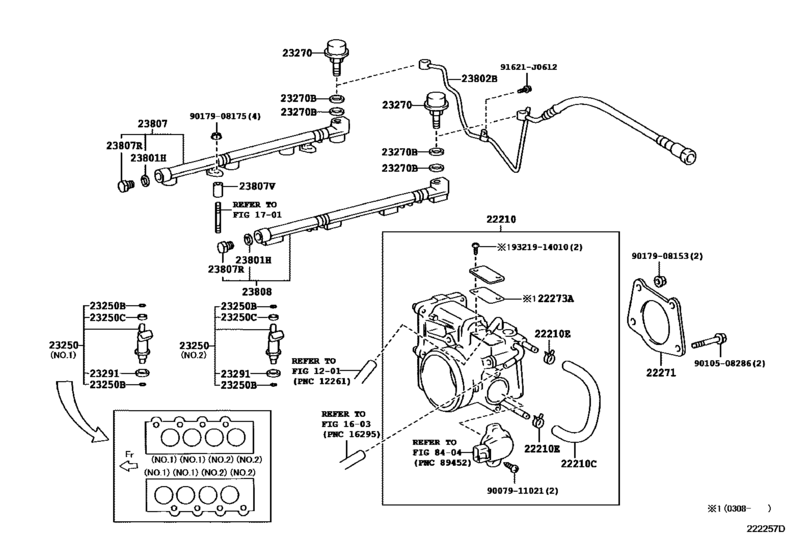

Fuel Injection System ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-50160 Body Assy, Throttle[08.2000 - 07.2003] 3UZFE..UCF3# |
22030-50160 |
from US $1,136.96 |
||
|
22210C
|
22210C
99556-10300 Hose, Turbo Water, No.1[08.2000 - 07.2003] 3UZFE..UCF3# ＊Ｈ，Ｌ＝２１０ |
99556-10300 |
US $6.08 |
||
|
22210E
|
22210E
90467-13059
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.2000 - 07.2003] 3UZFE..UCF3# |
90467-13059 |
— | ||
| replacement | |||||
|
22210E
|
22210E
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.2000 - 07.2003] 3UZFE..UCF3# |
90467-13054 |
from US $0.92 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[08.2000 - 07.2003] 3UZFE..UCF3# |
22271-50042 |
US $34.81 |
||
|
23250
|
23250
23209-50030 Injector Assy, Fuel[08.2000 - 07.2003] 3UZFE..UCF3# ＮＯ．１ |
23209-50030 |
from US $208.61 |
||
|
23250
|
23250
23209-50050 Injector Assy, Fuel[08.2000 - 07.2003] 3UZFE..UCF3# ＮＯ．２ |
23209-50050 |
from US $172.59 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[08.2000 - 07.2003] 3UZFE..UCF3# |
90301-07024 |
from US $2.65 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.2000 - 07.2003] 3UZFE..UCF3# |
90480-13005 |
from US $2.46 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[08.2000 - 07.2003] 3UZFE..UCF3# |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[08.2000 - 07.2003] 3UZFE..UCF3# |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.2000 - 07.2003] 3UZFE..UCF3# ダンパ サイド |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12026 Gasket[08.2000 - 07.2003] 3UZFE..UCF3# デリバリパイプ側 |
90430-12026 |
from US $0.88 |
||
|
23291
|
23291
23291-20010 Insulator, Injector Vibration[08.2000 - 07.2003] 3UZFE..UCF3# |
23291-20010 |
from US $2.62 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[08.2000 - 07.2003] 3UZFE..UCF3# |
90430-14008 |
from US $0.94 |
||
|
23802B
|
23802B
23802-50060 Pipe Sub-Assy, Fuel, No.2[08.2000 - 07.2003] 3UZFE..UCF3# |
23802-50060 |
US $116.48 |
||
|
23807
|
23807
23807-50030 Pipe Sub-Assy, Fuel Delivery[08.2000 - 06.2003] 3UZFE..UCF3# |
23807-50030 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50031 Pipe Sub-Assy, Fuel Delivery[08.2000 - 06.2003] 3UZFE..UCF3# |
23807-50031 |
US $116.48 |
||
|
23807
|
23807
23807-50031 Pipe Sub-Assy, Fuel Delivery[06.2003 - 07.2003] 3UZFE..UCF3# |
23807-50031 |
US $116.48 |
||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[08.2000 - 07.2003] 3UZFE..UCF3# |
90341-14032 |
US $2.53 |
||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[08.2000 - 07.2003] 3UZFE..UCF3# |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50020 Pipe Sub-Assy, Fuel Delivery, No.2[08.2000 - 06.2003] 3UZFE..UCF3# |
23808-50020 |
US $163.07 |
||
| replacement | |||||
|
23808
|
23808
23808-50021 Pipe Sub-Assy, Fuel Delivery, No.2[08.2000 - 06.2003] 3UZFE..UCF3# |
23808-50021 |
US $112.11 |
||
|
23808
|
23808
23808-50021 Pipe Sub-Assy, Fuel Delivery, No.2[06.2003 - 07.2003] 3UZFE..UCF3# |
23808-50021 |
US $112.11 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.16 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9321914010
|
9321914010
93219-14010 Screw |
93219-14010 |
US $1.12 |
||
