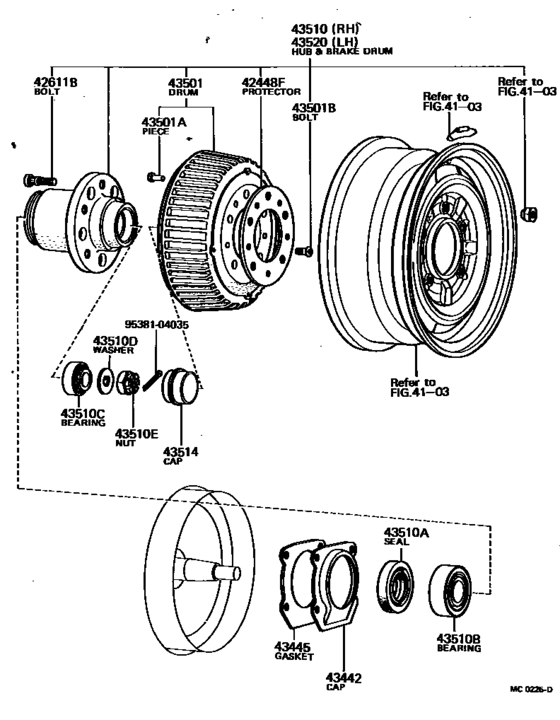

Front Axle Hub ([11.1967 - 02.1973] (6711-7302)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42448F
|
42448F
42448-40010
Protector, Rear Brake Drum
[11.1967 - 02.1973] VG20 |
42448-40010 |
— | ||
|
42611B
|
42611B
90942-02017 Bolt, Hub (For Front Axle)HUB (FOR FRONT AXLE) [11.1967 - 02.1973] VG20 |
90942-02017 |
US $5.24 |
||
| replacement | |||||
|
42611B
|
42611B
90942-02049 Bolt, Hub[11.1967 - 02.1973] VG20 |
90942-02049 |
US $3.84 |
||
|
43442
|
43442
43442-40010
Cap, Knuckle Grease Retainer, Inner
[11.1967 - 02.1973] VG20 |
43442-40010 |
— | ||
|
43445
|
43445
43445-30010
Gasket, Knuckle Grease Retainer Cap
[11.1967 - 02.1973] VG20 |
43445-30010 |
— | ||
|
43501
|
43501
43512-40011
Drum Sub-Assy, Front Brake
[11.1967 - 08.1969] VG20 |
43512-40011 |
— | ||
| replacement | |||||
|
43501
|
43501
43512-40014
Drum Sub-Assy, Front Brake
[11.1967 - 08.1969] VG20 |
43512-40014 |
— | ||
|
43501
|
43501
43512-40012
Drum Sub-Assy, Front Brake
[08.1969 - 08.1971] VG20 |
43512-40012 |
— | ||
| replacement | |||||
|
43501
|
43501
43512-40014
Drum Sub-Assy, Front Brake
[08.1969 - 08.1971] VG20 |
43512-40014 |
— | ||
|
43501
|
43501
43512-40013 Drum Sub-Assy, Front Brake[08.1971 - 06.1972] VG20 |
43512-40013 |
US $208.21 |
||
| replacement | |||||
|
43501
|
43501
43512-40014
Drum Sub-Assy, Front Brake
[08.1971 - 06.1972] VG20 |
43512-40014 |
— | ||
|
43501
|
43501
43512-40014
Drum Sub-Assy, Front Brake
[06.1972 - 02.1973] VG20 |
43512-40014 |
— | ||
|
43501A
|
43501A
90937-01025 Piece, Balance (For Rear Brake Drum)BALANCE (FOR REAR BRAKE DRUM) [08.1969 - 10.1969] VG20 12G |
90937-01025 |
US $3.20 |
||
|
43501A
|
43501A
90937-01101
Piece, Balance (For Rear Brake Drum)
[03.1968 - 10.1969] VG20 21G |
90937-01101 |
— | ||
|
43501A
|
43501A
90937-01102
Piece, Balance (For Rear Brake Drum)
[03.1968 - 08.1969] VG20 12G |
90937-01102 |
— | ||
|
43501A
|
43501A
90937-01111 Piece, Balance (For Rear Brake Drum)[10.1969 - 02.1973] VG20 14.3G |
90937-01111 |
US $4.08 |
||
| replacement | |||||
|
43501A
|
43501A
90937-01101
Piece, Balance (For Rear Brake Drum)
[10.1969 - 02.1973] VG20 14.3G |
90937-01101 |
— | ||
|
43501A
|
43501A
90937-01112 Piece, Balance (For Rear Brake Drum)[10.1969 - 02.1973] VG20 28.5G |
90937-01112 |
US $4.08 |
||
| replacement | |||||
|
43501A
|
43501A
90937-01101
Piece, Balance (For Rear Brake Drum)
[10.1969 - 02.1973] VG20 28.5G |
90937-01101 |
— | ||
|
43501A
|
43501A
90937-01113 Piece, Balance (For Rear Brake Drum)[10.1969 - 02.1973] VG20 43.0G |
90937-01113 |
US $4.08 |
||
| replacement | |||||
|
43501A
|
43501A
90937-01101
Piece, Balance (For Rear Brake Drum)
[10.1969 - 02.1973] VG20 43.0G |
90937-01101 |
— | ||
|
43501B
|
43501B
90113-10035 Bolt, Set (For Rear Brake Drum Setting)[11.1967 - 02.1973] VG20 |
90113-10035 |
US $1.76 |
||
|
43510
|
43510
43510-40021
Hub And Brake Drum Assy, Front Axle, Rh
[11.1967 - 08.1969] VG20 DRUM BRAKE |
43510-40021 |
— | ||
| replacement | |||||
|
43510
|
43510
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[11.1967 - 08.1969] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
43510
|
43510
43510-40022
Hub And Brake Drum Assy, Front Axle, Rh
[08.1969 - 10.1969] VG20 DRUM BRAKE |
43510-40022 |
— | ||
| replacement | |||||
|
43510
|
43510
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[08.1969 - 10.1969] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
43510
|
43510
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[10.1969 - 02.1973] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
43510A
|
43510A
90310-48023 Seal, Oil (For Front Axle Hub)[11.1967 - 02.1973] VG20 |
90310-48023 |
US $6.12 |
||
| replacement | |||||
|
43510A
|
43510A
90311-48001 Seal, Oil (For Axle Shaft)[11.1967 - 02.1973] VG20 |
90311-48001 |
from US $7.84 |
||
|
43510B
|
43510B
90368-31005
Bearing(For Rear Differential Case)
[11.1967 - 02.1973] VG20 |
90368-31005 |
— | ||
|
43510C
|
43510C
90368-19004
Bearing, Tapered Roller (For Front Axle Outer Bearing)
[11.1967 - 02.1973] VG20 |
90368-19004 |
— | ||
|
43510D
|
43510D
90214-20005 Washer, Claw (For Axle Shaft)[11.1967 - 02.1973] VG20 |
90214-20005 |
from US $1.50 |
||
|
43510E
|
43510E
90171-19026 Nut (For Steering Knuckle)[11.1967 - 08.1969] VG20 |
90171-19026 |
US $4.08 |
||
| replacement | |||||
|
43510E
|
43510E
90171-19037 Nut (For Steering Knuckle)[11.1967 - 08.1969] VG20 |
90171-19037 |
US $4.08 |
||
|
43510E
|
43510E
90171-19037 Nut (For Steering Knuckle)[08.1969 - 09.1982] VG2#,3# ISO |
90171-19037 |
US $4.08 |
||
|
43514
|
43514
43514-30010 Cap, Front Hub GreaseFRONT HUB GREASE [11.1967 - 02.1973] VG20 |
43514-30010 |
US $3.64 |
||
|
43520
|
43520
43510-40021
Hub And Brake Drum Assy, Front Axle, Rh
[11.1967 - 08.1969] VG20 DRUM BRAKE |
43510-40021 |
— | ||
| replacement | |||||
|
43520
|
43520
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[11.1967 - 08.1969] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
43520
|
43520
43510-40022
Hub And Brake Drum Assy, Front Axle, Rh
[08.1969 - 10.1969] VG20 DRUM BRAKE |
43510-40022 |
— | ||
| replacement | |||||
|
43520
|
43520
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[08.1969 - 10.1969] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
43520
|
43520
43510-40023
Hub And Brake Drum Assy, Front Axle, Rh
[10.1969 - 02.1973] VG20 DRUM BRAKE |
43510-40023 |
— | ||
|
9538104035
|
9538104035
95381-04035 PIN |
95381-04035 |
from US $0.92 |
||
