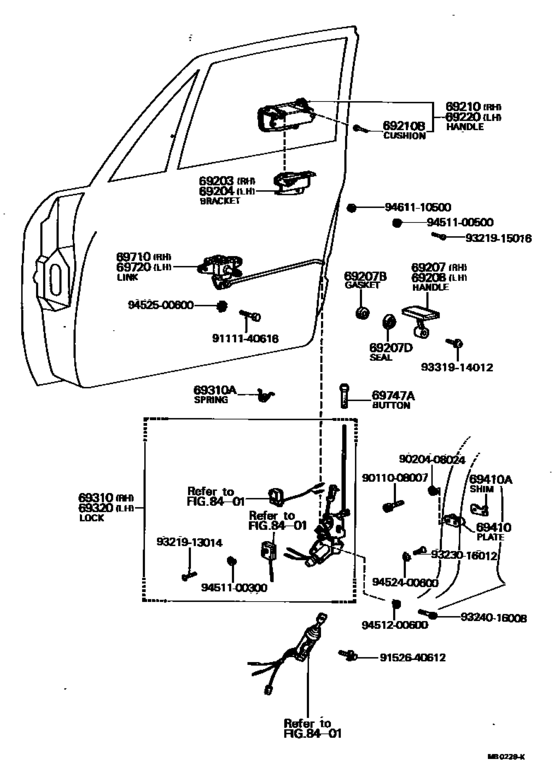

Front Door Lock & Handle ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69203
|
69203
69205-40010
Bracket Sub-Assy, Switch W/lever, Rh
[11.1967 - 09.1982] VG2#,3# |
69205-40010 |
— | ||
|
69204
|
69204
69206-40010
Bracket Sub-Assy, Switch W/lever, Lh
[11.1967 - 09.1982] VG2#,3# |
69206-40010 |
— | ||
|
69207
|
69207
69206-91401 Handle Sub-Assy, Front Door Inside, Rh[11.1967 - 09.1982] VG2#,3# |
69206-91401 |
US $37.56 |
||
|
69207B
|
69207B
90430-11136 Gasket(For Front Door Inside Handle)[11.1967 - 09.1982] VG2#,3# |
90430-11136 |
US $3.20 |
||
|
69207D
|
69207D
69265-91401 Seal(For Front Door Inside Handle)[11.1967 - 09.1982] VG2#,3# |
69265-91401 |
US $2.77 |
||
|
69208
|
69208
69207-91402 Handle Sub-Assy, Front Door Inside, Lh[11.1967 - 09.1982] VG2#,3# |
69207-91402 |
US $37.56 |
||
|
69210
|
69210
69210-40020 Handle Assy, Front Door, Outside Rh[11.1967 - 08.1968] VG20 |
69210-40020 |
US $77.17 |
||
| replacements | |||||
|
69210
|
69210
69210-40021
Handle Assy, Front Door, Outside Rh
[11.1967 - 08.1968] VG20 |
69210-40021 |
— | ||
|
69210
|
69210
93219-15010 SCREW[11.1967 - 08.1968] VG20 |
93219-15010 |
US $2.04 |
||
|
69210
|
69210
69210-40021
Handle Assy, Front Door, Outside Rh
[08.1968 - 09.1982] VG2#,3# |
69210-40021 |
— | ||
|
69210B
|
69210B
90541-03021 Cushion(For Front Door Outside Handle)[11.1967 - 09.1978] VG2#,30 |
90541-03021 |
US $4.96 |
||
|
69220
|
69220
69220-40020 Handle Assy, Front Door Outside, Lh[11.1967 - 08.1968] VG20 |
69220-40020 |
US $72.36 |
||
| replacements | |||||
|
69220
|
69220
69220-40021
Handle Assy, Front Door Outside, Lh
[11.1967 - 08.1968] VG20 |
69220-40021 |
— | ||
|
69220
|
69220
93219-15010 SCREW[11.1967 - 08.1968] VG20 |
93219-15010 |
US $2.04 |
||
|
69220
|
69220
69220-40021
Handle Assy, Front Door Outside, Lh
[08.1968 - 09.1982] VG2#,3# |
69220-40021 |
— | ||
|
69310
|
69310
69310-40031 Lock Assy, Front Door, Rh[11.1967 - 02.1973] VG20 |
69310-40031 |
US $294.11 |
||
| replacements | |||||
|
69310
|
69310
69310-40060
Lock Assy, Front Door, Rh
[11.1967 - 02.1973] VG20 |
69310-40060 |
— | ||
|
69310
|
69310
69410-40030
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 |
69410-40030 |
— | ||
|
69310A
|
69310A
90508-10230
Spring(For Front Door Lock)
[11.1967 - 09.1982] VG2#,3# RH |
90508-10230 |
— | ||
|
69310A
|
69310A
90508-10231
Spring(For Front Door Lock)
[11.1967 - 09.1982] VG2#,3# LH |
90508-10231 |
— | ||
|
69320
|
69320
69320-40031 Lock Assy, Front Door, Lh[11.1967 - 02.1973] VG20 |
69320-40031 |
US $292.66 |
||
| replacements | |||||
|
69320
|
69320
69320-40060 Lock Assy, Front Door, Lh[11.1967 - 02.1973] VG20 |
69320-40060 |
US $294.11 |
||
|
69320
|
69320
69420-40030
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 |
69420-40030 |
— | ||
|
69410
|
69410
69410-40010
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 RH |
69410-40010 |
— | ||
| replacements | |||||
|
69410
|
69410
69310-40060
Lock Assy, Front Door, Rh
[11.1967 - 02.1973] VG20 RH |
69310-40060 |
— | ||
|
69410
|
69410
69330-40060
Lock Assy, Rear Door, Rh
[11.1967 - 02.1973] VG20 RH |
69330-40060 |
— | ||
|
69410
|
69410
69410-40030
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 RH |
69410-40030 |
— | ||
|
69410
|
69410
69420-40010
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 LH |
69420-40010 |
— | ||
| replacements | |||||
|
69410
|
69410
69320-40060 Lock Assy, Front Door, Lh[11.1967 - 02.1973] VG20 LH |
69320-40060 |
US $294.11 |
||
|
69410
|
69410
69340-40060 Lock Assy, Rear Door, Lh[11.1967 - 02.1973] VG20 LH |
69340-40060 |
US $251.89 |
||
|
69410
|
69410
69420-40030
Plate Assy, Front Door Lock Striker
[11.1967 - 02.1973] VG20 LH |
69420-40030 |
— | ||
|
69710
|
69710
69710-40010 Link Assy, Front Door Open Control, Rh[11.1967 - 08.1968] VG20 |
69710-40010 |
US $21.11 |
||
| replacements | |||||
|
69710
|
69710
69710-40011
Link Assy, Front Door Open Control, Rh
[11.1967 - 08.1968] VG20 |
69710-40011 |
— | ||
|
69710
|
69710
93219-14008 Screw, W/washer(For Bearing Cover Setting)[11.1967 - 08.1968] VG20 |
93219-14008 |
from US $2.08 |
||
|
69710
|
69710
69710-40011
Link Assy, Front Door Open Control, Rh
[08.1968 - 09.1982] VG2#,3# |
69710-40011 |
— | ||
|
69720
|
69720
69720-40010 Link Assy, Front Door Open Control, Lh[11.1967 - 08.1968] VG20 |
69720-40010 |
US $16.02 |
||
| replacements | |||||
|
69720
|
69720
69720-40011
Link Assy, Front Door Open Control, Lh
[11.1967 - 08.1968] VG20 |
69720-40011 |
— | ||
|
69720
|
69720
93219-14008 Screw, W/washer(For Bearing Cover Setting)[11.1967 - 08.1968] VG20 |
93219-14008 |
from US $2.08 |
||
|
69720
|
69720
69720-40011
Link Assy, Front Door Open Control, Lh
[08.1968 - 09.1982] VG2#,3# |
69720-40011 |
— | ||
|
69747A
|
69747A
69770-91401 Button, Door Locking(For Front Door)[11.1967 - 09.1982] VG2#,3# |
69770-91401 |
US $9.61 |
||
| replacement | |||||
|
69747A
|
69747A
69077-91401 Knob, Front Door Lock Control[11.1967 - 09.1982] VG2#,3# |
69077-91401 |
US $9.61 |
||
|
9011008007
|
9011008007
90110-08007
New Genuine Part
|
90110-08007 |
— | ||
|
9020408024
|
9020408024
90204-08024 Washer, Spring(For Rear Differential Case)SPRING(FOR REAR DIFFERENTIAL CASE) |
90204-08024 |
US $1.89 |
||
|
9111140616
|
9111140616
91111-40616 New Genuine Part |
91111-40616 |
US $2.18 |
||
| replacement | |||||
|
9111140616
|
9111140616
91111-50616 New Genuine Part |
91111-50616 |
US $0.93 |
||
|
9152640612
|
9152640612
91526-40612
New Genuine Part
|
91526-40612 |
— | ||
|
9321913014
|
9321913014
93219-13014 SCREW |
93219-13014 |
from US $0.70 |
||
|
9321915016
|
9321915016
93219-15016
Screw, Cover Set, No.1
|
93219-15016 |
— | ||
|
9323016012
|
9323016012
93230-16012
New Genuine Part
|
93230-16012 |
— | ||
|
9324016008
|
9324016008
93240-16008 New Genuine Part |
93240-16008 |
US $1.60 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
|
9452500600
|
9452500600
94525-00600 New Genuine Part |
94525-00600 |
US $2.18 |
||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
