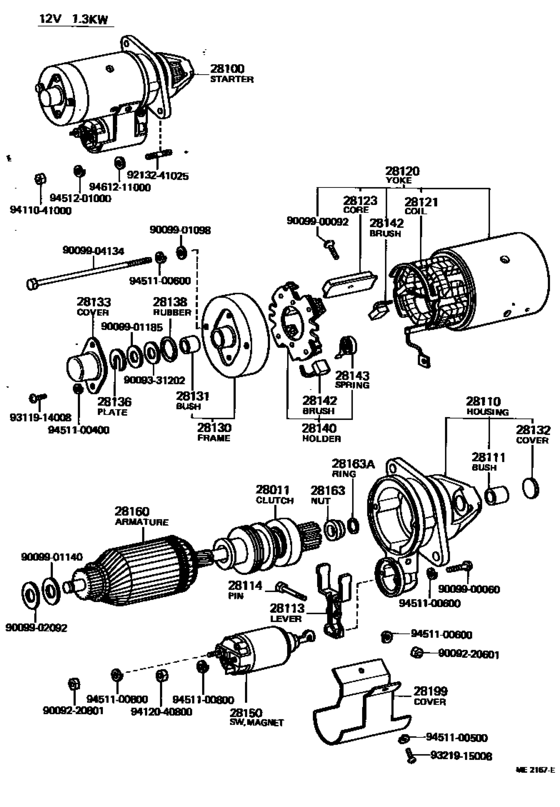

Starter ([11.1967 - 05.1968] (6711-6805)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-40021
Clutch Sub-Assy, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28011-40021 |
— | ||
|
28011
|
28011
28011-41011 Clutch Sub-Assy, Starter[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28011-41011 |
US $90.27 |
||
|
28100
|
28100
28100-51011 Starter Assy[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28100-51011 |
US $1,026.48 |
||
| replacement | |||||
|
28100
|
28100
28100-51050
Starter Assy
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28100-51050 |
— | ||
|
28100
|
28100
28100-51012 Starter Assy[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28100-51012 |
US $1,026.48 |
||
| replacement | |||||
|
28100
|
28100
28100-51050
Starter Assy
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28100-51050 |
— | ||
|
28110
|
28110
28110-51011
Housing Assy, Starter Drive
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28110-51011 |
— | ||
|
28110
|
28110
28110-51012
Housing Assy, Starter Drive
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28110-51012 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[02.1969 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,STD |
28111-51011 |
— | ||
|
28111
|
28111
90099-10033 Bush(For Starter Housing)[05.1968 - 02.1969] 3V..VG20 12V 1.0KW,U/S 0.3 |
90099-10033 |
US $2.91 |
||
|
28111
|
28111
90099-10038 Bush(For Starter Housing)[05.1968 - 02.1969] 3V..VG20 12V 1.0KW,U/S 0.5 |
90099-10038 |
US $3.06 |
||
|
28111
|
28111
90099-10050
Bush(For Starter Housing)
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW,STD |
90099-10050 |
— | ||
|
28111
|
28111
90099-10052
Bush(For Starter Housing)
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW,U/S 0.3 |
90099-10052 |
— | ||
|
28111
|
28111
90099-10053
Bush(For Starter Housing)
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW,U/S 0.5 |
90099-10053 |
— | ||
|
28111
|
28111
90099-51010
Bush(For Starter Housing)
[05.1968 - 02.1969] 3V..VG20 12V 1.0KW,STD |
90099-51010 |
— | ||
|
28113
|
28113
28113-40010
Lever, Starter Pinion Drive
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28113-40010 |
— | ||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28113-41011 |
— | ||
|
28114
|
28114
28114-40011
Pin, Starter Drive Lever Set
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28114-40011 |
— | ||
|
28114
|
28114
28114-41011
Pin, Starter Drive Lever Set
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28114-41011 |
— | ||
|
28120
|
28120
28120-51011
Yoke Assy, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28120-51011 |
— | ||
| replacements | |||||
|
28120
|
28120
28120-51013
Yoke Assy, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28120-51013 |
— | ||
|
28120
|
28120
28126-51011
Bearing Sub-Assy, Center
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28126-51011 |
— | ||
|
28120
|
28120
28162-41022
Spring, Starter Brake
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28162-41022 |
— | ||
|
28120
|
28120
28120-51012
Yoke Assy, Starter
[05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28120-51012 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-51013
Yoke Assy, Starter
[05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28120-51013 |
— | ||
|
28121
|
28121
28121-41020 Coil, Starter FieldSTARTER FIELD [05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28121-41020 |
US $90.27 |
||
|
28121
|
28121
28121-50011
Coil, Starter Field
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28121-50011 |
— | ||
|
28123
|
28123
28123-41020
Core, Starter Pole
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28123-41020 |
— | ||
|
28123
|
28123
28123-50010
Core, Starter Pole
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28123-50010 |
— | ||
|
28130
|
28130
28130-41020
Frame Assy, Starter Commutator End
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28130-41020 |
— | ||
|
28130
|
28130
28130-51010
Frame Assy, Starter Commutator End
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28130-51010 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW,STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW,U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW,U/S 0.5 |
90099-10040 |
— | ||
|
28132
|
28132
28132-41010
Cover, Starter Bearing(For Drive Housing)
[11.1967 - 05.1974] 3V,4V..VG2# 12V 1.0KW,1.3KW |
28132-41010 |
— | ||
| replacement | |||||
|
28132
|
28132
28166-41010
Cover, Starter Bearing(For Drive Housing)
[11.1967 - 05.1974] 3V,4V..VG2# 12V 1.0KW,1.3KW |
28166-41010 |
— | ||
|
28133
|
28133
28132-40010
Cover, Bearing(For End Frame)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28132-40010 |
— | ||
|
28136
|
28136
28136-40010
Plate, Starter Lock
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28136-40010 |
— | ||
|
28138
|
28138
28138-40010
Rubber(For Starter Bearing Cover)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28138-40010 |
— | ||
| replacement | |||||
|
28138
|
28138
28138-26030
Rubber(For Starter Bearing Cover)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28138-26030 |
— | ||
|
28140
|
28140
28140-41020
Holder Assy, Starter Brush
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28140-41020 |
— | ||
|
28140
|
28140
28140-50011
Holder Assy, Starter Brush
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28140-50011 |
— | ||
|
28142
|
28142
28142-10011
Brush, Starter
[05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28142-10011 |
— | ||
|
28142
|
28142
28148-50010
Brush, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28148-50010 |
— | ||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28143-40040 |
— | ||
|
28150
|
28150
28150-22010
Switch Assy, Magnet Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28150-22010 |
— | ||
|
28150
|
28150
28150-41011
Switch Assy, Magnet Starter
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28150-41011 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-33020 Switch Assy, Magnet Starter[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28150-33020 |
US $135.41 |
||
|
28160
|
28160
28160-50011
Armature Assy, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28160-50011 |
— | ||
|
28160
|
28160
28160-51010
Armature Assy, Starter
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28160-51010 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
90099-07047 |
— | ||
|
28199
|
28199
28199-51011
Cover, Starter
[11.1967 - 05.1968] 3V..VG20 12V 1.3KW |
28199-51011 |
— | ||
|
28199
|
28199
28199-51012
Cover, Starter
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28199-51012 |
— | ||
|
9009220601
|
9009220601
90092-20601
New Genuine Part
|
90092-20601 |
— | ||
|
9009220801
|
9009220801
90092-20801
New Genuine Part
|
90092-20801 |
— | ||
| replacement | |||||
|
9009220801
|
9009220801
90099-05809
New Genuine Part
|
90099-05809 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009900060
|
9009900060
90099-00060
New Genuine Part
|
90099-00060 |
— | ||
|
9009900092
|
9009900092
90099-00092
New Genuine Part
|
90099-00092 |
— | ||
|
9009901098
|
9009901098
90099-01098
New Genuine Part
|
90099-01098 |
— | ||
|
9009901140
|
9009901140
90099-01140
New Genuine Part
|
90099-01140 |
— | ||
|
9009901185
|
9009901185
90099-01185
New Genuine Part
|
90099-01185 |
— | ||
|
9009902092
|
9009902092
90099-02092
Washer(For Governor Shaft Thrust)
|
90099-02092 |
— | ||
| replacement | |||||
|
9009902092
|
9009902092
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009904134
|
9009904134
90099-04134
New Genuine Part
|
90099-04134 |
— | ||
|
9213241025
|
9213241025
92132-41025 Bolt, Stud(For Manifold To Exhaust Pipe) |
92132-41025 |
US $2.62 |
||
|
9311914008
|
9311914008
93119-14008
Screw, Choke Wire Clamp
|
93119-14008 |
— | ||
|
9321915008
|
9321915008
93219-15008
New Genuine Part
|
93219-15008 |
— | ||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
