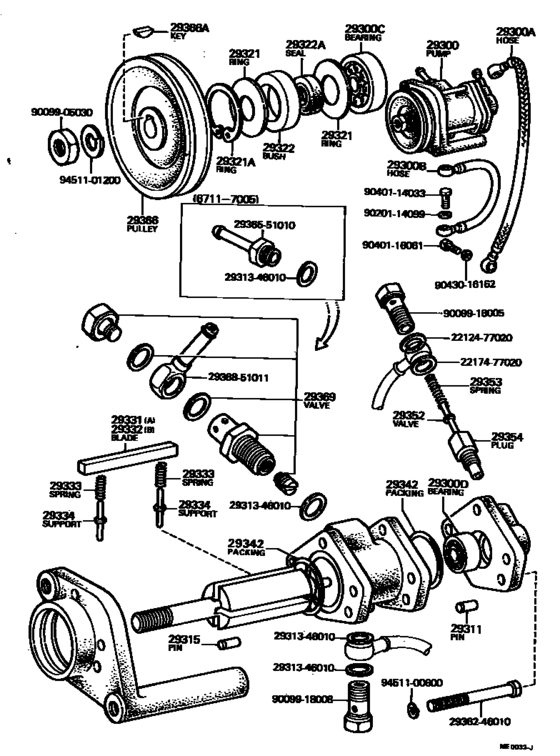

Vacuum Pump ([11.1967 - 02.1973] (6711-7302)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-51010 Pump Assy, Vacuum[11.1967 - 05.1970] 3V..VG20 |
29300-51010 |
US $675.58 |
||
| replacements | |||||
|
29300
|
29300
90445-14140 Hose(For Vacuum Reservoir)[11.1967 - 05.1970] 3V..VG20 |
90445-14140 |
US $10.34 |
||
|
29300
|
29300
29300-51011
Pump Assy, Vacuum
[11.1967 - 05.1970] 3V..VG20 |
29300-51011 |
— | ||
|
29300
|
29300
90468-18055
Clip(For Hose)
[11.1967 - 05.1970] 3V..VG20 |
90468-18055 |
— | ||
|
29300
|
29300
29300-51011
Pump Assy, Vacuum
[05.1970 - 02.1973] 3V..VG20 |
29300-51011 |
— | ||
|
29300A
|
29300A
90923-02013 Hose, Vacuum Pump Oil Inlet[11.1967 - 05.1975] 3V,4V..VG2# |
90923-02013 |
US $50.23 |
||
|
29300B
|
29300B
90923-02014 Hose, Vacuum Pump Oil Outlet[11.1967 - 05.1975] 3V,4V..VG2# |
90923-02014 |
US $28.25 |
||
|
29300C
|
29300C
97103-06303
Bearing, Vacuum Pump Rotor, Front
[11.1967 - 05.1975] 3V,4V..VG2# |
97103-06303 |
— | ||
|
29300D
|
29300D
90099-10019
Bearing, Vacuum Pump Rotor, Rear
[11.1967 - 02.1973] 3V..VG20 |
90099-10019 |
— | ||
|
29311
|
29311
29311-46010
Pin, Vacuum Pump Dowel, No.1
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29311-46010 |
— | ||
|
29315
|
29315
29315-46010
Pin, Vacuum Pump Dowel, No.2
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29315-46010 |
— | ||
|
29321
|
29321
90099-01360
Ring, Oil Seal Stop, Vacuum Pump
[11.1967 - 05.1975] 3V,4V..VG2# |
90099-01360 |
— | ||
|
29321A
|
29321A
90099-07097
Ring, Snap, Vacuum Pump
[11.1967 - 02.1973] 3V..VG20 |
90099-07097 |
— | ||
| replacement | |||||
|
29321A
|
29321A
90099-07035
Ring, Snap, Vacuum Pump
[11.1967 - 02.1973] 3V..VG20 |
90099-07035 |
— | ||
|
29322
|
29322
29322-51010
Bush, Oil Seal, Vacuum Pump
[11.1967 - 05.1974] 3V,4V..VG2# |
29322-51010 |
— | ||
|
29322A
|
29322A
90099-15012
Seal, Vacuum Pump Oil
[11.1967 - 05.1975] 3V,4V..VG2# |
90099-15012 |
— | ||
|
29331
|
29331
29331-46010
Blade, Vacuum Pump, A
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29331-46010 |
— | ||
|
29332
|
29332
29332-46010 Blade, Vacuum Pump, BVACUUM PUMP, B [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29332-46010 |
US $8.30 |
||
|
29333
|
29333
29333-46010
Spring, Vacuum Pump Blade
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29333-46010 |
— | ||
|
29334
|
29334
29334-46010
Support, Vacuum Pump Blade Spring
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29334-46010 |
— | ||
|
29342
|
29342
29342-46010 Packing, Vacuum PumpVACUUM PUMP [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29342-46010 |
US $4.80 |
||
|
29352
|
29352
29352-46010
Valve, Vacuum Pump
[11.1967 - 02.1973] 3V..VG20 |
29352-46010 |
— | ||
|
29353
|
29353
29353-76010 Spring, Oil ValveOIL VALVE [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29353-76010 |
US $2.04 |
||
|
29354
|
29354
29354-46010
Plug, Vacuum Pump Oil
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29354-46010 |
— | ||
|
29366
|
29366
29366-51010
Pulley, Vacuum Pump
[11.1967 - 05.1974] 3V,4V..VG2# |
29366-51010 |
— | ||
|
29366A
|
29366A
90099-00405
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90099-00405 |
— | ||
| replacement | |||||
|
29366A
|
29366A
95161-10413
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
95161-10413 |
— | ||
|
29369
|
29369
29369-51011
Valve Sub-Assy, Check
[05.1970 - 11.1978] 3V,4V#..VG2#,30 |
29369-51011 |
— | ||
|
2212477020
|
2212477020
22124-77020
Washer(For Over Flow Nipple)
|
22124-77020 |
— | ||
| replacement | |||||
|
2212477020
|
2212477020
90201-10108 Washer(For Over Flow Nipple) |
90201-10108 |
US $3.52 |
||
|
2217477020
|
2217477020
22174-77020
Shaft, Spline
|
22174-77020 |
— | ||
|
2931346010
|
2931346010
29313-46010
New Genuine Part
|
29313-46010 |
— | ||
|
2936246010
|
2936246010
29362-46010
New Genuine Part
|
29362-46010 |
— | ||
|
2936551010
|
2936551010
29365-51010
New Genuine Part
|
29365-51010 |
— | ||
|
2936851011
|
2936851011
29368-51011
New Genuine Part
|
29368-51011 |
— | ||
|
9009905030
|
9009905030
90099-05030
New Genuine Part
|
90099-05030 |
— | ||
|
9009918005
|
9009918005
90099-18005
Screw, Fuel Inlet Follow
|
90099-18005 |
— | ||
|
9009918008
|
9009918008
90099-18008
New Genuine Part
|
90099-18008 |
— | ||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.56 |
||
|
9040114033
|
9040114033
90401-14033
Bolt, Union
|
90401-14033 |
— | ||
|
9040116061
|
9040116061
90401-16061 New Genuine Part |
90401-16061 |
US $3.93 |
||
|
9043016162
|
9043016162
90430-16162
Gasket(For Chain Tensioner Body)
|
90430-16162 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.68 |
||
