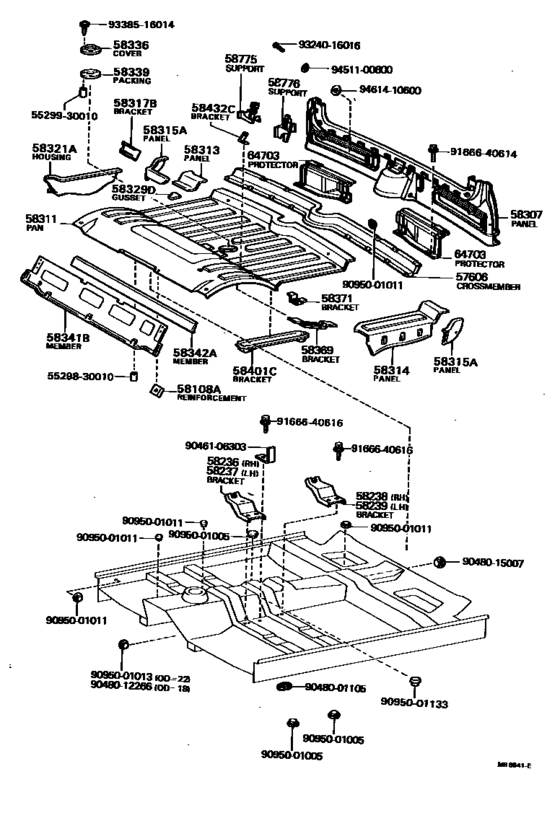

Floor Pan & Lower Back Panel ([11.1978 - ] (7811- )) Diagram Toyota CENTURY
- Year
- 1978 - 1982
- Sales region
- Japan
- Frame
- VG35
- ENGINE
- 4VEU
- TRANSMISSION
- ATM
- From
- 11.1978
- To
- 09.1982
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57606
|
57606
57623-91402
Crossmember Sub-Assy, Rear Floor Rear, Inner
[03.1973 - 09.1982] VG21,3# |
57623-91402 |
— | ||
|
58108A
|
58108A
58108-91401
Reinforcement Sub-Assy, Safety Belt Ancer Inside, Rear
[11.1978 - 09.1982] VG35 |
58108-91401 |
— | ||
|
58236
|
58236
58236-91402
Bracket, Front Seat, Inner Front Rh
[09.1974 - 09.1982] VG21,3# |
58236-91402 |
— | ||
|
58237
|
58237
58237-91402
Bracket, Front Seat, Inner Front Lh
[09.1974 - 09.1982] VG21,3# |
58237-91402 |
— | ||
|
58238
|
58238
58238-91403
Bracket, Front Seat, Inner Rear Rh
[09.1974 - 09.1982] VG21,3# |
58238-91403 |
— | ||
|
58239
|
58239
58239-91403
Bracket, Front Seat, Inner Rear Lh
[09.1974 - 09.1982] VG21,3# |
58239-91403 |
— | ||
|
58307
|
58307
58307-91409
Panel Sub-Assy, Body Lower Back
[11.1978 - 09.1982] VG35 |
58307-91409 |
— | ||
|
58311
|
58311
58311-91410
Pan, Rear Floor
[11.1978 - 09.1982] VG35 |
58311-91410 |
— | ||
|
58313
|
58313
58313-91403
Panel, Rear Floor Side, Rh
[11.1978 - 09.1982] VG35 |
58313-91403 |
— | ||
|
58314
|
58314
58330-91401
Panel, Rear Floor Side, Lh
[11.1978 - 09.1982] VG35 |
58330-91401 |
— | ||
|
58315A
|
58315A
58315-91405
Panel, Rear Floor Side, Rear
[11.1978 - 09.1982] VG35 RH |
58315-91405 |
— | ||
|
58315A
|
58315A
58316-91404
Panel, Rear Floor Side, Rear
[11.1978 - 09.1982] VG35 LH |
58316-91404 |
— | ||
|
58317B
|
58317B
58317-91403
Bracket, Quarter Wheel House Strainer, Rh
[11.1978 - 09.1982] VG35 |
58317-91403 |
— | ||
|
58321A
|
58321A
58321-91405
Housing, Spare Wheel
[11.1978 - 09.1982] VG35 |
58321-91405 |
— | ||
|
58329D
|
58329D
58329-91401 Gusset, Spare Wheel Housing Corner[11.1978 - 09.1982] VG35 |
58329-91401 |
US $9.17 |
||
|
58336
|
58336
58336-91401
Cover, Inspection Hole
[11.1967 - 09.1982] VG2#,3# |
58336-91401 |
— | ||
|
58339
|
58339
58337-91401
Packing, Inspection Hole
[11.1967 - 09.1982] VG2#,3# |
58337-91401 |
— | ||
|
58341B
|
58341B
58341-91403
Member, Rear Floor Cross, Front
[11.1978 - 09.1982] VG35 |
58341-91403 |
— | ||
|
58342A
|
58342A
58342-91402
Member, Rear Floor Cross, Rear
[11.1978 - 09.1982] VG35 |
58342-91402 |
— | ||
|
58369
|
58369
58312-91401
Bracket, Insulator Heat
[05.1975 - 09.1982] VG21,3# |
58312-91401 |
— | ||
|
58371
|
58371
58369-91401 Bracket, Fuel Pump SupportFUEL PUMP SUPPORT [11.1978 - 09.1982] VG35 |
58369-91401 |
US $8.88 |
||
|
58401C
|
58401C
58401-91402
Bracket Sub-Assy, Fuel Tank Support
[11.1978 - 09.1982] VG35 RH |
58401-91402 |
— | ||
|
58401C
|
58401C
58402-91402
Bracket Sub-Assy, Fuel Tank Support
[11.1978 - 09.1982] VG35 LH |
58402-91402 |
— | ||
|
58432C
|
58432C
58432-91401
Bracket, Vent Chamber, Lower
[11.1978 - 09.1982] VG35 |
58432-91401 |
— | ||
|
58775
|
58775
61608-91403
Support, Jack Handle Rod, No.1
[05.1975 - 09.1982] VG21,3# |
61608-91403 |
— | ||
|
58776
|
58776
61609-91403
Support, Jack Handle Rod, No.2
[05.1975 - 09.1982] VG21,3# |
61609-91403 |
— | ||
|
64703
|
64703
64073-91401
Protector Sub-Assy, Rear Combination Lamp
[03.1973 - 09.1982] VG21,3# RH |
64073-91401 |
— | ||
|
64703
|
64703
64074-91401
Protector Sub-Assy, Rear Combination Lamp
[03.1973 - 09.1982] VG21,3# LH |
64074-91401 |
— | ||
|
5529830010
|
5529830010
55298-30010 Cap(For Roll Bar)TEE NUT(FOR 8MM) |
55298-30010 |
US $3.06 |
||
|
5529930010
|
5529930010
55299-30010 Cap, Tee Nut(For 6Mm) |
55299-30010 |
US $3.20 |
||
|
9046106303
|
9046106303
90461-06303 New Genuine Part |
90461-06303 |
US $2.33 |
||
|
9048001105
|
9048001105
90480-01105
New Genuine Part
|
90480-01105 |
— | ||
|
9048012266
|
9048012266
90480-12266
New Genuine Part
|
90480-12266 |
— | ||
|
9048015007
|
9048015007
90480-15007
Plug, Hole, No.1(For Dash Panel)
|
90480-15007 |
— | ||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $2.72 |
||
|
9095001013
|
9095001013
90950-01013 Plug, Hole, No.2(For Dash Panel) |
90950-01013 |
US $4.73 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.42 |
||
|
9166640614
|
9166640614
91666-40614
New Genuine Part
|
91666-40614 |
— | ||
| replacement | |||||
|
9166640614
|
9166640614
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.72 |
||
|
9324016016
|
9324016016
93240-16016 New Genuine Part |
93240-16016 |
US $1.60 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
