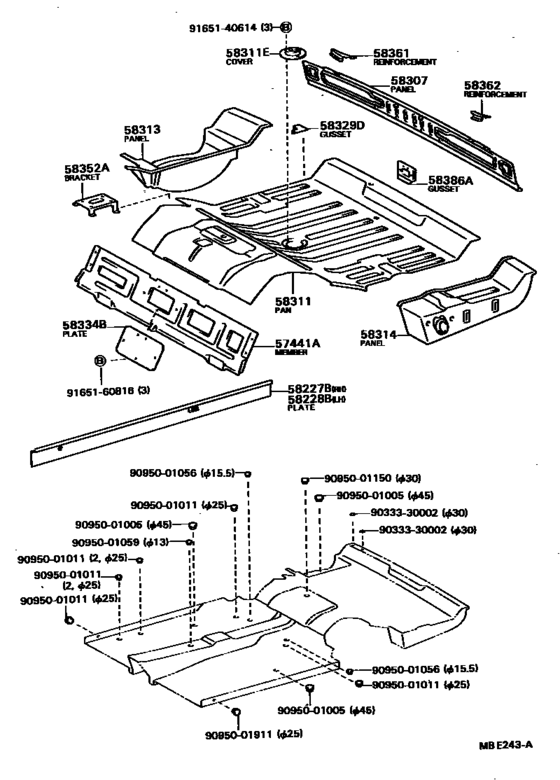

Floor Pan & Lower Back Panel ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57441A
|
57441A
57441-91401 Member, Rear Floor Center, No.1[10.1982 - 09.1987] VG40 |
57441-91401 |
US $147.06 |
||
| replacement | |||||
|
57441A
|
57441A
57441-40010 Member, Rear Floor Center, No.1[10.1982 - 09.1987] VG40 |
57441-40010 |
US $145.60 |
||
|
58227B
|
58227B
58227-91490 Plate, Front Floor Panel Side, Rh[10.1982 - 09.1987] VG40 |
58227-91490 |
US $380.02 |
||
|
58228B
|
58228B
58228-91490 Plate, Front Floor Panel Side, Lh[10.1982 - 09.1987] VG40 |
58228-91490 |
US $380.02 |
||
|
58307
|
58307
58307-91410 Panel Sub-Assy, Body Lower Back[10.1982 - 09.1987] VG40 |
58307-91410 |
US $1,485.12 |
||
|
58311
|
58311
58301-91490
Pan, Rear Floor
[10.1982 - 09.1987] VG40 |
58301-91490 |
— | ||
| replacements | |||||
|
58311
|
58311
90950-01865 PLUG HOLE[10.1982 - 09.1987] VG40 |
90950-01865 |
from US $1.27 |
||
|
58311
|
58311
58301-91491 Panel Sub-Assy, Rear Floor[10.1982 - 09.1987] VG40 |
58301-91491 |
US $1,055.60 |
||
|
58311E
|
58311E
77029-91401 Cover, Rear Floor Service Hole[10.1982 - 09.1987] VG40 |
77029-91401 |
US $45.72 |
||
|
58313
|
58313
58305-91402 Panel, Rear Floor Side, Rh[10.1982 - 09.1987] VG40 |
58305-91402 |
US $579.49 |
||
|
58314
|
58314
58303-91401 Panel, Rear Floor Side, Lh[10.1982 - 09.1987] VG40 |
58303-91401 |
US $502.32 |
||
|
58329D
|
58329D
58329-91401 Gusset, Spare Wheel Housing Corner[10.1982 - 09.1987] VG40 |
58329-91401 |
US $9.17 |
||
|
58334B
|
58334B
58334-91401 Plate, Rear Floor Crossmember, Center Rh[10.1982 - 09.1987] VG40 |
58334-91401 |
US $29.99 |
||
|
58352A
|
58352A
58352-91403 Bracket, Rear Floor Stay[10.1982 - 09.1987] VG40 |
58352-91403 |
US $21.11 |
||
|
58361
|
58361
58375-91404 Reinforcement, Rear Floor Pan To Body Lower Back, Rh[10.1982 - 09.1987] VG40 |
58375-91404 |
US $77.17 |
||
|
58362
|
58362
58376-91402 Reinforcement, Rear Floor Pan To Body Lower Back, Lh[10.1982 - 09.1987] VG40 |
58376-91402 |
US $77.17 |
||
|
58386A
|
58386A
58386-91402 Gusset, Lower Back Panel, No.2[10.1982 - 09.1987] VG40 |
58386-91402 |
US $25.48 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $2.72 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001059
|
9095001059
90950-01059
Grommet, Safety Band Anchorage Nut
|
90950-01059 |
— | ||
|
9095001150
|
9095001150
90950-01150
Cover, Front Floor Hole
|
90950-01150 |
— | ||
| replacement | |||||
|
9095001150
|
9095001150
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001911
|
9095001911
90950-01911 New Genuine Part |
90950-01911 |
US $0.80 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
