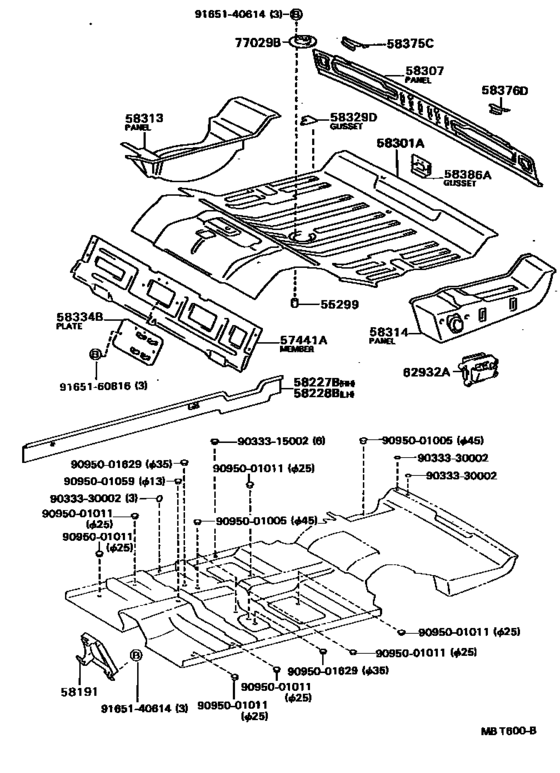

Floor Pan & Lower Back Panel ([10.1989 - 09.1990] ﾘﾑｼﾞﾝ S,H (8910-9009)4HC..E) Diagram Toyota CENTURY
- Year
- 1987 - 1997
- Sales region
- Japan
- Frame
- VG40
- grade
- E
- ENGINE
- 5VEU
- From
- 09.1987
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55299
|
55299
55299-30010 Cap, Tee Nut(For 6Mm)[09.1987 - 01.1997] VG4# |
55299-30010 |
US $3.20 |
||
|
57441A
|
57441A
57407-40010 Member, Rear Floor Center, No.1[12.1992 - 01.1997] VG4# |
57407-40010 |
US $168.90 |
||
|
57441A
|
57441A
57441-40010 Member, Rear Floor Center, No.1[09.1990 - 12.1992] VG4# |
57441-40010 |
US $145.60 |
||
|
57441A
|
57441A
57441-91401 Member, Rear Floor Center, No.1[09.1987 - 09.1990] VG40 |
57441-91401 |
US $147.06 |
||
| replacement | |||||
|
57441A
|
57441A
57441-40010 Member, Rear Floor Center, No.1[09.1987 - 09.1990] VG40 |
57441-40010 |
US $145.60 |
||
|
57441A
|
57441A
57441-91404
Member, Rear Floor Center, No.1
[10.1989 - 09.1990] VG40..4HC..E ﾘﾑｼﾞﾝS OR ﾘﾑｼﾞﾝH |
57441-91404 |
— | ||
| replacement | |||||
|
57441A
|
57441A
57441-40020 Member, Rear Floor Center, No.1[10.1989 - 09.1990] VG40..4HC..E ﾘﾑｼﾞﾝS OR ﾘﾑｼﾞﾝH |
57441-40020 |
US $145.60 |
||
|
58191
|
58191
58191-91401 Footrest, Front Floor[09.1987 - 01.1997] VG4# |
58191-91401 |
US $25.19 |
||
|
58227B
|
58227B
58227-91491 Plate, Front Floor Panel Side, Rh[09.1987 - 01.1997] VG40 |
58227-91491 |
US $374.19 |
||
|
58227B
|
58227B
58227-91493 Plate, Front Floor Panel Side, Rh[10.1989 - 09.1990] VG40..4HC..E |
58227-91493 |
US $416.42 |
||
|
58228B
|
58228B
58228-91491 Plate, Front Floor Panel Side, Lh[09.1987 - 01.1997] VG40 |
58228-91491 |
US $374.19 |
||
|
58228B
|
58228B
58228-91493 Plate, Front Floor Panel Side, Lh[10.1989 - 09.1990] VG40..4HC..E |
58228-91493 |
US $416.42 |
||
|
58301A
|
58301A
58301-40900 Panel Sub-Assy, Rear Floor[12.1992 - 01.1997] VG4# |
58301-40900 |
US $844.48 |
||
|
58301A
|
58301A
58301-91491 Panel Sub-Assy, Rear Floor[09.1987 - 12.1992] VG4# |
58301-91491 |
US $1,055.60 |
||
|
58307
|
58307
58307-91410 Panel Sub-Assy, Body Lower Back[09.1987 - 01.1997] VG4# |
58307-91410 |
US $1,485.12 |
||
|
58313
|
58313
58305-40010 Panel, Rear Floor Side, Rh[12.1992 - 01.1997] VG4# |
58305-40010 |
US $582.40 |
||
|
58313
|
58313
58305-91402 Panel, Rear Floor Side, Rh[09.1987 - 12.1992] VG4# |
58305-91402 |
US $579.49 |
||
|
58314
|
58314
58303-40010 Panel, Rear Floor Side, Lh[12.1992 - 01.1997] VG4# |
58303-40010 |
US $502.32 |
||
|
58314
|
58314
58303-91401 Panel, Rear Floor Side, Lh[09.1987 - 12.1992] VG4# |
58303-91401 |
US $502.32 |
||
|
58329D
|
58329D
58329-91401 Gusset, Spare Wheel Housing Corner[09.1987 - 12.1992] VG4# |
58329-91401 |
US $9.17 |
||
|
58334B
|
58334B
58309-91402 Plate, Rear Floor Crossmember, Center Rh[10.1989 - 09.1990] VG40..4HC..E ﾘﾑｼﾞﾝS OR ﾘﾑｼﾞﾝH & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ & ﾘﾔ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
58309-91402 |
US $55.18 |
||
|
58334B
|
58334B
58334-91401 Plate, Rear Floor Crossmember, Center Rh[09.1987 - 12.1992] VG4# |
58334-91401 |
US $29.99 |
||
|
58375C
|
58375C
58375-91404 Reinforcement, Rear Floor Pan To Body Lower Back, Rh[09.1987 - 01.1997] VG4# |
58375-91404 |
US $77.17 |
||
|
58376D
|
58376D
58376-91402 Reinforcement, Rear Floor Pan To Body Lower Back, Lh[09.1987 - 01.1997] VG4# |
58376-91402 |
US $77.17 |
||
|
58386A
|
58386A
58386-91402 Gusset, Lower Back Panel, No.2[09.1987 - 01.1997] VG4# |
58386-91402 |
US $25.48 |
||
|
62932A
|
62932A
62940-40010 Duct, Quarter Vent, Lh[12.1992 - 01.1997] VG4# |
62940-40010 |
US $42.95 |
||
|
77029B
|
77029B
77029-91401 Cover, Rear Floor Service Hole[09.1987 - 01.1997] VG4# |
77029-91401 |
US $45.72 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001011
|
9095001011
90950-01011 Grommet(For Upper Back Panel) |
90950-01011 |
US $2.72 |
||
|
9095001059
|
9095001059
90950-01059
Grommet, Safety Band Anchorage Nut
|
90950-01059 |
— | ||
|
9095001629
|
9095001629
90950-01629 New Genuine Part |
90950-01629 |
US $2.04 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
