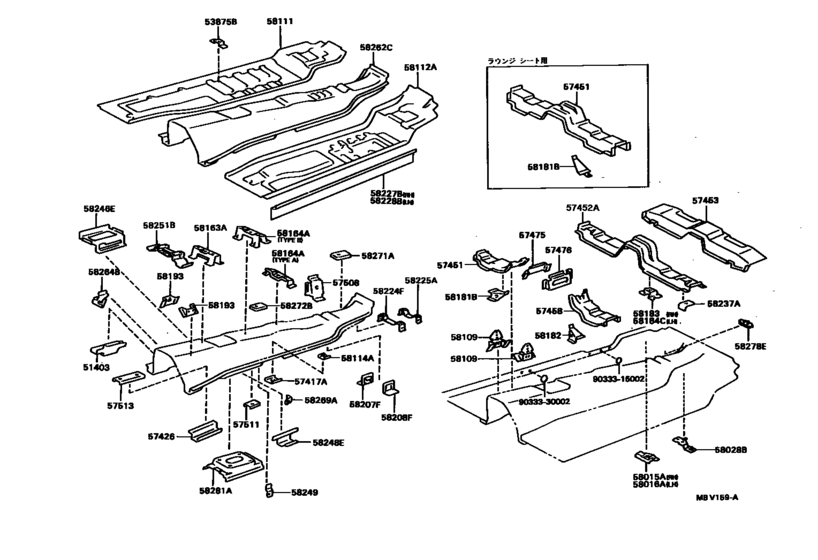

Floor Pan & Lower Back Panel ([09.1990 - ] (8709- )VG40 ; (9009- )VG45) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51403
|
51403
51403-91401 Bracket Sub-Assy, Engine Rear Mounting[09.1987 - 01.1997] VG4# |
51403-91401 |
US $51.25 |
||
|
53875B
|
53875B
53875-40010 Bracket, Air Duct Clamp[09.1990 - 01.1997] VG45 |
53875-40010 |
US $4.95 |
||
|
57417A
|
57417A
57417-91401 Reinforcement, Front Floor Under[09.1987 - 01.1997] VG4# |
57417-91401 |
US $10.92 |
||
|
57426
|
57426
57426-91401 Reinforcement, Front Floor, No.2 Lh[09.1987 - 01.1997] VG4# |
57426-91401 |
US $20.09 |
||
|
57451
|
57451
57451-40010 Member, Front Floor Cross[12.1992 - 01.1997] VG4#..4HC |
57451-40010 |
US $145.60 |
||
|
57451
|
57451
57451-40020 Member, Front Floor Cross[12.1992 - 01.1997] VG45..4HC; VG45..4FC; VG40..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
57451-40020 |
US $145.60 |
||
|
57451
|
57451
57451-91404 Member, Front Floor Cross[09.1987 - 12.1992] VG4#..4HC |
57451-91404 |
US $145.60 |
||
| replacement | |||||
|
57451
|
57451
57451-40010 Member, Front Floor Cross[09.1987 - 12.1992] VG4#..4HC |
57451-40010 |
US $145.60 |
||
|
57451
|
57451
57451-91405 Member, Front Floor Cross[09.1990 - 12.1992] VG40..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ); VG45..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
57451-91405 |
US $145.60 |
||
| replacement | |||||
|
57451
|
57451
57451-40020 Member, Front Floor Cross[09.1990 - 12.1992] VG40..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ); VG45..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
57451-40020 |
US $145.60 |
||
|
57452A
|
57452A
57452-40010 Member, Front Floor Cross, No.2[09.1990 - 12.1992] VG4# |
57452-40010 |
US $126.67 |
||
|
57452A
|
57452A
57452-40020 Member, Front Floor Cross, No.2[12.1992 - 01.1997] VG4# |
57452-40020 |
US $123.76 |
||
|
57453
|
57453
57408-40010 Member, Front Floor Cross, No.3[12.1992 - 01.1997] VG4# |
57408-40010 |
US $215.49 |
||
|
57453
|
57453
57453-91403 Member, Front Floor Cross, No.3[09.1990 - 12.1992] VG40;VG45..4HC |
57453-91403 |
US $145.60 |
||
|
57458
|
57458
57458-40010 Member, Front Floor Cross, No.1[08.1992 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ ALL |
57458-40010 |
US $145.60 |
||
|
57458
|
57458
57458-91401 Member, Front Floor Cross, No.1[09.1990 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ ALL |
57458-91401 |
US $145.60 |
||
| replacement | |||||
|
57458
|
57458
57458-40010 Member, Front Floor Cross, No.1[09.1990 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ ALL |
57458-40010 |
US $145.60 |
||
|
57475
|
57475
57475-91401 Plate, Front Floor Crossmember[09.1990 - 12.1992] VG45..4HC |
57475-91401 |
US $25.63 |
||
|
57476
|
57476
57476-91401 Plate, Front Floor Crossmember, Lh[09.1990 - 12.1992] VG45..4HC |
57476-91401 |
US $27.52 |
||
|
57508
|
57508
57508-91401 Reinforcement Sub-Assy, Safety Band Anchorage[09.1987 - 01.1997] VG4# |
57508-91401 |
US $19.22 |
||
|
57511
|
57511
57511-91401 Reinforcement, Front Floor, Center[09.1987 - 12.1992] VG4# |
57511-91401 |
US $7.72 |
||
|
57513
|
57513
57513-91401 Reinforcement, Front Floor, Lh[09.1987 - 01.1997] VG4# |
57513-91401 |
US $12.52 |
||
|
58015A
|
58015A
58015-40010 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[12.1992 - 01.1997] VG4#..4HC |
58015-40010 |
US $17.18 |
||
|
58016A
|
58016A
58016-40010 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[12.1992 - 01.1997] VG45;VG40..4FC |
58016-40010 |
US $17.18 |
||
|
58028B
|
58028B
58028-40010 Reinforce Sub-Assy, Seat Belt Anchor, Lh[12.1992 - 01.1997] VG4# |
58028-40010 |
US $40.77 |
||
|
58109
|
58109
58109-40010 Bracket Sub-Assy, Instrument Panel Brace Mounting[12.1992 - 01.1997] VG4# |
58109-40010 |
US $18.78 |
||
|
58111
|
58111
58111-40040 Pan, Front Floor[12.1992 - 01.1997] VG45 |
58111-40040 |
US $713.44 |
||
|
58111
|
58111
58111-91405 Pan, Front Floor[09.1990 - 12.1992] VG45..4HC |
58111-91405 |
US $711.98 |
||
|
58112A
|
58112A
58112-40020 Panel, Front Floor, Lh[12.1992 - 01.1997] VG45 |
58112-40020 |
US $677.04 |
||
|
58112A
|
58112A
58112-91404 Panel, Front Floor, Lh[09.1990 - 12.1992] VG45 |
58112-91404 |
US $711.98 |
||
|
58114A
|
58114A
58114-91401 Reinforcement, Front Floor Panel[09.1987 - 01.1997] VG4# |
58114-91401 |
US $4.95 |
||
|
58181B
|
58181B
58181-91401 Bracket, Front Seat Inside Mounting, Front Rh[09.1987 - 01.1997] VG4# |
58181-91401 |
US $13.10 |
||
|
58182
|
58182
58182-91401 Bracket, Front Seat Inside Mounting, Front Lh[09.1987 - 01.1997] VG4# |
58182-91401 |
US $13.10 |
||
|
58183
|
58183
58183-91402 Bracket, Front Seat Mounting, Inner[09.1987 - 01.1997] VG4# |
58183-91402 |
US $9.90 |
||
|
58184C
|
58184C
58184-91402 Bracket, Front Seat Mounting, Inner Lh[09.1987 - 01.1997] VG4# |
58184-91402 |
US $9.90 |
||
|
58193
|
58193
58193-91402 Bracket, Instrument Panel Brace Mounting[09.1987 - 01.1997] VG4# |
58193-91402 |
US $9.46 |
||
|
58207F
|
58207F
58207-91403 Clamp Sub-Assy, Parking Brake Cable, Rh[09.1987 - 01.1997] VG4# |
58207-91403 |
US $10.92 |
||
|
58208F
|
58208F
58208-91402 Clamp Sub-Assy, Parking Brake Cable, Lh[09.1987 - 01.1997] VG4# |
58208-91402 |
US $10.92 |
||
|
58224F
|
58224F
58224-40010 Reinforcement, Header Panel, No.3[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ ALL |
58224-40010 |
US $18.05 |
||
|
58225A
|
58225A
58225-40020 Bracket, Center Mounting[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ ALL |
58225-40020 |
US $12.38 |
||
|
58227B
|
58227B
57411-40900 Plate, Front Floor Panel Side, Rh[09.1990 - 01.1997] VG45 |
57411-40900 |
US $145.60 |
||
|
58227B
|
58227B
58227-91493 Plate, Front Floor Panel Side, Rh[09.1990 - 12.1992] VG45..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) & ﾘﾑｼﾞﾝALL |
58227-91493 |
US $416.42 |
||
|
58228B
|
58228B
57412-40900 Plate, Front Floor Panel Side, Lh[09.1990 - 01.1997] VG45 |
57412-40900 |
US $145.60 |
||
|
58228B
|
58228B
58228-91493 Plate, Front Floor Panel Side, Lh[09.1990 - 12.1992] VG45..4HC ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) & ﾘﾑｼﾞﾝALL |
58228-91493 |
US $416.42 |
||
|
58237A
|
58237A
58237-91403 Bracket, Front Seat[09.1987 - 01.1997] VG4# |
58237-91403 |
US $5.97 |
||
|
58246E
|
58246E
58246-91402 Reinforce, Parking Brake Equalizer Mounting[09.1987 - 01.1997] VG4# |
58246-91402 |
US $18.20 |
||
|
58248E
|
58248E
58248-91401 Reinforcement, Parking Brake Equalizer Support, Lh[09.1987 - 01.1997] VG4# |
58248-91401 |
US $12.52 |
||
|
58249
|
58249
58249-91401 Hanger, Parking Brake Return Spring[09.1987 - 01.1997] VG4# |
58249-91401 |
US $4.22 |
||
|
58251B
|
58251B
58251-40010 Brace, Floor Panel, Front[12.1992 - 01.1997] VG4# |
58251-40010 |
US $28.10 |
||
|
58262C
|
58262C
58262-40030 Cover, Transmission, Rear[12.1992 - 01.1997] VG45..4HC |
58262-40030 |
US $744.02 |
||
|
58262C
|
58262C
58262-91412 Cover, Transmission, Rear[09.1990 - 12.1992] VG45..4HC |
58262-91412 |
US $744.02 |
||
|
58264B
|
58264B
58264-91404 Bracket, Parking Brake Cable Guide[09.1987 - 01.1997] VG4# |
58264-91404 |
US $8.74 |
||
|
58269A
|
58269A
58269-91403 Bracket, Parking Brake Cable Guide, No.3[09.1987 - 01.1997] VG4# |
58269-91403 |
US $3.93 |
||
|
58271A
|
58271A
58271-91402 Reinforcement, Belt Anchor To Floor Pan, No.3[09.1987 - 12.1992] VG4# |
58271-91402 |
US $21.11 |
||
|
58271A
|
58271A
58298-40010 Reinforcement, Belt Anchor To Floor Pan, No.3[08.1992 - 12.1992] VG45..4HC |
58298-40010 |
US $19.22 |
||
|
58272B
|
58272B
58272-91402 Reinforcement, Belt Anchor To Floor Pan, No.4[09.1987 - 01.1997] VG4#..4HC |
58272-91402 |
US $27.52 |
||
|
58278E
|
58278E
58278-40010 Reinforcement, Side Floor, No.2[12.1992 - 01.1997] VG45;VG40..4FC |
58278-40010 |
US $7.43 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
