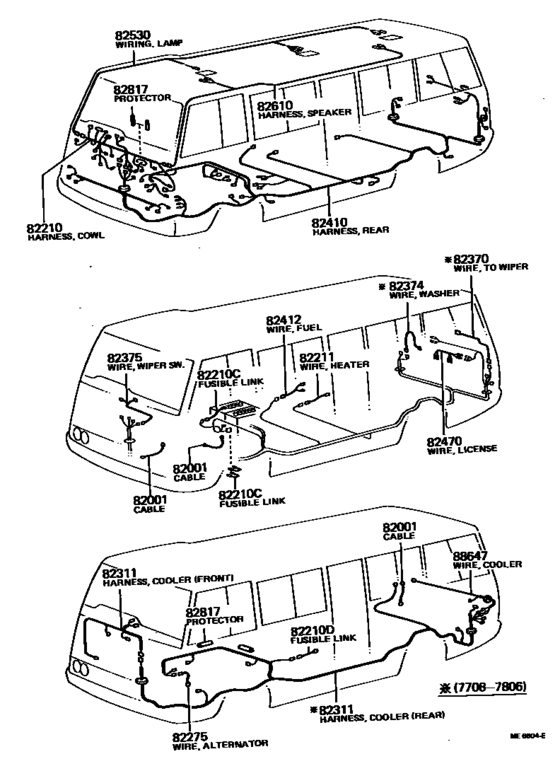

Wiring & Clamp ([08.1977 - 11.1979] (7708-7911)) Diagram Toyota COASTER
- Year
- 1977 - 1979
- Sales region
- Japan
- Frame
- BB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2B
- Model
- COASTER
- From
- 08.1977
- To
- 11.1979
- Gear Shift Type
- 5H
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07063 Cable, Bond, No.1BOND, NO.1 [08.1977 - 03.1981] BB1# L=300 |
90980-07063 |
US $23.44 |
||
|
82210
|
82210
82210-90742
Harness Assy, Wiring Cowl To Headlamp, No.1
[08.1977 - 11.1979] BB10 |
82210-90742 |
— | ||
|
82210C
|
82210C
90982-08036 Fusible Link[08.1977 - 04.1982] BB1#,RB1# L=100, 0.5G |
90982-08036 |
US $5.68 |
||
|
82210C
|
82210C
90982-08038 Fusible Link[08.1977 - 02.1980] BB1#,RB1# L=110,1.0B |
90982-08038 |
US $6.84 |
||
|
82210C
|
82210C
90982-08042 Fusible Link[08.1977 - 04.1982] BB1#,RB1# L=100, 0.85R |
90982-08042 |
US $7.28 |
||
|
82275
|
82275
82261-90740
Wire, Alternator
[08.1977 - 11.1979] BB10..DLX,STD COLD SPEC |
82261-90740 |
— | ||
|
82370
|
82370
82375-90740
Wire Assy, Wiper Switch To Wiper
[08.1977 - 06.1978] BB10,RB11..BC;BB10,RB11..DLX RR WIPER |
82375-90740 |
— | ||
|
82374
|
82374
82374-90740
Wire, Washer
[08.1977 - 06.1978] BB10,RB11..BC;BB10,RB11..DLX RR WIPER |
82374-90740 |
— | ||
|
82375
|
82375
82305-90740
Wire, Wiper Switch
[08.1977 - 08.1980] BB1#,RB1#..BC;BB1#,RB1#..DLX RR WIPER |
82305-90740 |
— | ||
|
82410
|
82410
82410-90745
Harness Assy, Wiring To Rear Lamp
[08.1977 - 06.1978] BB10..21S,22S,25S,26S |
82410-90745 |
— | ||
|
82410
|
82410
82410-90758
Harness Assy, Wiring To Rear Lamp
[06.1978 - 11.1978] BB10..DLX,STD |
82410-90758 |
— | ||
|
82412
|
82412
82412-90741
Wire, Fuel Gage
[08.1977 - 11.1979] BB10 |
82412-90741 |
— | ||
|
82470
|
82470
82470-90501
Wire Assy, License Lamp Feed
[08.1977 - 06.1978] BB10,RB11..21S,22S,25S,26S |
82470-90501 |
— | ||
|
82470
|
82470
82470-90503
Wire Assy, License Lamp Feed
[06.1978 - 11.1979] BB10,RB11..BC;BB10,RB11..DLX |
82470-90503 |
— | ||
|
82530
|
82530
82530-90740
Wiring Assy, Interior Lamp Feed
[08.1977 - 11.1979] BB10,RB11..(21S,22S,25S,26S)..SRF |
82530-90740 |
— | ||
|
82610
|
82610
82402-90740
Harness Assy, Roof Speaker
[08.1977 - 11.1979] BB10,RB11..SRF |
82402-90740 |
— | ||
|
82817
|
82817
82718-95700
Protector, Clutch Tube
[01.1978 - 04.1982] BB1#,RB1# L=130 |
82718-95700 |
— | ||
|
82817
|
82817
82817-90300
Protector, Wiring Harness, No.1
[01.1978 - 08.1978] BB10,RB11 L=60 |
82817-90300 |
— | ||
|
82817
|
82817
82817-90502
Protector, Wiring Harness, No.1
[01.1978 - 04.1982] BB1#,RB1# L=160 |
82817-90502 |
— | ||
|
82817
|
82817
82817-95600 Protector, Wiring Harness, No.1[08.1977 - 04.1982] BB1#,RB1# L=80 |
82817-95600 |
US $3.93 |
