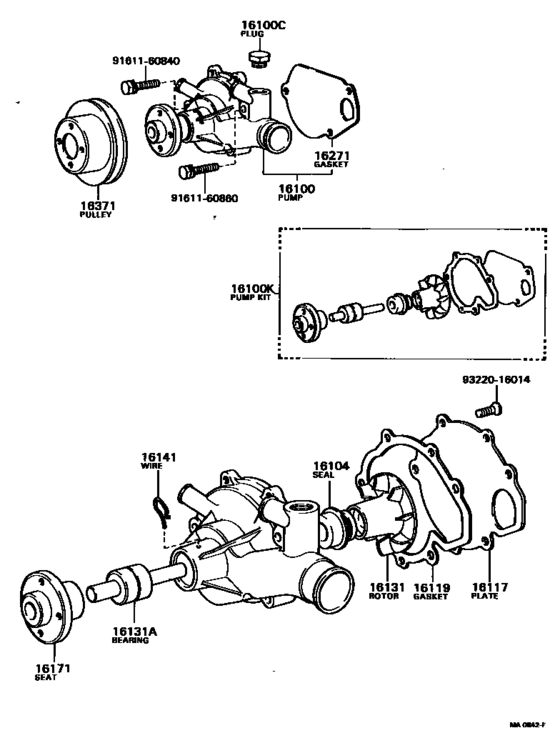

Water Pump ([08.1977 - 08.1980] (7708-8008)2B) Diagram Toyota COASTER
- Year
- 1979 - 1982
- Sales region
- Europe
- Frame
- BB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2B
- DESTINATION
- GEN
- Model
- COASTER
- From
- 11.1979
- To
- 04.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59055
Pump Assy, Engine Water
[05.1979 - 08.1980] 2B..BB10..DLX,STD IRON |
16100-59055 |
— | ||
|
16100
|
16100
16100-59075 Pump Assy, Engine Water[08.1980 - 04.1982] 2B..BB10..DLX,STD |
16100-59075 |
US $260.62 |
||
| replacement | |||||
|
16100
|
16100
16100-59076 Pump Assy, Engine Water[08.1980 - 04.1982] 2B..BB10..DLX,STD |
16100-59076 |
from US $185.23 |
||
|
16100C
|
16100C
15184-15010
Plug, Taper Screw(For Oil Filter Bracket)
[08.1980 - 04.1982] 2B..BB10 |
15184-15010 |
— | ||
|
16100C
|
16100C
90345-54002
Plug, W/head Taper Screw, No.1
[05.1978 - 08.1980] 2B..BB10 W/O HEATER |
90345-54002 |
— | ||
|
16100K
|
16100K
04161-56020 Pump Kit, WaterWATER [08.1977 - 08.1980] 2B..BB10..DLX,STD |
04161-56020 |
US $117.94 |
||
| replacement | |||||
|
16100K
|
16100K
04161-56021
Pump Kit, Water
[08.1977 - 08.1980] 2B..BB10..DLX,STD |
04161-56021 |
— | ||
|
16100K
|
16100K
04161-56040
Pump Kit, Water
[08.1980 - 04.1982] 2B..BB10..DLX,STD |
04161-56040 |
— | ||
| replacement | |||||
|
16100K
|
16100K
04161-56042
Pump Kit, Water
[08.1980 - 04.1982] 2B..BB10..DLX,STD |
04161-56042 |
— | ||
|
16104
|
16104
16104-41110
Seal Set, Water Pump
[08.1977 - 08.1980] 2B..BB10..DLX,STD; 20R,5R..RB1# |
16104-41110 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[08.1977 - 08.1980] 2B..BB10..DLX,STD; 20R,5R..RB1# |
16104-15020 |
US $22.15 |
||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[08.1980 - 04.1982] 22R..RB13; 2B..BB10..DLX,STD |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[08.1980 - 04.1982] 22R..RB13; 2B..BB10..DLX,STD |
16104-15020 |
US $22.15 |
||
|
16117
|
16117
16117-56010
Plate, Water Pump
[08.1977 - 08.1980] 2B..BB10 |
16117-56010 |
— | ||
|
16117
|
16117
16117-56040 Plate, Water Pump[08.1980 - 04.1982] 2B..BB10 |
16117-56040 |
US $22.13 |
||
|
16119
|
16119
16119-56010
Gasket, Water Pump Body
[08.1977 - 08.1980] 2B..BB10 |
16119-56010 |
— | ||
|
16119
|
16119
16119-56040
Gasket, Water Pump Body
[08.1980 - 04.1982] 2B..BB10 |
16119-56040 |
— | ||
| replacement | |||||
|
16119
|
16119
16119-56041
Gasket, Water Pump Body
[08.1980 - 04.1982] 2B..BB10 |
16119-56041 |
— | ||
|
16131
|
16131
16131-56020
Rotor, Water Pump
[08.1977 - 08.1980] 2B..BB10..DLX,STD |
16131-56020 |
— | ||
|
16131
|
16131
16131-56030 Rotor, Water Pump[08.1980 - 04.1982] 2B..BB10..DLX,STD |
16131-56030 |
US $15.43 |
||
|
16131A
|
16131A
90369-30028
Bearing, Water Pump
[08.1977 - 04.1982] 2B..BB10..DLX,STD WPB16112-2RS |
90369-30028 |
— | ||
|
16141
|
16141
16141-60010
Wire, Water Pump Bearing Retaining
[05.1979 - 04.1982] 2B..BB10..DLX,STD |
16141-60010 |
— | ||
|
16171
|
16171
16171-56010 Seat, Water Pump Pulley[08.1977 - 04.1982] 2B..BB10..DLX,STD |
16171-56010 |
US $24.17 |
||
|
16271
|
16271
16271-56012
Gasket, Water Pump
[08.1977 - 08.1980] 2B..BB10 |
16271-56012 |
— | ||
|
16271
|
16271
16271-56020
Gasket, Water Pump
[08.1980 - 04.1982] 2B..BB10 |
16271-56020 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[08.1980 - 04.1982] 2B..BB10 |
16271-58010 |
US $18.09 |
||
|
16371
|
16371
16371-56010
Pulley, Fan
[08.1977 - 08.1980] 2B..BB10..DLX,STD |
16371-56010 |
— | ||
|
16371
|
16371
16371-56020
Pulley, Fan
[08.1980 - 04.1982] 2B..BB10 |
16371-56020 |
— | ||
| replacement | |||||
|
16371
|
16371
16371-56021
Pulley, Fan
[08.1980 - 04.1982] 2B..BB10 |
16371-56021 |
— | ||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.54 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.60 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
