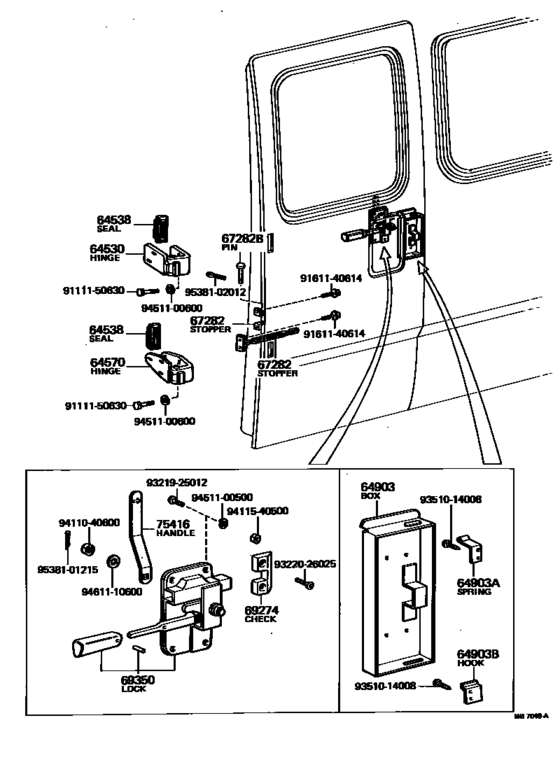

Back Door Lock & Hinge ([08.1977 - ] (7708- )39C) Diagram Toyota COASTER
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- BB11
- grade
- STD
- Roof
- SRF
- ENGINE
- 2B
- Model
- COASTER
- From
- 11.1979
- To
- 04.1982
- Gear Shift Type
- 5F
- Seating Capacity
- 39C
- Vehicle Model
- Coaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64530
|
64530
64530-90503
Hinge Assy, Back Door, Upper
[08.1977 - 04.1982] BB1#,RB1#..39C |
64530-90503 |
— | ||
|
64538
|
64538
64538-90502
Seal, Back Door Hinge
[08.1977 - 04.1982] BB1#,RB1#..39C |
64538-90502 |
— | ||
|
64570
|
64570
64570-90501
Hinge Assy, Back Door, Lower
[08.1977 - 04.1982] BB1#,RB1#..39C |
64570-90501 |
— | ||
|
64903
|
64903
64901-90501
Box Sub-Assy, Back Door Inner Handle
[08.1977 - 04.1982] BB1#,RB1#..39C |
64901-90501 |
— | ||
|
64903A
|
64903A
64911-90500 Spring, Back Door Inner Handle Box[08.1977 - 09.1980] BB1#,RB1#..39C |
64911-90500 |
US $16.31 |
||
| replacement | |||||
|
64903A
|
64903A
64911-90501
Spring, Back Door Inner Handle Box
[08.1977 - 09.1980] BB1#,RB1#..39C |
64911-90501 |
— | ||
|
64903A
|
64903A
64911-90501
Spring, Back Door Inner Handle Box
[09.1980 - 04.1982] BB11,RB13..39C |
64911-90501 |
— | ||
|
64903B
|
64903B
64912-90500
Hook, Back Door Inner Handle Box
[08.1977 - 04.1982] BB1#,RB1#..39C |
64912-90500 |
— | ||
|
67282
|
67282
64577-90500
Stopper, Back Door, No.1
[08.1977 - 04.1982] BB1#,RB1#..39C DOOR SIDE |
64577-90500 |
— | ||
|
67282
|
67282
64580-90501
Stopper, Back Door, No.1
[08.1977 - 04.1982] BB1#,RB1#..39C BODY SIDE |
64580-90501 |
— | ||
|
67282B
|
67282B
64576-90500
Pin, Back Door Stopper, Door Side
[08.1977 - 04.1982] BB1#,RB1#..39C |
64576-90500 |
— | ||
|
69274
|
69274
64124-90500
Check, Back Door Lock
[08.1977 - 04.1982] BB1#,RB1#..39C |
64124-90500 |
— | ||
|
69350
|
69350
64540-90500
Lock Assy, Back Door
[08.1977 - 04.1982] BB1#,RB1#..39C |
64540-90500 |
— | ||
|
75416
|
75416
64551-90500
Handle, Tail Gate, Inside
[08.1977 - 04.1982] BB1#,RB1#..39C |
64551-90500 |
— | ||
|
9111150630
|
9111150630
91111-50630 New Genuine Part |
91111-50630 |
US $2.33 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9321925012
|
9321925012
93219-25012 New Genuine Part |
93219-25012 |
US $1.75 |
||
|
9322026025
|
9322026025
93220-26025
New Genuine Part
|
93220-26025 |
— | ||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
|
9538101215
|
9538101215
95381-01215 New Genuine Part |
95381-01215 |
US $2.62 |
||
|
9538102012
|
9538102012
95381-02012
New Genuine Part
|
95381-02012 |
— | ||
