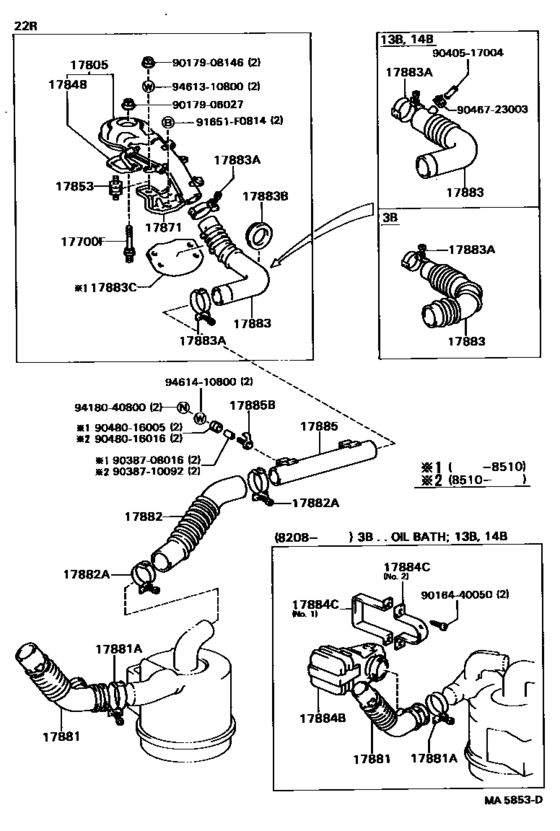

Air Cleaner ([05.1982 - ] (8205- )13B,14B,3B) Diagram Toyota COASTER
- Year
- 1982 - 1986
- Sales region
- Europe
- Frame
- BB20
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3B
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1986
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17881
|
17881
17781-90B00
Hose, Air Cleaner, No.1
[08.1982 - 10.1985] 3B..BB20..GEN SNORKEL TYPE |
17781-90B00 |
— | ||
|
17881
|
17881
17781-90B01 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1985 - 01.1993] 3B..BB20,21..22S,25S,26S SNORKEL TYPE; 22R..RB20..GEN,ME SNORKEL TYPE |
17781-90B01 |
US $56.06 |
||
|
17881
|
17881
59131-90B00 Hose, Air Cleaner, No.1[05.1982 - 01.1987] 3B..BB20,21,30; 22R..RB20 |
59131-90B00 |
US $55.18 |
||
|
17881
|
17881
59131-90B02 Hose, Air Cleaner, No.1[08.1982 - 10.1985] 3B..BB20..GEN OIL BATH |
59131-90B02 |
US $37.42 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[05.1982 - 01.1987] 3F..FB30; 22R..RB20; 13B,3B..BB2#,30; 2H..HB30 |
96111-10750 |
from US $3.04 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[10.1985 - 04.1990] 3B..BB20,21..22S,25S,26S SNORKEL TYPE; 22R..RB20..GEN,ME SNORKEL TYPE |
96111-10830 |
from US $2.88 |
||
|
17882
|
17882
59132-90B02 Hose, Air Cleaner, No.2[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 22R..RB20 |
59132-90B02 |
US $206.75 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30 |
96111-10780 |
from US $3.61 |
||
|
17883
|
17883
59133-90B00
Hose, Air Cleaner, No.3
[05.1982 - 01.1993] 3B..BB20,21,30 |
59133-90B00 |
— | ||
|
17883A
|
17883A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[05.1982 - 01.1993] 3B..BB20,21,30 VENTURI SIDE |
96111-10710 |
from US $2.56 |
||
|
17883A
|
17883A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3# PIPE SIDE |
96111-10780 |
from US $3.61 |
||
|
17883B
|
17883B
90480-99005 Grommet, Air Cleaner Hose[10.1985 - 09.1986] 22R..RB20..GEN,ME SNORKEL TYPE,NO.2; 3B..BB20..22S,26S SNORKEL TYPE,NO.2 |
90480-99005 |
US $30.87 |
||
|
17883B
|
17883B
90480-99006 Grommet, Air Cleaner Hose[10.1985 - 01.1993] 13B,3B..BB20,21,22,30; 3F..FB30; 2H..HB30; 22R..RB20; 3B..BB20,21..22S,25S,26S SNORKEL TYPE,NO.1; 22R..RB20..GEN,ME SNORKEL TYPE,NO.1 |
90480-99006 |
US $30.87 |
||
|
17883B
|
17883B
90950-01349 Grommet, Air Cleaner Hose[05.1982 - 10.1985] 22R..RB20; 3B..BB20,30 |
90950-01349 |
US $18.93 |
||
|
17884B
|
17884B
59137-90B00 Box, Air Cleaner, No.1[08.1982 - 10.1985] 3B..BB20..GEN OIL BATH |
59137-90B00 |
US $24.75 |
||
|
17884C
|
17884C
59135-90B00 Band, Air Cleaner Box[08.1982 - 10.1985] 3B..BB20..GEN OIL BATH,NO.2 |
59135-90B00 |
US $11.07 |
||
|
17884C
|
17884C
59136-90B00 Band, Air Cleaner Box[08.1982 - 10.1985] 3B..BB20..GEN OIL BATH,NO.1 |
59136-90B00 |
US $15.58 |
||
|
17885
|
17885
59101-90B00 Pipe, Air Cleaner[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30; 22R..RB20 |
59101-90B00 |
US $149.97 |
||
|
17885B
|
17885B
59117-90B00 Plate, Pipe Support[05.1982 - 10.1985] 22R..RB20; 3B..BB20,30 |
59117-90B00 |
US $18.05 |
||
|
17885B
|
17885B
59117-90B01 Plate, Pipe Support[10.1985 - 01.1993] 3F..FB30; 13B,14B,3B..BB2#,3#; 22R..RB20; 12HT,1H#,2H..HB3#,HDB30,HZB30 |
59117-90B01 |
US $18.05 |
||
|
91651F0814
|
91651F0814
91651-F0814 New Genuine Part |
91651-F0814 |
US $1.16 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.82 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $3.84 |
||
|
9038710092
|
9038710092
90387-10092 New Genuine Part |
90387-10092 |
US $2.48 |
||
|
9040517004
|
9040517004
90405-17004 New Genuine Part |
90405-17004 |
US $3.79 |
||
|
9046723003
|
9046723003
90467-23003
Clip(For Ventilation Hose)
|
90467-23003 |
— | ||
| replacement | |||||
|
9046723003
|
9046723003
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.44 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $9.92 |
||
|
9048016016
|
9048016016
90480-16016 New Genuine Part |
90480-16016 |
US $1.46 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
