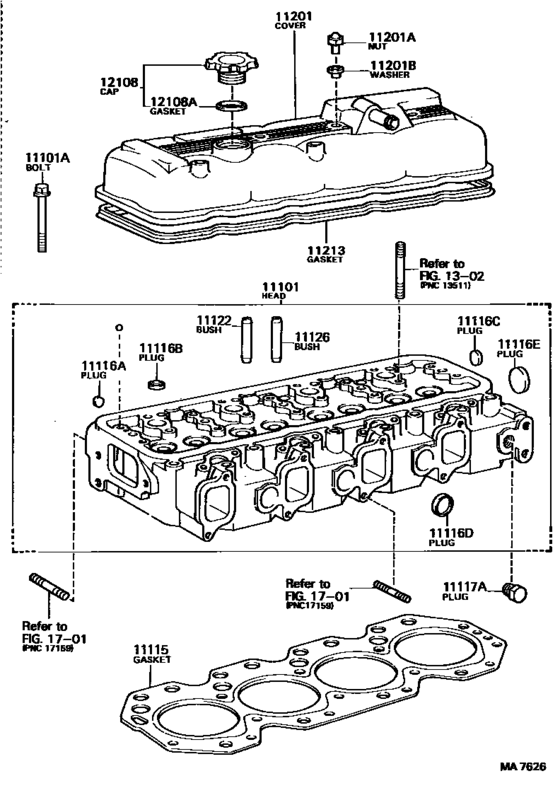

Cylinder Head ([10.1985 - 08.1988] (8510-8808)13B) Diagram Toyota COASTER
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- BB22
- grade
- STD
- Roof
- HRF
- ENGINE
- 13B
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 15S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58020
Head Sub-Assy, Cylinder
[10.1985 - 08.1988] 13B..BB22 |
11101-58020 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-58021 Head Sub-assy, Cylinder[10.1985 - 08.1988] 13B..BB22 |
11101-58021 |
US $1,907.36 |
||
|
11101
|
11101
90201-14022
New Genuine Part
[10.1985 - 08.1988] 13B..BB22 |
90201-14022 |
— | ||
|
11101A
|
11101A
90910-02046 Bolt(For Cylinder Head Set)[05.1982 - 08.1988] 13B,3B..BB2#,30 *12-1.25PX119-25 |
90910-02046 |
from US $8.68 |
||
|
11115
|
11115
11115-58050
Gasket, Cylinder Head
[10.1985 - 08.1988] 13B..BB22 T=1.60 |
11115-58050 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58110 Gasket, Cylinder Head[10.1985 - 08.1988] 13B..BB22 T=1.60 |
11115-58110 |
from US $107.07 |
||
|
11116A
|
11116A
96411-41200 Plug, Tight, No.1[09.1985 - 01.1993] 13B,14B,3B..BB2#,3# OD=12 |
96411-41200 |
from US $3.20 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[09.1985 - 08.1988] 3F..FB30 OD=25; 12HT,2H..HB3# OD=25; 13B,3B..BB2#,30 OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
90331-21001 Plug, Tight, No.3[05.1982 - 01.1993] 13B,14B,3B..BB2#,3# OD=21 |
90331-21001 |
US $2.88 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[09.1985 - 01.1993] 13B,14B,3B..BB2#,3# OD=28 |
96411-42800 |
from US $2.91 |
||
|
11116E
|
11116E
90331-40024
Plug, Tight, No.5
[05.1982 - 11.1987] 13B,3B..BB2#,30 OD=40 |
90331-40024 |
— | ||
| replacement | |||||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[05.1982 - 11.1987] 13B,3B..BB2#,30 OD=40 |
96411-44000 |
from US $4.19 |
||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[11.1987 - 01.1993] 13B,14B,3B..BB2#,3# OD=40 |
96411-44000 |
from US $4.19 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[05.1982 - 01.1993] 13B,14B,3B..BB2#,3# |
90345-54005 |
from US $3.88 |
||
|
11122
|
11122
11122-56021
Bush, Intake Valve Guide
[08.1983 - 08.1988] 13B,3B..BB2#,30 STD,STD |
11122-56021 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[08.1983 - 08.1988] 13B,3B..BB2#,30 STD,STD |
11122-56030 |
from US $7.33 |
||
|
11126
|
11126
11122-56021
Bush, Intake Valve Guide
[08.1983 - 08.1988] 13B,3B..BB2#,30 STD,STD |
11122-56021 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[08.1983 - 08.1988] 13B,3B..BB2#,30 STD,STD |
11122-56030 |
from US $7.33 |
||
|
11201
|
11201
11201-56090 Cover Sub-Assy, Cylinder Head[10.1985 - 08.1988] 13B..BB22 |
11201-56090 |
US $200.93 |
||
|
11201A
|
11201A
11295-46010
Nut, Cap(For Cylinder Head Cover)
[05.1982 - 08.1988] 13B,3B..BB2#,30 |
11295-46010 |
— | ||
|
11201B
|
11201B
90210-12001 Washer, Seal(For Cylinder Head Cover)[05.1982 - 08.1988] 13B,3B..BB2#,30 |
90210-12001 |
US $10.72 |
||
|
11213
|
11213
11213-56020
Gasket, Cylinder Head Cover
[10.1985 - 08.1988] 13B..BB22 |
11213-56020 |
— | ||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
90430-37140 |
from US $1.21 |
||
