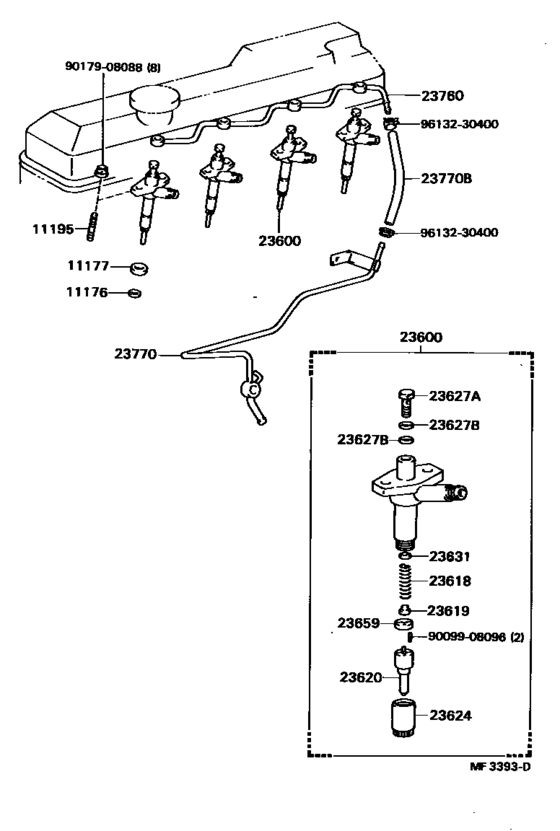

Injection Nozzle ([10.1985 - 08.1988] (8510-8808)13B) Diagram Toyota COASTER
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- BB22
- grade
- STD
- Roof
- HRF
- ENGINE
- 13B
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 15S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-56020 Seat, Injection Nozzle[10.1985 - 08.1988] 13B..BB22; 12HT..HB31 |
11176-56020 |
from US $3.45 |
||
|
11177
|
11177
90430-17003 Gasket, Injection Nozzle Seat[10.1985 - 01.1993] 13B,14B..BB22,23,32 |
90430-17003 |
from US $0.90 |
||
|
11195
|
11195
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
[10.1985 - 08.1988] 13B..BB22 |
92132-60835 |
— | ||
|
23600
|
23600
23600-58010
Holder & Nozzle Set, Nozzle
[10.1985 - 08.1988] 13B..BB22 |
23600-58010 |
— | ||
|
23618
|
23618
23618-58010
Spring, Nozzle Holder Pressure
[10.1985 - 08.1988] 13B..BB22; 12HT..HB31 |
23618-58010 |
— | ||
|
23619
|
23619
23619-58010
Pin, Nozzle Holder Pressure
[10.1985 - 01.1993] 13B..BB22; 12HT..HB31 |
23619-58010 |
— | ||
|
23620
|
23620
23620-58010 Nozzle Assy[10.1985 - 08.1988] 13B..BB22 |
23620-58010 |
US $141.23 |
||
|
23624
|
23624
23624-58010
Nut, Nozzle Retaining
[10.1985 - 01.1993] 12HT..HB31; 13B,14B..BB22,23,32 |
23624-58010 |
— | ||
|
23627A
|
23627A
23625-58230 Screw, Follow(For Nozzle)[10.1985 - 01.1993] 13B,14B..BB22,23,32; 12HT,1HDT..HB31,HDB30 |
23625-58230 |
US $8.01 |
||
|
23627B
|
23627B
90201-08106 Washer(For Cap Nut)[10.1985 - 01.1993] 13B,14B..BB22,23,32; 12HT,1HDT..HB31,HDB30 |
90201-08106 |
from US $0.80 |
||
|
23631
|
23631
23631-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.000; 12HT,1HDT..HB31,HDB30 T=1.000 |
23631-58010 |
— | ||
|
23631
|
23631
23631-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.050; 12HT,1HDT..HB31,HDB30 T=1.050 |
23631-58011 |
— | ||
|
23631
|
23631
23631-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.100; 12HT,1HDT..HB31,HDB30 T=1.100 |
23631-58012 |
— | ||
|
23631
|
23631
23631-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.150; 12HT,1HDT..HB31,HDB30 T=1.150 |
23631-58013 |
— | ||
|
23631
|
23631
23631-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.200; 12HT,1HDT..HB31,HDB30 T=1.200 |
23631-58014 |
— | ||
|
23631
|
23631
23631-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.250; 12HT,1HDT..HB31,HDB30 T=1.250 |
23631-58015 |
— | ||
|
23631
|
23631
23631-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.300; 12HT,1HDT..HB31,HDB30 T=1.300 |
23631-58016 |
— | ||
|
23631
|
23631
23631-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.350; 12HT,1HDT..HB31,HDB30 T=1.350 |
23631-58017 |
— | ||
|
23631
|
23631
23631-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.400; 12HT,1HDT..HB31,HDB30 T=1.400 |
23631-58018 |
— | ||
|
23631
|
23631
23631-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.450; 12HT,1HDT..HB31,HDB30 T=1.450 |
23631-58019 |
— | ||
|
23631
|
23631
23632-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.500; 12HT,1HDT..HB31,HDB30 T=1.500 |
23632-58010 |
— | ||
|
23631
|
23631
23632-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.550; 12HT,1HDT..HB31,HDB30 T=1.550 |
23632-58011 |
— | ||
|
23631
|
23631
23632-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.600; 12HT,1HDT..HB31,HDB30 T=1.600 |
23632-58012 |
— | ||
|
23631
|
23631
23632-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.650; 12HT,1HDT..HB31,HDB30 T=1.650 |
23632-58013 |
— | ||
|
23631
|
23631
23632-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.700; 12HT,1HDT..HB31,HDB30 T=1.700 |
23632-58014 |
— | ||
|
23631
|
23631
23632-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.750; 12HT,1HDT..HB31,HDB30 T=1.750 |
23632-58015 |
— | ||
|
23631
|
23631
23632-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.800; 12HT,1HDT..HB31,HDB30 T=1.800 |
23632-58016 |
— | ||
|
23631
|
23631
23632-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.275; 12HT,1HDT..HB31,HDB30 T=1.275 |
23632-58017 |
— | ||
|
23631
|
23631
23632-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.325; 12HT,1HDT..HB31,HDB30 T=1.325 |
23632-58018 |
— | ||
|
23631
|
23631
23632-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.375; 12HT,1HDT..HB31,HDB30 T=1.375 |
23632-58019 |
— | ||
|
23631
|
23631
23633-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.425; 12HT,1HDT..HB31,HDB30 T=1.425 |
23633-58010 |
— | ||
|
23631
|
23631
23633-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.475; 12HT,1HDT..HB31,HDB30 T=1.475 |
23633-58011 |
— | ||
|
23631
|
23631
23633-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.950; 12HT,1HDT..HB31,HDB30 T=0.950 |
23633-58012 |
— | ||
|
23631
|
23631
23633-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.700; 12HT,1HDT..HB31,HDB30 T=0.700 |
23633-58013 |
— | ||
|
23631
|
23631
23633-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.750; 12HT,1HDT..HB31,HDB30 T=0.750 |
23633-58014 |
— | ||
|
23631
|
23631
23633-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.800; 12HT,1HDT..HB31,HDB30 T=0.800 |
23633-58015 |
— | ||
|
23631
|
23631
23633-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.850; 12HT,1HDT..HB31,HDB30 T=0.850 |
23633-58016 |
— | ||
|
23631
|
23631
23633-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.900; 12HT,1HDT..HB31,HDB30 T=0.900 |
23633-58017 |
— | ||
|
23631
|
23631
23633-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=0.975; 12HT,1HDT..HB31,HDB30 T=0.975 |
23633-58018 |
— | ||
|
23631
|
23631
23633-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.025; 12HT,1HDT..HB31,HDB30 T=1.025 |
23633-58019 |
— | ||
|
23631
|
23631
23634-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.075; 12HT,1HDT..HB31,HDB30 T=1.075 |
23634-58010 |
— | ||
|
23631
|
23631
23634-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.125; 12HT,1HDT..HB31,HDB30 T=1.125 |
23634-58011 |
— | ||
|
23631
|
23631
23634-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.175; 12HT,1HDT..HB31,HDB30 T=1.175 |
23634-58012 |
— | ||
|
23631
|
23631
23634-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1993] 13B..BB22 T=1.225; 12HT,1HDT..HB31,HDB30 T=1.225 |
23634-58013 |
— | ||
|
23659
|
23659
23659-58010
Packing, Tip(For Nozzle)
[10.1985 - 01.1993] 13B..BB22; 12HT..HB31 |
23659-58010 |
— | ||
|
23760
|
23760
23760-56050
Pipe Assy, Nozzle Leakage
[10.1985 - 08.1988] 13B..BB22 |
23760-56050 |
— | ||
|
23770
|
23770
23770-56070
Pipe Assy, Nozzle Leakage, No.2
[10.1985 - 08.1988] 13B..BB22 |
23770-56070 |
— | ||
|
23770B
|
23770B
95332-04020
Hose, Lpg Injector
[10.1985 - 02.1987] 13B..BB22 *H,L=150 |
95332-04020 |
— | ||
| replacement | |||||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[10.1985 - 02.1987] 13B..BB22 *H,L=150 |
95333-04020 |
from US $4.68 |
||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[02.1987 - 08.1988] 13B..BB22 *H,L=150; 3B..BB21,30 *H,L=110 |
95333-04020 |
from US $4.68 |
||
|
9009908096
|
9009908096
90099-08096
New Genuine Part
|
90099-08096 |
— | ||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.58 |
||
