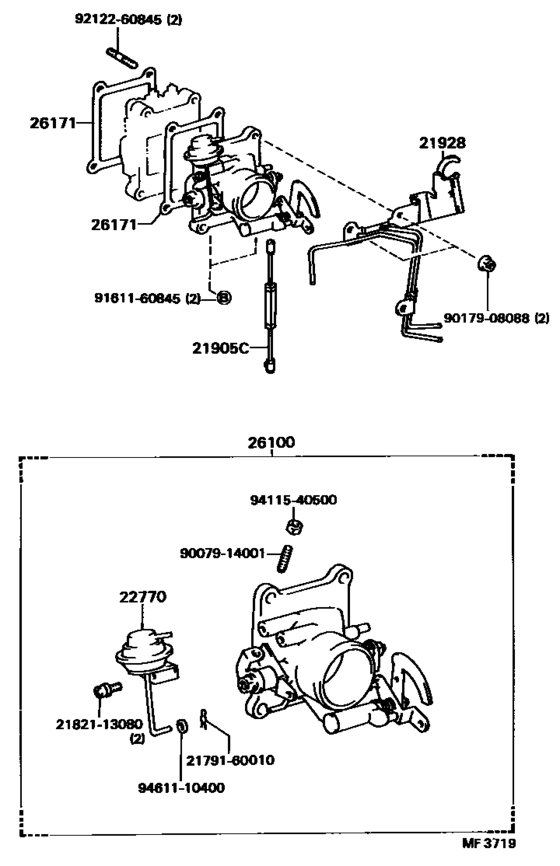

Venturi ([10.1985 - 08.1988] (8510-8808)13B) Diagram Toyota COASTER
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- BB22
- grade
- STD
- Roof
- HRF
- ENGINE
- 13B
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- Seating Capacity
- 15S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21905C
|
21905C
21905-56050 Rod, Accelerator Connecting(For Venturi)[10.1985 - 08.1988] 13B..BB22 |
21905-56050 |
US $13.10 |
||
|
21928
|
21928
21928-58030 Support, Throttle WireTHROTTLE WIRE [10.1985 - 08.1988] 13B..BB22 |
21928-58030 |
US $30.43 |
||
|
22770
|
22770
26133-56130 Actuator, Idel Up[10.1985 - 01.1993] 13B..BB22 |
26133-56130 |
US $122.30 |
||
|
26100
|
26100
26100-56130 Venturi Assy[10.1985 - 08.1988] 13B..BB22 |
26100-56130 |
US $583.86 |
||
| replacements | |||||
|
26100
|
26100
21928-58011 Support, Throttle Wire[10.1985 - 08.1988] 13B..BB22 |
21928-58011 |
US $30.43 |
||
|
26100
|
26100
26100-56131 Venturi Assy[10.1985 - 08.1988] 13B..BB22 |
26100-56131 |
US $586.77 |
||
|
26171
|
26171
26171-56040
Gasket, Venturi
[10.1985 - 08.1988] 13B..BB22 |
26171-56040 |
— | ||
|
2179160010
|
2179160010
21791-60010
Ring, Snap, No.1(For Carburetor Link)
|
21791-60010 |
— | ||
| replacement | |||||
|
2179160010
|
2179160010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
from US $1.54 |
||
|
2182113080
|
2182113080
21821-13080 Screw, 2nd Throttle Valve Set |
21821-13080 |
US $3.93 |
||
|
9007914001
|
9007914001
90079-14001 New Genuine Part |
90079-14001 |
US $1.60 |
||
| replacement | |||||
|
9007914001
|
9007914001
90079-14005 New Genuine Part |
90079-14005 |
US $1.60 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $2.72 |
||
|
9212260845
|
9212260845
92122-60845 Bolt, Stud(For Egr Valve) |
92122-60845 |
US $3.35 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
