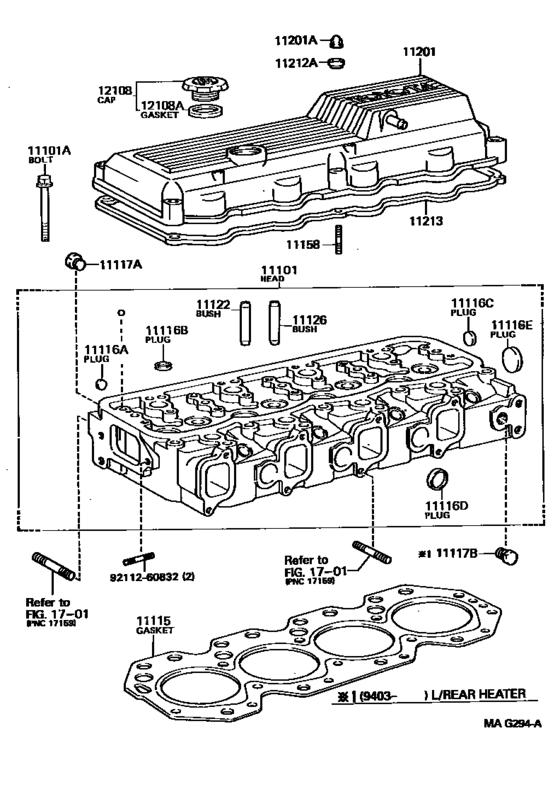

Cylinder Head ([01.1993 - 05.1995] (9301-9505)3B) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58050
Head Sub-Assy, Cylinder
[01.1993 - 05.1995] 3B..BB4# |
11101-58050 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-58051
Head Sub-Assy, Cylinder
[01.1993 - 05.1995] 3B..BB4# |
11101-58051 |
— | ||
|
11101
|
11101
11101-58051
Head Sub-Assy, Cylinder
[05.1995 - 07.1999] 3B..BB4# |
11101-58051 |
— | ||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90910-02084 |
from US $8.48 |
||
|
11115
|
11115
11115-58080
Gasket, Cylinder Head
[01.1993 - 05.1999] 3B..BB4# 厚さ＝１．５０ |
11115-58080 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-58081 Gasket, Cylinder Head[01.1993 - 05.1999] 3B..BB4# 厚さ＝１．５０ |
11115-58081 |
from US $106.65 |
||
|
11115
|
11115
11115-58081 Gasket, Cylinder Head[05.1999 - 07.1999] 3B..BB4# 厚さ＝１．５０ |
11115-58081 |
from US $106.65 |
||
|
11116A
|
11116A
90331-12004 Plug, Tight, No.1[11.1994 - 07.1999] 3B..BB4# |
90331-12004 |
US $1.02 |
||
|
11116A
|
11116A
96411-41200 Plug, Tight, No.1[01.1993 - 11.1994] 3B..BB4# |
96411-41200 |
from US $3.20 |
||
|
11116B
|
11116B
96411-44000 Plug, Tight, No.1[01.1993 - 11.1994] 3B..BB4# |
96411-44000 |
from US $4.19 |
||
|
11116B
|
11116B
96411-64000 Plug, Tight, No.2[11.1994 - 07.1999] 3B..BB4# |
96411-64000 |
from US $3.68 |
||
|
11116C
|
11116C
90331-21001 Plug, Tight, No.3[01.1993 - 11.1994] 3B..BB4# |
90331-21001 |
US $2.88 |
||
|
11116C
|
11116C
96411-62000 Plug, Tight[11.1994 - 07.1999] 3B..BB4# |
96411-62000 |
from US $2.97 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[01.1993 - 11.1994] 3B..BB4# |
96411-42800 |
from US $2.91 |
||
|
11116D
|
11116D
96411-62800 Plug, Tight, No.1[11.1994 - 07.1999] 3B..BB4# |
96411-62800 |
US $4.22 |
||
|
11116E
|
11116E
96411-44000 Plug, Tight, No.1[01.1993 - 11.1994] 3B..BB4# |
96411-44000 |
from US $4.19 |
||
|
11116E
|
11116E
96411-64000 Plug, Tight, No.2[11.1994 - 07.1999] 3B..BB4# |
96411-64000 |
from US $3.68 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[01.1993 - 07.1999] 3B..BB4# |
90345-54005 |
from US $3.88 |
||
|
11122
|
11122
11122-56030 Bush, Intake Valve Guide[01.1993 - 07.1999] 3B..BB4# ＳＴＤ |
11122-56030 |
from US $7.33 |
||
|
11126
|
11126
11122-56030 Bush, Intake Valve Guide[01.1993 - 07.1999] 3B..BB4# ＳＴＤ |
11122-56030 |
from US $7.33 |
||
|
11158
|
11158
90116-08282 Bolt, Stud(For Head To Cylinder Head Cover)[01.1993 - 05.1995] 3B..BB4# 長さ＝６０ |
90116-08282 |
US $3.20 |
||
| replacement | |||||
|
11158
|
11158
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[01.1993 - 05.1995] 3B..BB4# 長さ＝６０ |
92112-60850 |
US $1 |
||
|
11158
|
11158
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[05.1995 - 07.1999] 3B..BB4# |
92112-60850 |
US $1 |
||
|
11201
|
11201
11201-56101
Cover Sub-Assy, Cylinder Head
[01.1993 - 05.1995] 3B..BB4# |
11201-56101 |
— | ||
| replacements | |||||
|
11201
|
11201
91511-B0850 Bolt[01.1993 - 05.1995] 3B..BB4# |
91511-B0850 |
US $3.04 |
||
|
11201
|
11201
11201-58050 Cover Sub-Assy, Cylinder Head[01.1993 - 05.1995] 3B..BB4# |
11201-58050 |
US $253.34 |
||
|
11201
|
11201
11213-58030 Gasket, Cylinder Head Cover[01.1993 - 05.1995] 3B..BB4# |
11213-58030 |
from US $11.71 |
||
|
11201
|
11201
90179-08025 Nut, Cap(For Cylinder Head Cover)[01.1993 - 05.1995] 3B..BB4# |
90179-08025 |
from US $0.88 |
||
|
11201
|
11201
92112-60850 Bolt, Stud(For Head To Cylinder Head Cover)[01.1993 - 05.1995] 3B..BB4# |
92112-60850 |
US $1 |
||
|
11201
|
11201
11201-58050 Cover Sub-Assy, Cylinder Head[05.1995 - 07.1999] 3B..BB4# |
11201-58050 |
US $253.34 |
||
|
11201A
|
11201A
90176-08038
Nut, Cap(For Cylinder Head Cover)
[01.1993 - 02.1993] 3B..BB4# |
90176-08038 |
— | ||
| replacement | |||||
|
11201A
|
11201A
90179-08159 Nut, Cap(For Cylinder Head Cover)[01.1993 - 02.1993] 3B..BB4# |
90179-08159 |
US $2.40 |
||
|
11201A
|
11201A
90179-08025 Nut, Cap(For Cylinder Head Cover)[05.1995 - 05.1999] 15BF,3B..BB4#,5# |
90179-08025 |
from US $0.88 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[05.1999 - 07.1999] 15BF,3B..BB4#,58 |
90179-08040 |
from US $1.09 |
||
|
11201A
|
11201A
90179-08159 Nut, Cap(For Cylinder Head Cover)[02.1993 - 05.1995] 3B..BB4# |
90179-08159 |
US $2.40 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
11228-56010 |
US $5.28 |
||
|
11213
|
11213
11213-56030 Gasket, Cylinder Head Cover[01.1993 - 05.1995] 3B..BB4# |
11213-56030 |
from US $25.69 |
||
|
11213
|
11213
11213-58030 Gasket, Cylinder Head Cover[05.1995 - 07.1999] 3B..BB4# |
11213-58030 |
from US $11.71 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[01.1993 - 12.1993] 3B..BB4# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1993 - 12.1993] 3B..BB4# |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 - 07.1999] 15BF,3B..BB4#,5# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90430-37140 |
from US $1.23 |
||
|
9211260832
|
9211260832
92112-60832 Bolt, Stud(For Water Outlet Housing) |
92112-60832 |
US $3.36 |
||
