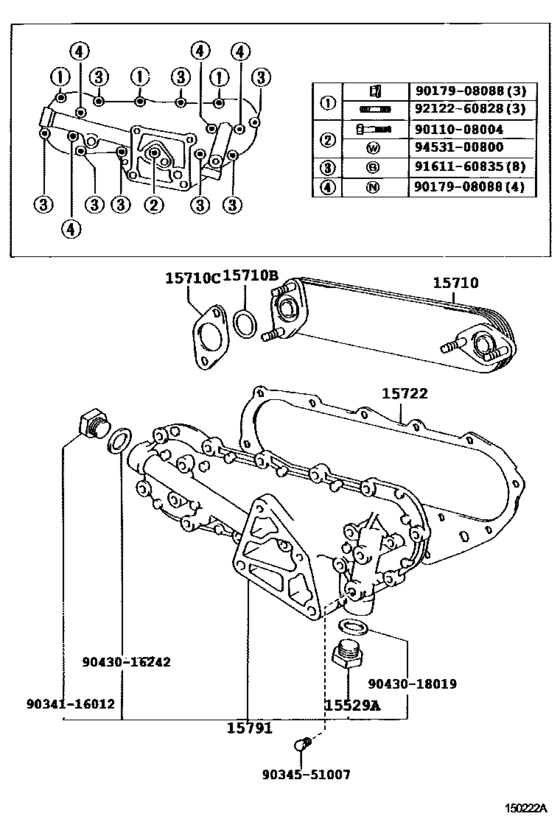

Engine Oil Cooler ([01.1993 - 05.1995] (9301-9505)3B) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15529A
|
15529A
90341-18006 Plug (No magnet)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
90341-18006 |
from US $2.88 |
||
|
15710
|
15710
15710-56100 Cooler Assy, Oil[01.1993 - 05.1995] 3B..BB4# |
15710-56100 |
US $534.35 |
||
|
15710
|
15710
15710-58040 Cooler Assy, Oil[05.1995 - 07.1999] 3B..BB4# |
15710-58040 |
US $576.58 |
||
| replacement | |||||
|
15710
|
15710
15710-58030 Cooler Assy, Oil[05.1995 - 07.1999] 3B..BB4# |
15710-58030 |
US $377.40 |
||
|
15710B
|
15710B
90301-20001 Ring, O(For Oil Cooler)[01.1993 - 05.1995] 3B..BB4# |
90301-20001 |
from US $3.71 |
||
|
15710C
|
15710C
15785-58010 Gasket(For Oil Cooler)[05.1995 - 07.1999] 15BF,3B..BB4#,5# |
15785-58010 |
US $3.67 |
||
|
15710C
|
15710C
90923-05018 Gasket(For Oil Cooler)[01.1993 - 05.1995] 3B..BB4# |
90923-05018 |
US $4.96 |
||
|
15722
|
15722
15725-56020 Gasket, Oil Cooler[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
15725-56020 |
from US $7.02 |
||
|
15791
|
15791
15701-56031 Case, Oil Cooler[01.1993 - 12.1994] 3B..BB4# |
15701-56031 |
US $445.54 |
||
| replacement | |||||
|
15791
|
15791
15701-58050 Case, Oil Cooler[01.1993 - 12.1994] 3B..BB4# |
15701-58050 |
US $282.46 |
||
|
15791
|
15791
15701-58050 Case, Oil Cooler[12.1994 - 07.1999] 15BF,3B..BB4#,5# |
15701-58050 |
US $282.46 |
||
|
9011008004
|
9011008004
90110-08004 New Genuine Part |
90110-08004 |
US $4.19 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
US $1.60 |
||
|
9034116012
|
9034116012
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.16 |
||
|
9034551007
|
9034551007
90345-51007 Plug, W/head Taper Screw, No.1 |
90345-51007 |
US $0.70 |
||
|
9043016242
|
9043016242
90430-16242 Gasket, W/head Straight Screw Plug |
90430-16242 |
from US $0.88 |
||
|
9043018019
|
9043018019
90430-18019 New Genuine Part |
90430-18019 |
US $1.16 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9212260828
|
9212260828
92122-60828 New Genuine Part |
92122-60828 |
US $2.72 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $2.56 |
||
