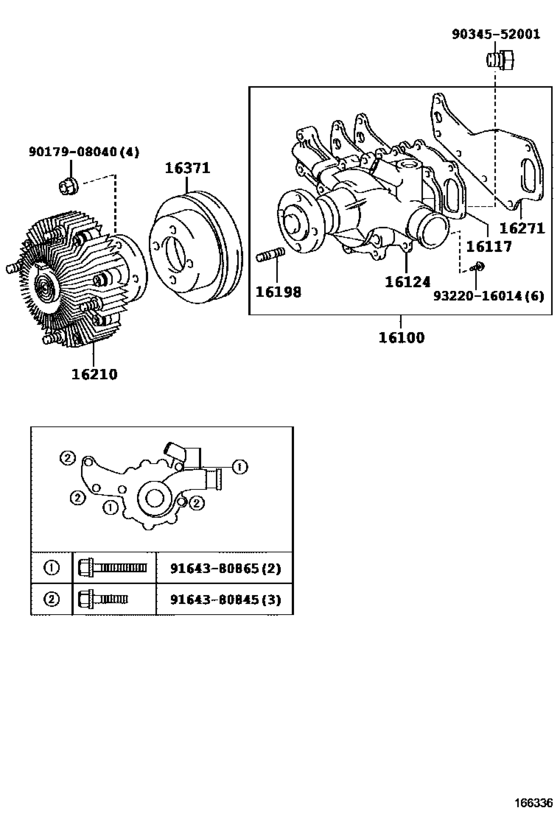

Water Pump ([05.1995 - 07.1999] (9505-9907)3B) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- Japan
- Frame
- BB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 39S
- Vehicle Model
- Coaster
- Fuel Induction
- DSL2
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59185 Pump Assy, Engine Water[01.1993 - 05.1995] 3B..BB4# |
16100-59185 |
US $206.75 |
||
| replacement | |||||
|
16100
|
16100
16100-59187 Pump Assy, Engine Water[01.1993 - 05.1995] 3B..BB4# |
16100-59187 |
US $162.49 |
||
|
16100
|
16100
16100-59186 Pump Assy, Engine Water[05.1995 - 07.1999] 15BF,3B..BB4#,5# |
16100-59186 |
US $216.94 |
||
| replacement | |||||
|
16100
|
16100
16100-59187 Pump Assy, Engine Water[05.1995 - 07.1999] 15BF,3B..BB4#,5# |
16100-59187 |
US $162.49 |
||
|
16117
|
16117
16117-58010
Plate, Water Pump
[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
16117-58010 |
— | ||
|
16124
|
16124
16124-58010 Gasket, Water Pump Cover[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
16124-58010 |
US $8.56 |
||
|
16198
|
16198
16198-41170 Bolt, Stud(For Water Pump Pulley Seat)[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
16198-41170 |
US $3.32 |
||
|
16210
|
16210
16210-58041 Coupling Assy, Fluid[01.1993 - 07.1999] 15BF,3B..BB4#,5# |
16210-58041 |
from US $242.46 |
||
|
16271
|
16271
16271-56030 Gasket, Water Pump[01.1993 - 04.1993] 3B..BB4# |
16271-56030 |
US $12.52 |
||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[01.1993 - 04.1993] 3B..BB4# |
16271-58010 |
US $18.09 |
||
|
16271
|
16271
16271-56031 Gasket, Water Pump[04.1993 - 05.1999] 15BF,3B..BB4#,5# |
16271-56031 |
US $12.52 |
||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[04.1993 - 05.1999] 15BF,3B..BB4#,5# |
16271-58010 |
US $18.09 |
||
|
16271
|
16271
16271-58010 Gasket, Water Pump[05.1999 - 07.1999] 15BF,3B..BB4#,58 |
16271-58010 |
US $18.09 |
||
|
16371
|
16371
16371-58030
Pulley, Fan
[01.1993 - 07.1999] 3B..BB40..STD..WOC |
16371-58030 |
— | ||
|
16371
|
16371
16371-58040 Pulley, Fan[01.1993 - 07.1999] 3B..BB40..STD..WC;15BF,3B..BB4#,5#..DX,LX; 3B..BB40..STD..WOC ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
16371-58040 |
US $53.87 |
||
| replacement | |||||
|
16371
|
16371
16371-58041 Pulley, Fan[01.1993 - 07.1999] 3B..BB40..STD..WC;15BF,3B..BB4#,5#..DX,LX; 3B..BB40..STD..WOC ﾎﾂｶｲﾄﾞｳ ｼﾖｳ |
16371-58041 |
US $36.17 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.09 |
||
|
9034552001
|
9034552001
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block) |
90345-52001 |
from US $3.68 |
||
|
9164380845
|
9164380845
91643-80845 New Genuine Part |
91643-80845 |
US $2.24 |
||
|
9164380865
|
9164380865
91643-80865 New Genuine Part |
91643-80865 |
US $2.24 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
