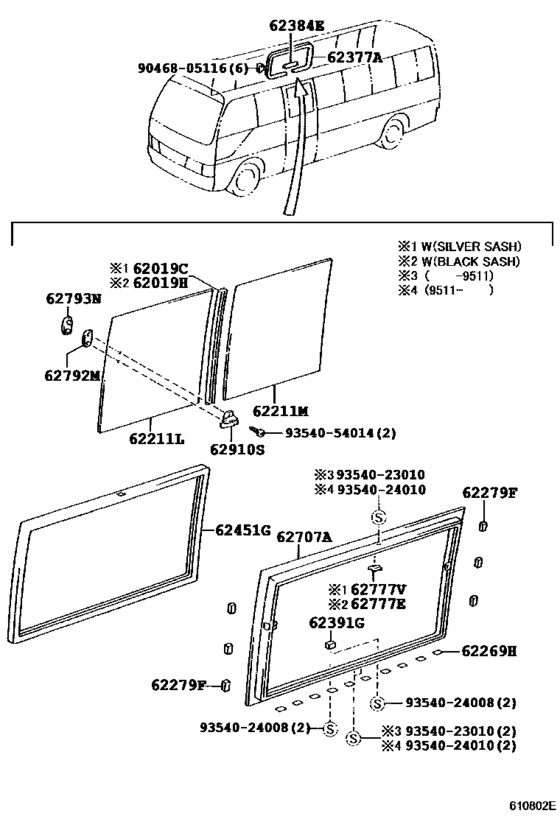

Side Window ([01.1993 - ] (9301- )ARL) Diagram Toyota COASTER
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- BB40
- grade
- STD
- Roof
- HRF
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 07.1999
- Gear Shift Type
- 5F
- Seating Capacity
- 19S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62019C
|
62019C
62019-36010
Frame Sub-Assy, Side Window, Center Rh
[01.1993 - 10.1996] BB4#,HZB50..RHD..(DX,STD)..DSL |
62019-36010 |
— | ||
|
62019C
|
62019C
62019-36031 Frame Sub-Assy, Side Window, Center Rh[10.1996 - 01.1998] BB4#,HZB50..RHD..(DX,STD) |
62019-36031 |
US $141.23 |
||
| replacement | |||||
|
62019C
|
62019C
62019-36034 Frame Sub-Assy, Side Window, Center Rh[10.1996 - 01.1998] BB4#,HZB50..RHD..(DX,STD) |
62019-36034 |
US $96.10 |
||
|
62019C
|
62019C
62019-36033 Frame Sub-Assy, Side Window, Center Rh[02.1999 - 07.1999] BB4#,HZB50..RHD..(DX,STD) |
62019-36033 |
US $142.69 |
||
| replacement | |||||
|
62019C
|
62019C
62019-36034 Frame Sub-Assy, Side Window, Center Rh[02.1999 - 07.1999] BB4#,HZB50..RHD..(DX,STD) |
62019-36034 |
US $96.10 |
||
|
62211L
|
62211L
62711-36060 Glass, Side Window, Front RhSIDE WINDOW, FRONT RH [01.1993 - 06.1993] BB40,HZB50..STD..WOC..ARL *TEM,T=5.0 |
62711-36060 |
US $302.85 |
||
| replacement | |||||
|
62211L
|
62211L
62711-36070
Glass, Side Window, Front Lh
[01.1993 - 06.1993] BB40,HZB50..STD..WOC..ARL *TEM,T=5.0 |
62711-36070 |
— | ||
|
62211L
|
62211L
62711-36070
Glass, Side Window, Front Lh
[05.1997 - 07.1999] BB40 *TT,T=5.0,GREEN |
62711-36070 |
— | ||
|
62211M
|
62211M
62711-36060 Glass, Side Window, Front RhSIDE WINDOW, FRONT RH [01.1993 - 05.1997] BB40,HZB50..STD..WOC..ARL *TEM,T=5.0 |
62711-36060 |
US $302.85 |
||
| replacement | |||||
|
62211M
|
62211M
62711-36070
Glass, Side Window, Front Lh
[01.1993 - 05.1997] BB40,HZB50..STD..WOC..ARL *TEM,T=5.0 |
62711-36070 |
— | ||
|
62211M
|
62211M
62711-36070
Glass, Side Window, Front Lh
[05.1997 - 07.1999] BB40,HZB50..ARL *TT,T=5.0,GREEN |
62711-36070 |
— | ||
|
62269H
|
62269H
62269-90K01 Film, Side Window Frame[01.1993 - 07.1999] HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S |
62269-90K01 |
US $1.92 |
||
|
62279F
|
62279F
62279-36010 Spacer, Side Window Frame, Upper[01.1993 - 07.1999] BB4#..RHD;HZB50..RHD..(ARL,GEN) |
62279-36010 |
from US $1.48 |
||
|
62377A
|
62377A
62376-36010-A0 Clip, Front Door Window[01.1993 - 09.1993] BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
62376-36010-A0 |
US $87.36 |
||
| replacement | |||||
|
62377A
|
62377A
62376-36010-B0 Clip, Front Door Window[01.1993 - 09.1993] BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
62376-36010-B0 |
US $76.35 |
||
|
62377A
|
62377A
62376-36010-A1 Clip, Front Door Window[05.1995 - 07.1999] HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
62376-36010-A1 |
US $87.36 |
||
| replacement | |||||
|
62377A
|
62377A
62376-36010-B0 Clip, Front Door Window[05.1995 - 07.1999] HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
62376-36010-B0 |
US $76.35 |
||
|
62384E
|
62384E
62384-36010-A0 Cap, Side Window[01.1993 - 09.1993] BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
62384-36010-A0 |
US $2.33 |
||
| replacement | |||||
|
62384E
|
62384E
62384-36010-A1 Cap, Side Window[01.1993 - 09.1993] BB4#;HZB50..ARL,GCC,GEN IVORY,TRIM4# |
62384-36010-A1 |
US $0.99 |
||
|
62384E
|
62384E
62384-36010-A1 Cap, Side Window[05.1995 - 07.1999] HZB50..ARL,GCC,GEN;BB4#,5#,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
62384-36010-A1 |
US $0.99 |
||
|
62391G
|
62391G
62391-36010 Stopper, Side Window, No.1 Lh[01.1993 - 07.1999] BB40,HZB50..ARL |
62391-36010 |
US $3.52 |
||
|
62451G
|
62451G
62451-36070
Run, Rear Side Window, Rh
[01.1993 - 06.1993] BB40,HZB50..ARL |
62451-36070 |
— | ||
| replacement | |||||
|
62451G
|
62451G
62451-36072 Run, Rear Side Window, RhREAR SIDE WINDOW, RH [01.1993 - 06.1993] BB40,HZB50..ARL |
62451-36072 |
US $133.95 |
||
|
62451G
|
62451G
62451-36071
Run, Rear Side Window, Rh
[02.1999 - 07.1999] BB40 |
62451-36071 |
— | ||
| replacement | |||||
|
62451G
|
62451G
62451-36072 Run, Rear Side Window, RhREAR SIDE WINDOW, RH [02.1999 - 07.1999] BB40 |
62451-36072 |
US $133.95 |
||
|
62707A
|
62707A
62707-36040 Frame Sub-Assy, Side Front Window, RhSIDE FRONT WINDOW, RH [01.1993 - 06.1993] BB40,HZB50..(DX,STD)..ARL |
62707-36040 |
US $601.33 |
||
|
62707A
|
62707A
62707-36041 Frame Sub-Assy, Side Front Window, RhSIDE FRONT WINDOW, RH [10.1996 - 07.1999] BB40 |
62707-36041 |
US $503.78 |
||
| replacement | |||||
|
62707A
|
62707A
62707-36042
Frame Sub-Assy, Side Rear Window, Rh
[10.1996 - 07.1999] BB40 |
62707-36042 |
— | ||
|
62777E
|
62777E
62777-36010 Cap, Side Window Center Sash[01.1993 - 10.1996] BB4#,HZB50..RHD..(DX,STD)..DSL |
62777-36010 |
US $4.66 |
||
| replacement | |||||
|
62777E
|
62777E
62777-36012 Cap, Side Window Center Sash[01.1993 - 10.1996] BB4#,HZB50..RHD..(DX,STD)..DSL |
62777-36012 |
US $3.20 |
||
|
62777E
|
62777E
62777-36011 Cap, Side Window Center Sash[10.1996 - 02.1999] BB4#,HZB50..RHD..(DX,STD) |
62777-36011 |
US $4.66 |
||
| replacement | |||||
|
62777E
|
62777E
62777-36012 Cap, Side Window Center Sash[10.1996 - 02.1999] BB4#,HZB50..RHD..(DX,STD) |
62777-36012 |
US $3.20 |
||
|
9046805116
|
9046805116
90468-05116 CLIP |
90468-05116 |
from US $1.15 |
||
|
9354023010
|
9354023010
93540-23010
SCREW
|
93540-23010 |
— | ||
| replacement | |||||
|
9354023010
|
9354023010
93540-13010 SCREW |
93540-13010 |
from US $2.33 |
||
|
9354024008
|
9354024008
93540-24008 SCREW |
93540-24008 |
US $1.44 |
||
|
9354024010
|
9354024010
93540-24010 Screw, Roof Headlining Trim |
93540-24010 |
US $2.56 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.99 |
||
