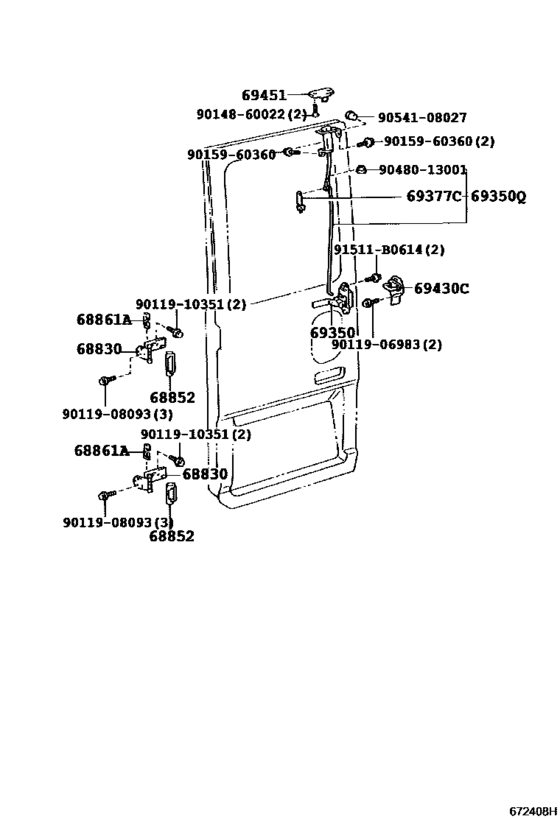

Back Door Lock & Hinge ([01.1993 - 01.2015] SINGLE SWING BACK DOOR (9301-9705)ARL ; (9301-1501)ARL..4FC ; (9301-150 1)BB42..HRF ; (9301-1501)BB42..SRF. .WOC ; (9301-1501 )BB42..LHD..SRF..WC) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68830
|
68830
68801-36010 Hinge Assy, Back Door, Rh[01.1993 - 05.1995] HZB50..EX..GEN;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S) W(*DSBD),UPPER |
68801-36010 |
US $72.51 |
||
|
68830
|
68830
68801-36020 Hinge Assy, Back Door, Rh[01.1993 - 07.1999] HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) W(LUGGAGE COMPARTMENT DOOR) |
68801-36020 |
US $47.03 |
||
|
68830
|
68830
68803-36010 Hinge Assy, Back Door, Rh[01.1993 - 05.1995] HZB50..EX..GEN;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S) W(*DSBD),LOWER |
68803-36010 |
US $69.96 |
||
|
68861A
|
68861A
68861-36010 Pad, Back Door Hinge[01.1993 - 05.1995] BB42,HZB50,RZB40,50..GCC,GEN W(DOUBLE SWING BACK DOOR) |
68861-36010 |
US $2.88 |
||
|
69350
|
69350
69350-36010 Lock Assy, Back Door[01.1993 - 05.1995] BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD) |
69350-36010 |
US $99.59 |
||
|
69350
|
69350
69350-36030 Lock Assy, Back Door[01.1993 - 07.1999] HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) W(LUGGAGE COMPARTMENT DOOR) |
69350-36030 |
from US $47.58 |
||
|
69350Q
|
69350Q
69880-36020 Lock Assy, Back Door, Upper[01.1993 - 05.1995] HZB50..EX..GEN;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S) |
69880-36020 |
US $84.91 |
||
|
69377C
|
69377C
69377-90A00 Snap, Back Door Upper Lock Rod[01.1993 - 05.1995] BB4#,HZB50,RZB40,50..CBU |
69377-90A00 |
US $2.33 |
||
|
69430C
|
69430C
69430-28010
Striker Assy, Back Door, Lower
[01.1993 - 09.1993] BB42,HZB50..GCC,GEN W(*DSBD) |
69430-28010 |
— | ||
| replacement | |||||
|
69430C
|
69430C
69430-95702 Striker Assy, Back Door Lock[01.1993 - 09.1993] BB42,HZB50..GCC,GEN W(*DSBD) |
69430-95702 |
US $19.39 |
||
|
69430C
|
69430C
69430-90B02 Striker Assy, Back Door Lock[01.1993 - 07.1999] HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) W(LUGGAGE COMPARTMENT DOOR) |
69430-90B02 |
from US $25.08 |
||
|
69430C
|
69430C
69430-95702 Striker Assy, Back Door Lock[09.1993 - 05.1995] BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD) |
69430-95702 |
US $19.39 |
||
|
69451
|
69451
69451-90B01 Striker Assy, Back Door, Upper[01.1993 - 05.1995] HZB50..EX..GEN;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S) |
69451-90B01 |
US $14.12 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9011910351
|
9011910351
90119-10351 BOLT |
90119-10351 |
US $5.76 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9015960360
|
9015960360
90159-60360 New Genuine Part |
90159-60360 |
US $1.02 |
||
|
9048013001
|
9048013001
90480-13001 New Genuine Part |
90480-13001 |
US $1.46 |
||
|
9054108027
|
9054108027
90541-08027 Cushion(For Fuel Inlet Box Cover) |
90541-08027 |
US $1.60 |
||
