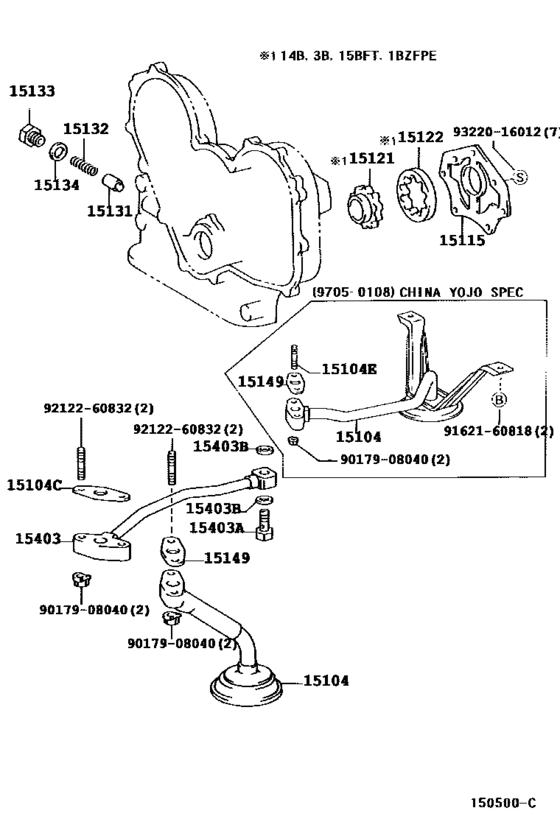

Engine Oil Pump ([01.1993 - ] (9301- )14B,15B#,1BZFPE,3B) Diagram Toyota COASTER
- Year
- 1993 - 2001
- Sales region
- General
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1993
- To
- 08.2001
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-58060 Strainer Sub-Assy, Oil[01.1993 - 04.1999] 14B,15BFT,3B..BB4#,5# |
15104-58060 |
US $141.23 |
||
| replacement | |||||
|
15104
|
15104
15104-58061 Strainer Sub-Assy, Oil[01.1993 - 04.1999] 14B,15BFT,3B..BB4#,5# |
15104-58061 |
US $87.36 |
||
|
15104
|
15104
15104-58061 Strainer Sub-Assy, Oil[04.1999 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15104-58061 |
US $87.36 |
||
|
15104C
|
15104C
15149-56020
Gasket(For Oil Strainer)
[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15149-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15149-58010 |
US $4.02 |
||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[08.1999 - 08.2001] 14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF. .WOC;14B,15BFT..BB4#,50..17S,19S,22S |
15149-58010 |
US $4.02 |
||
|
15115
|
15115
15115-56040 Cover, Oil Pump[01.1993 - 07.1999] 14B,3B..BB40,42 |
15115-56040 |
US $40.88 |
||
|
15121
|
15121
15121-56040 Gear, Oil Pump Drive[01.1993 - 07.1999] 14B,3B..BB40,42 |
15121-56040 |
from US $49.27 |
||
|
15122
|
15122
15122-56040 Gear, Oil Pump Driven[01.1993 - 07.1999] 14B,3B..BB40,42 |
15122-56040 |
from US $62.17 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15131-24010 |
from US $4.04 |
||
|
15132
|
15132
15132-56080 Spring, Oil Pump Relief Valve[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15132-56080 |
US $2.80 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15133-20010 |
US $6.56 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15134-20010 |
from US $1.85 |
||
|
15149
|
15149
15149-56020
Gasket(For Oil Strainer)
[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15149-56020 |
— | ||
| replacement | |||||
|
15149
|
15149
15149-58010 Gasket(For Oil Strainer)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15149-58010 |
US $4.02 |
||
|
15149
|
15149
15149-58010 Gasket(For Oil Strainer)[08.1999 - 08.2001] 14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF. .WOC;14B,15BFT..BB4#,50..17S,19S,22S |
15149-58010 |
US $4.02 |
||
|
15403
|
15403
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
15403-56050 |
US $54.16 |
||
|
15403A
|
15403A
90401-20009 Union(For Oil Pump Outlet Pipe)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
90401-20009 |
US $5.42 |
||
|
15403B
|
15403B
90430-20018 Gasket(For Oil Pump Outlet Pipe)[01.1993 - 07.1999] 14B,15BFT,3B..BB4#,5# |
90430-20018 |
from US $1.05 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.09 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
