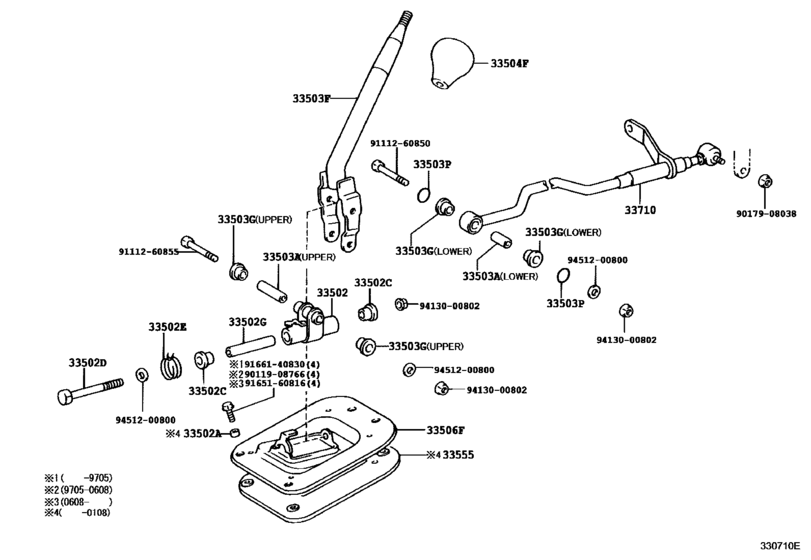

Shift Lever & Retainer ([01.1993 - ] (9301- )HZB50..RHD..5F ; (9301- )BB40,42,5 0..RHD..STD..5F..DSL,TD) Diagram Toyota COASTER
- Year
- 2011 - 2016
- Sales region
- Europe
- Frame
- BB42
- grade
- STD
- Roof
- SRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2011
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33502-36100 Plate Sub-Assy, Shift Lever[08.2004 - 01.2015] BB42,HZB50..RHD |
33502-36100 |
US $33.02 |
||
|
33502C
|
33502C
90386-13192 Bush(For Over Center Plate)[08.2004 - 01.2015] BB42,HZB50..RHD |
90386-13192 |
from US $1.76 |
||
|
33502D
|
33502D
90101-08107 Bolt, Hexagon (For Shift Lever Plate)[08.2004 - 01.2015] BB42,HZB50..RHD |
90101-08107 |
US $1.75 |
||
|
33502E
|
33502E
90508-32033 Spring, Torsion (For Shift Lever Plate)[08.2004 - 01.2015] BB42,HZB50..RHD |
90508-32033 |
US $1.49 |
||
|
33502G
|
33502G
90387-08064 Collar (For Shift Lever Plate)[08.2004 - 01.2015] BB42,HZB50..RHD |
90387-08064 |
US $4.54 |
||
|
33503A
|
33503A
90387-08063 Collar(For Shift Lever)[08.2004 - 01.2015] BB42,HZB50..RHD UPPER |
90387-08063 |
US $3.20 |
||
|
33503A
|
33503A
90387-08065 Collar(For Shift Lever)[08.2004 - 01.2015] BB42,HZB50..RHD LOWER |
90387-08065 |
US $1.22 |
||
|
33503F
|
33503F
33055-36080 Lever Sub-Assy, Shift(For Floor Shift)[08.2004 - 01.2015] BB42,HZB50..RHD |
33055-36080 |
US $64.36 |
||
|
33503G
|
33503G
90386-13192 Bush(For Over Center Plate)[08.2004 - 01.2015] BB42,HZB50..RHD UPPER |
90386-13192 |
from US $1.76 |
||
|
33503G
|
33503G
90389-11002 Bush(For Shift Lever)[08.2004 - 01.2015] BB42,HZB50..RHD LOWER |
90389-11002 |
from US $2.72 |
||
|
33503P
|
33503P
96711-24018 Ring, O[08.2004 - 01.2015] BB42,HZB50..RHD |
96711-24018 |
from US $2.26 |
||
|
33504F
|
33504F
33504-36051-C0 Knob Sub-Assy, Shift Lever[08.2004 - 01.2015] BB42,50,59,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..5F BLACK,TRIM1# |
33504-36051-C0 |
US $25.99 |
||
|
33506F
|
33506F
33571-36210 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[08.2004 - 01.2015] BB42,HZB50..RHD |
33571-36210 |
US $45.72 |
||
|
33710
|
33710
33710-36260 Rod Assy, Gear Shifting, No.1[08.2004 - 01.2015] BB42,HZB50..RHD |
33710-36260 |
US $53.11 |
||
|
9011908766
|
9011908766
90119-08766 BOLT WWASHER |
90119-08766 |
US $1.22 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9111260850
|
9111260850
91112-60850 New Genuine Part |
91112-60850 |
US $0.70 |
||
|
9111260855
|
9111260855
91112-60855 New Genuine Part |
91112-60855 |
US $0.87 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9166140830
|
9166140830
91661-40830
New Genuine Part
|
91661-40830 |
— | ||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
