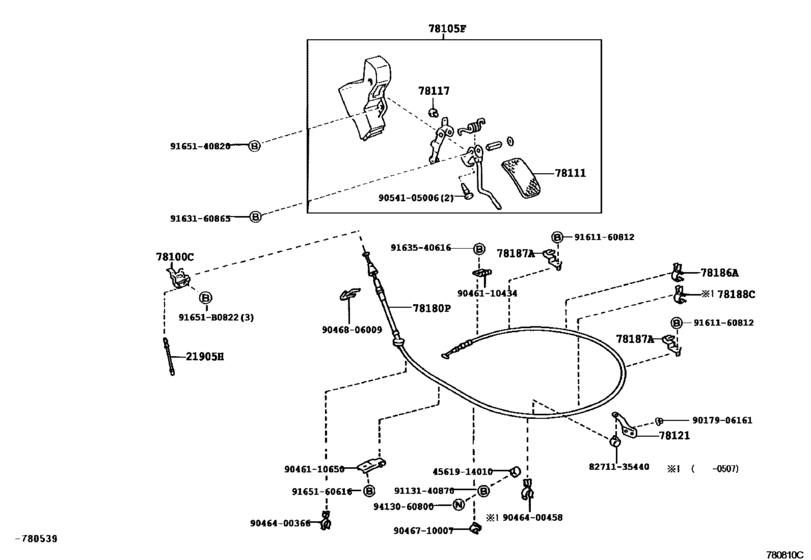

Accelerator Link ([09.2003 - ] (0309- )TD) Diagram Toyota COASTER
- Year
- 1999 - 2015
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 07.1999
- To
- 01.2015
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21905H
|
21905H
21905-58090 Rod Sub-Assy, Accelerator ConnectingACCELERATOR CONNECTING [07.1999 - 08.2004] 15BFT..BB50..STD..GEN..CBU..5F |
21905-58090 |
US $36.40 |
||
|
78100C
|
78100C
78100-36160
Link Assy, Accelerator, No.2
[07.1999 - 08.2004] BB50..STD..GEN..CBU..5F..TD |
78100-36160 |
— | ||
|
78105F
|
78105F
78105-36020
Link Sub-Assy, Accelerator
[12.2003 - 08.2004] BB42,50,RZB40,50..LHD..5F |
78105-36020 |
— | ||
|
78105F
|
78105F
78105-36060 Link Sub-Assy, AcceleratorACCELERATOR [07.2001 - 12.2003] BB50..LHD..WC..TD |
78105-36060 |
US $94.64 |
||
| replacement | |||||
|
78105F
|
78105F
78105-36020
Link Sub-Assy, Accelerator
[07.2001 - 12.2003] BB50..LHD..WC..TD |
78105-36020 |
— | ||
|
78111
|
78111
78111-95110 Pedal, Accelerator[07.2001 - 08.2004] BB50..STD..WC..GEN..5F..TD |
78111-95110 |
from US $7.52 |
||
|
78117
|
78117
90541-06036 Cushion, No.1(For Clutch Pedal)[07.2001 - 08.2004] BB50..STD..WC..GEN..5F..TD |
90541-06036 |
from US $0.94 |
||
| replacement | |||||
|
78117
|
78117
90541060361
CUSHION
[07.2001 - 08.2004] BB50..STD..WC..GEN..5F..TD |
90541060361 |
— | ||
|
78121
|
78121
58297-36020
Retainer, Spring (For Accelerator Link Rod)
[07.2005 - 02.2007] BB50..TD |
58297-36020 |
— | ||
|
78121
|
78121
58297-36021
Retainer, Spring (For Accelerator Link Rod)
[02.2007 - 01.2015] BB50 |
58297-36021 |
— | ||
|
78180P
|
78180P
78180-36180
Cable Assy, Accelerator Control
[07.1999 - 06.2000] BB50..STD..CBU |
78180-36180 |
— | ||
| replacement | |||||
|
78180P
|
78180P
78180-36182
Cable Assy, Accelerator Control
[07.1999 - 06.2000] BB50..STD..CBU |
78180-36182 |
— | ||
|
78180P
|
78180P
78180-36181 Cable Assy, Accelerator ControlACCELERATOR CONTROL [06.2000 - 07.2001] BB50..LHD..CBU |
78180-36181 |
US $110.66 |
||
| replacement | |||||
|
78180P
|
78180P
78180-36182
Cable Assy, Accelerator Control
[06.2000 - 07.2001] BB50..LHD..CBU |
78180-36182 |
— | ||
|
78180P
|
78180P
78180-36182
Cable Assy, Accelerator Control
[07.2001 - 08.2004] BB50..STD..GEN..CBU..5F..TD |
78180-36182 |
— | ||
|
78180P
|
78180P
78180-36183
Cable Assy, Accelerator Control
[07.2005 - 01.2015] BB50..TD |
78180-36183 |
— | ||
|
78186A
|
78186A
78186-36030 Clamp, Accelerator Control Cable, No.3[07.1999 - 08.2004] BB50..STD..GEN..CBU..5F..TD |
78186-36030 |
US $3.20 |
||
|
78187A
|
78187A
78187-36030 Clamp, Accelerator Control Cable, No.4[07.1999 - 08.2004] BB50..STD..GEN..CBU..5F..TD |
78187-36030 |
US $3.20 |
||
|
78188C
|
78188C
78188-36030 Clamp, Accelerator Control Cable, No.5ACCELERATOR CONTROL CABLE, NO.5 [07.1999 - 08.2004] BB50..STD..GEN..CBU..5F..TD |
78188-36030 |
US $4.22 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.94 |
||
|
4561914010
|
4561914010
45619-14010 Cover, Knuckle Stopper |
45619-14010 |
US $8.64 |
||
|
8271135440
|
8271135440
82711-35440 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35440 |
US $1.46 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9046110434
|
9046110434
90461-10434 Clamp (For Accelerator Wire Set) |
90461-10434 |
US $3.06 |
||
|
9046110650
|
9046110650
90461-10650
Clamp, Accelerator Control Cable
|
90461-10650 |
— | ||
|
9046400366
|
9046400366
90464-00366 Clamp Or Clip(For Radiator Reserve Tank Hose No.3) |
90464-00366 |
US $5.82 |
||
|
9046400458
|
9046400458
90464-00458 New Genuine Part |
90464-00458 |
US $8.01 |
||
|
9046710007
|
9046710007
90467-10007 New Genuine Part |
90467-10007 |
US $1.44 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9054105006
|
9054105006
90541-05006 Cushion (For Accelerator Rod) |
90541-05006 |
US $1.16 |
||
|
9113140870
|
9113140870
91131-40870 Bolt(For Clutch Master Cylinder Setting) |
91131-40870 |
US $0.87 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9163160865
|
9163160865
91631-60865 BOLT WWASHER |
91631-60865 |
from US $0.94 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.70 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
