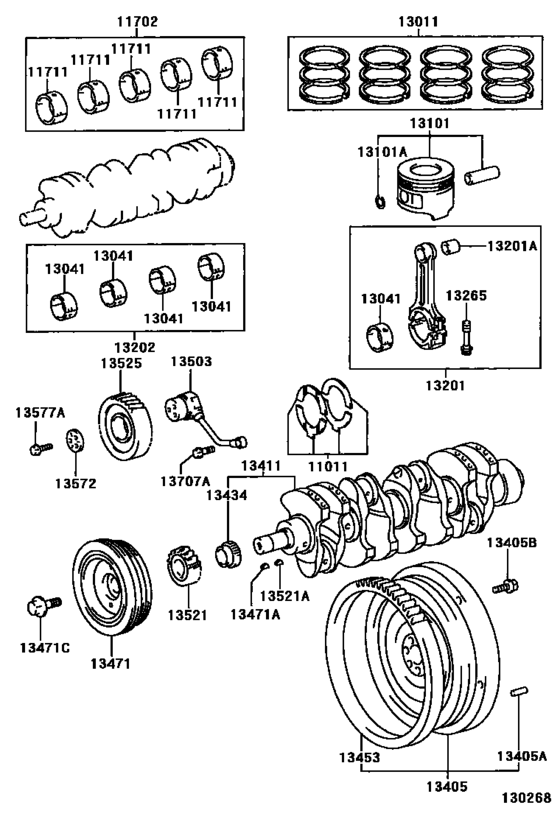

Crankshaft & Piston ([07.1999 - ] (9907- )15BFTE) Diagram Toyota COASTER
- Year
- 2003 - 2006
- Sales region
- General
- Frame
- BB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 15BFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 08.2006
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-58010 Washer Set, Crankshaft Thrust[07.1999 - 08.2004] 15BFTE..BB5# STD |
11011-58010 |
US $32.32 |
||
|
11011
|
11011
11012-58010 Washer Set, Crankshaft Thrust[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.125 |
11012-58010 |
US $40.48 |
||
|
11011
|
11011
11013-58010 Washer Set, Crankshaft Thrust[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.250 |
11013-58010 |
US $40.48 |
||
|
11702
|
11702
11704-58020 Bearing Set, Crankshaft[07.1999 - 08.2004] 15BFTE..BB5# U/S 0.25 |
11704-58020 |
US $422.82 |
||
|
11702
|
11702
11705-58020 Bearing Set, Crankshaft[07.1999 - 08.2004] 15BFTE..BB5# U/S 0.50 |
11705-58020 |
US $433.89 |
||
|
11702
|
11702
11707-58020 Bearing Set, Crankshaft[07.1999 - 08.2004] 15BFTE..BB5# U/S 1.00 |
11707-58020 |
US $433.89 |
||
|
11711
|
11711
11701-58020-01
Bearing, Crankshaft
[07.1999 - 08.2004] 15BFTE..BB5# MARK 1,REFER REPAIR MANUAL |
11701-58020-01 |
— | ||
|
11711
|
11711
11701-58020-02 Bearing, Crankshaft[07.1999 - 08.2004] 15BFTE..BB5# MARK 2,REFER REPAIR MANUAL |
11701-58020-02 |
US $66.74 |
||
|
13011
|
13011
13011-58110 Ring Set, Piston[07.1999 - 08.2004] 15BFTE..BB5# STD |
13011-58110 |
US $326.14 |
||
|
13011
|
13011
13013-58110
Ring Set, Piston
[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.50 |
13013-58110 |
— | ||
|
13011
|
13011
13014-58110 Ring Set, Piston[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.75 |
13014-58110 |
US $390.21 |
||
|
13011
|
13011
13015-58110 Ring Set, Piston[07.1999 - 08.2004] 15BFTE..BB5# O/S 1.00 |
13015-58110 |
US $390.21 |
||
|
13041
|
13041
13041-58040-01 Bearing, Connecting Rod[07.1999 - 08.2004] 15BFTE..BB5# MARK 1,REFER REPAIR MANUAL |
13041-58040-01 |
US $43.68 |
||
|
13041
|
13041
13041-58040-02 Bearing, Connecting Rod[07.1999 - 08.2004] 15BFTE..BB5# MARK 2,REFER REPAIR MANUAL |
13041-58040-02 |
US $43.68 |
||
|
13101
|
13101
13101-58120
Piston Sub-Assy, W/pin
[08.2004 - 08.2006] 15BFTE..BB5# STD,REFER REPAIR MANUAL |
13101-58120 |
— | ||
|
13101
|
13101
13101-58120-01 Piston Sub-Assy, W/pin[07.1999 - 08.2004] 15BFTE..BB5# STD,MARK 1,REFER REPAIR MANUAL |
13101-58120-01 |
from US $289.85 |
||
|
13101
|
13101
13101-58120-02 Piston Sub-Assy, W/pin[07.1999 - 08.2004] 15BFTE..BB5# STD,MARK 2,REFER REPAIR MANUAL |
13101-58120-02 |
US $337.21 |
||
|
13101
|
13101
13101-58120-03 Piston Sub-Assy, W/pin[07.1999 - 08.2004] 15BFTE..BB5# STD,MARK 3,REFER REPAIR MANUAL |
13101-58120-03 |
US $346.53 |
||
|
13101
|
13101
13103-58120
Piston Sub-Assy, W/pin
[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.50 |
13103-58120 |
— | ||
|
13101
|
13101
13104-58120 Piston Sub-Assy, W/pin[07.1999 - 08.2004] 15BFTE..BB5# O/S 0.75 |
13104-58120 |
US $282.46 |
||
|
13101
|
13101
13105-58120 Piston Sub-Assy, W/pin[07.1999 - 08.2004] 15BFTE..BB5# O/S 1.00 |
13105-58120 |
US $282.46 |
||
|
13101A
|
13101A
90521-40002 Ring, Hole Snap(For Piston Pin)[07.1999 - 08.2004] 15BFTE..BB5# |
90521-40002 |
US $1.31 |
||
|
13201
|
13201
13201-59205 Rod Sub-Assy, Connecting[07.1999 - 04.2004] 15BFTE..BB5# |
13201-59205 |
US $310.13 |
||
| replacement | |||||
|
13201
|
13201
13201-59275 Rod Sub-Assy, Connecting[07.1999 - 04.2004] 15BFTE..BB5# |
13201-59275 |
US $321.78 |
||
|
13201
|
13201
13201-59275 Rod Sub-Assy, Connecting[04.2004 - 08.2004] 15BFTE..BB5# |
13201-59275 |
US $321.78 |
||
|
13201A
|
13201A
90999-73141 Bush(For Connecting Rod Small End)[07.1999 - 08.2004] 15BFTE..BB5# |
90999-73141 |
US $174.72 |
||
|
13202
|
13202
13204-58040 Bearing Set, Connecting Rod[07.1999 - 08.2004] 15BFTE..BB5# U/S 0.25 |
13204-58040 |
US $213.16 |
||
|
13202
|
13202
13205-58040
Bearing Set, Connecting Rod
[07.1999 - 08.2004] 15BFTE..BB5# U/S 0.50 |
13205-58040 |
— | ||
|
13202
|
13202
13207-58040
Bearing Set, Connecting Rod
[07.1999 - 08.2004] 15BFTE..BB5# U/S 1.00 |
13207-58040 |
— | ||
|
13265
|
13265
13265-58030 Bolt, Connecting Rod[07.1999 - 08.2004] 15BFTE..BB5# |
13265-58030 |
US $19.95 |
||
|
13405
|
13405
13405-58050 Flywheel Sub-Assy[07.1999 - 08.2004] 15BFTE..BB5# |
13405-58050 |
US $741.10 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[07.1999 - 08.2004] 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD. .SRF..WC L=22,OD=10; 15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..B B42..LHD..HRF..WOC L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
13405B
|
13405B
90913-01022 Bolt, Flywheel Setting[07.1999 - 08.2004] 15BFTE..BB5# |
90913-01022 |
US $4.08 |
||
|
13411
|
13411
13401-58080 Crankshaft[07.1999 - 08.2004] 15BFTE..BB5# |
13401-58080 |
US $2,649.92 |
||
|
13434
|
13434
13519-56011
Spline, Oil Pump Drive
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
13519-56011 |
— | ||
|
13453
|
13453
13453-17010 Gear, Flywheel Ring[07.1999 - 08.2004] 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD. .SRF..WC; 15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
13453-17010 |
US $101.34 |
||
|
13471
|
13471
13470-58032 Pulley, Crankshaft[07.1999 - 08.2004] 15BFTE..BB5#;14B..BB42..26S..WC;15BFT..BB50..STD..GEN..CBU..5F; 14B..BB42..SRF..WOC..GEN;14B..BB42..LHD..HRF..WOC BATTERY(48D26R X2) |
13470-58032 |
US $276.06 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
95161-30416 |
from US $1.44 |
||
|
13471C
|
13471C
90901-19061 Bolt(For Crankshaft Pulley Set)[07.1999 - 08.2004] 15BFTE..BB5# |
90901-19061 |
US $9.61 |
||
|
13503
|
13503
13504-58020 Shaft Sub-Assy, Idle Gear[07.1999 - 08.2004] 15BFTE..BB5# |
13504-58020 |
from US $151.40 |
||
|
13521
|
13521
13521-58010 Gear Or Sprocket, Crankshaft Timing[07.1999 - 08.2004] 15BFTE..BB5# |
13521-58010 |
US $134.53 |
||
|
13521A
|
13521A
95161-30519 Key(For Crankshaft Timing Gear)[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
95161-30519 |
US $3.32 |
||
|
13525
|
13525
13520-58010 Gear, Idle, No.1[07.1999 - 08.2004] 15BFTE..BB5# |
13520-58010 |
US $117.86 |
||
|
13572
|
13572
13572-58010 Plate, Idle Gear Thrust[07.1999 - 08.2004] 15BFTE..BB5# |
13572-58010 |
US $37.56 |
||
|
13577A
|
13577A
90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)[07.1999 - 08.2004] 15BFTE..BB5# |
90105-10194 |
US $4.72 |
||
|
13707A
|
13707A
90401-10026 Union(For Oil Pipe, No.1)[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
90401-10026 |
US $1.40 |
||
