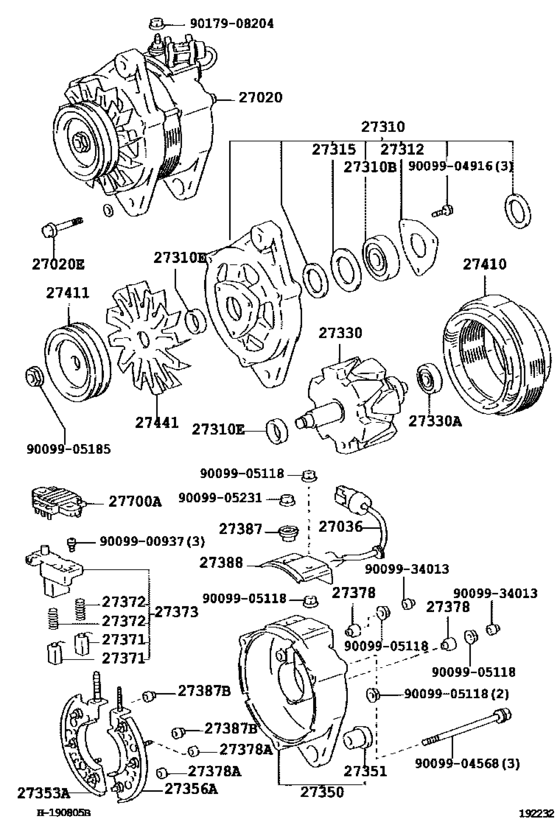

Alternator ([10.2003 - ] 24V 85A (0310- )15BFT) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-58430 Alternator Assy[10.2003 - 01.2007] 15BFT..BB5# 24V 85A |
27060-58430 |
US $2,387.84 |
||
|
27020E
|
27020E
90101-12173 Bolt(For Alternator)[10.2003 - 01.2007] 15BFT..BB5# |
90101-12173 |
US $6.99 |
||
|
27036
|
27036
27036-58450
Terminal Sub-Assy, Lead Wire, Alternator
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27036-58450 |
— | ||
|
27310
|
27310
27310-58191
Frame Assy, Drive End, Alternator
[10.2003 - 01.2007] 15BFT..BB5# |
27310-58191 |
— | ||
|
27310B
|
27310B
90099-10188
Bearing(For Alternator Drive End Frame)
[10.2003 - 01.2007] 15BFT..BB5# |
90099-10188 |
— | ||
|
27310E
|
27310E
90099-20014
Ring, Space(For Alternator Rotor)
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
90099-20014 |
— | ||
|
27312
|
27312
27312-56070
Plate, Bearing Retainer, Alternator
[10.2003 - 01.2007] 15BFT..BB5# |
27312-56070 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27315-56070 |
— | ||
|
27330
|
27330
27330-58090
Rotor Assy, Alternator
[10.2003 - 01.2007] 15BFT..BB5# |
27330-58090 |
— | ||
|
27330A
|
27330A
90099-10141
Bearing(For Alternator Drive End Frame)
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
90099-10141 |
— | ||
|
27350
|
27350
27350-58450
Frame Assy, Rectifier End
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27350-58450 |
— | ||
|
27351
|
27351
27351-58160
Bush(For Alternator Rectifier End Frame)
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27351-58160 |
— | ||
|
27353A
|
27353A
27353-58010
Holder, W/rectifier
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27353-58010 |
— | ||
|
27356A
|
27356A
27356-58010
Holder, W/rectifier Positive, Alternator
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27356-58010 |
— | ||
|
27371
|
27371
27371-54412 Brush, Alternator[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27371-54412 |
US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27372-56070 |
— | ||
|
27373
|
27373
27373-58010
Holder, Alternator Brush, A
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27373-58010 |
— | ||
|
27378
|
27378
27378-45020
Insulator, Alternator, No.1
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27378-45020 |
— | ||
|
27378A
|
27378A
27378-54010
Insulator, Alternator, No.2
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27378-54010 |
— | ||
|
27387
|
27387
27387-17130
Insulator, Terminal
[10.2003 - 01.2007] 15BFT..BB5# |
27387-17130 |
— | ||
|
27387B
|
27387B
27387-54010
Insulator, Terminal
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27387-54010 |
— | ||
|
27388
|
27388
27388-58010
Cover, Alternator Brush
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27388-58010 |
— | ||
|
27410
|
27410
27410-58010
Stator Assy, Alternator
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27410-58010 |
— | ||
|
27411
|
27411
27411-58010
Pulley, Alternator
[10.2003 - 01.2007] 15BFT..BB5# |
27411-58010 |
— | ||
|
27441
|
27441
27441-57030
Fan, Alternator
[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27441-57030 |
— | ||
|
27700A
|
27700A
27700-58010 Regulator Assy, Generator[10.2003 - 01.2007] 15BFT..BB5#..20S,23S,24S |
27700-58010 |
US $266.45 |
||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009904568
|
9009904568
90099-04568
New Genuine Part
|
90099-04568 |
— | ||
|
9009904916
|
9009904916
90099-04916
New Genuine Part
|
90099-04916 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
