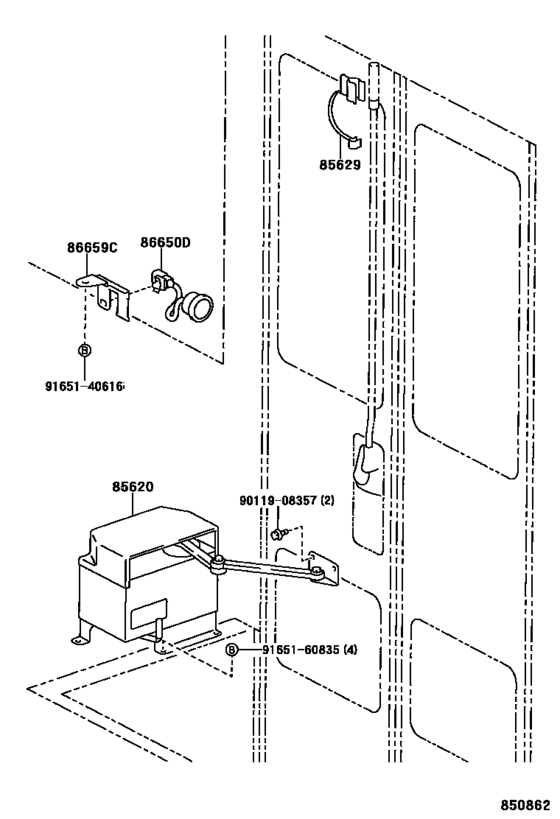

Automatic Door ([12.2000 - ] FOLDING TYPE (0012- )STD,STDH) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85620
|
85620
85620-36250
Motor Assy, Automatic Door Regulator
[01.2004 - 01.2007] BB54 |
85620-36250 |
— | ||
| replacement | |||||
|
85620
|
85620
85620-36251
Motor Assy, Automatic Door Regulator
[01.2004 - 01.2007] BB54 |
85620-36251 |
— | ||
|
85629
|
85629
85629-36010 Holder, Automatic Door[01.2004 -] BB54,RZB54,TRB53,XZB53..STD,STDH |
85629-36010 |
from US $9.32 |
||
|
86650D
|
86650D
86650-36060 Buzzer Assy[01.2004 - 01.2007] BB54..20S,29S |
86650-36060 |
US $27.52 |
||
|
86659C
|
86659C
86659-36010 Bracket, Buzzer, Automatic Door[01.2004 -] BB54,RZB54..20S,29S,30S |
86659-36010 |
US $2.91 |
||
|
9011908357
|
9011908357
90119-08357 BOLT |
90119-08357 |
US $1.16 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
