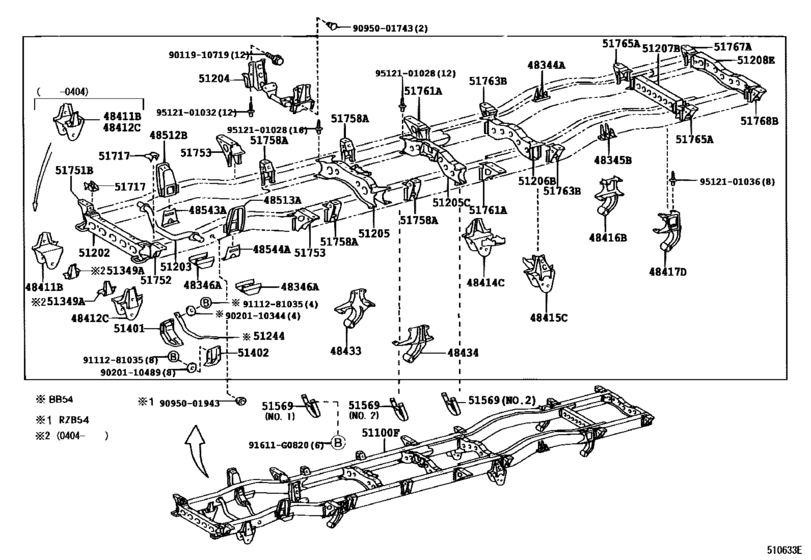

Frame ([12.2000 - ] (0012- )BB54,RZB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48344A
|
48344A
48344-36460
Stopper, Bumper, Rear Rh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
48344-36460 |
— | ||
|
48345B
|
48345B
48345-36070
Stopper, Bumper, Rear Lh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
48345-36070 |
— | ||
|
48346A
|
48346A
48346-36080 Stopper, Bumper, FrBUMPER, FR [10.2003 - 04.2004] BB54,RZB54 |
48346-36080 |
US $54.60 |
||
|
48346A
|
48346A
48346-36090
Stopper, Bumper, Fr
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48346-36090 |
— | ||
|
48411B
|
48411B
48401-36022
Bracket, Spring, No.1 Rh
[10.2003 - 04.2004] BB54,RZB54 |
48401-36022 |
— | ||
| replacement | |||||
|
48411B
|
48411B
48401-36030
Bracket, Spring, No.1 Rh
[10.2003 - 04.2004] BB54,RZB54 |
48401-36030 |
— | ||
|
48411B
|
48411B
48411-36190
Bracket, Spring, No.1 Rh
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48411-36190 |
— | ||
|
48412C
|
48412C
48403-36032
Bracket, Spring, No.1 Lh
[10.2003 - 04.2004] BB54,RZB54 |
48403-36032 |
— | ||
| replacement | |||||
|
48412C
|
48412C
48403-36040
Bracket, Spring, No.1 Lh
[10.2003 - 04.2004] BB54,RZB54 |
48403-36040 |
— | ||
|
48412C
|
48412C
48412-36180
Bracket, Spring, No.1 Lh
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48412-36180 |
— | ||
|
48414C
|
48414C
48414-36330 Bracket, Spring, No.3 Rh[10.2003 - 04.2004] BB5#,RZB5# |
48414-36330 |
US $72.65 |
||
|
48414C
|
48414C
48414-36360
Bracket, Spring, No.3 Rh
[04.2004 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48414-36360 |
— | ||
|
48415C
|
48415C
48415-36110 Bracket, Spring, No.3 Lh[10.2003 - 04.2004] BB5#,RZB5# |
48415-36110 |
US $72.65 |
||
|
48415C
|
48415C
48415-36120
Bracket, Spring, No.3 Lh
[04.2004 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48415-36120 |
— | ||
|
48416B
|
48416B
48416-36330
Bracket, Spring, No.4 Rh
[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48416-36330 |
— | ||
|
48417D
|
48417D
48417-36200
Bracket, Spring, No.4 Lh
[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
48417-36200 |
— | ||
|
48433
|
48433
48433-36080
Bracket, Spring, No.2 Rh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48433-36080 |
— | ||
|
48434
|
48434
48434-36080
Bracket, Spring, No.2 Lh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48434-36080 |
— | ||
|
48512B
|
48512B
48512-36130 Bracket, Front Shock Absorber, Upper RhFRONT SHOCK ABSORBER, UPPER RH [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48512-36130 |
US $85.90 |
||
|
48513A
|
48513A
48512-36130 Bracket, Front Shock Absorber, Upper RhFRONT SHOCK ABSORBER, UPPER RH [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48512-36130 |
US $85.90 |
||
|
48543A
|
48543A
48543-36030
Reinforcement, Front Absorber Bracket, Rh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48543-36030 |
— | ||
|
48544A
|
48544A
48544-36030
Reinforcement, Front Absorber Bracket, Lh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48544-36030 |
— | ||
|
51100F
|
51100F
51001-3C090
Frame Sub-Assy
[10.2003 - 01.2007] BB54 |
51001-3C090 |
— | ||
|
51202
|
51202
51201-36210
Crossmember Sub-Assy, Frame, No.1
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51201-36210 |
— | ||
|
51203
|
51203
51202-36200
Crossmember Sub-Assy, Frame, No.2
[10.2003 - 01.2007] BB54,RZB54 |
51202-36200 |
— | ||
|
51204
|
51204
51203-36370 Crossmember Sub-Assy, Frame, No.3FRAME, NO.3 [10.2003 - 01.2007] BB54 |
51203-36370 |
US $588.22 |
||
|
51205
|
51205
51204-36220
Crossmember Sub-Assy, Frame, No.4
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51204-36220 |
— | ||
| replacement | |||||
|
51205
|
51205
51204-36221
Crossmember Sub-Assy, Frame, No.4
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51204-36221 |
— | ||
|
51205C
|
51205C
51205-36200 Crossmember Sub-Assy, Frame, No.5FRAME, NO.5 [10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51205-36200 |
US $112.11 |
||
| replacement | |||||
|
51205C
|
51205C
51205-36202
Crossmember Sub-Assy, Frame, No.5
[10.2003 - 10.2013] BB5#,RZB5#,XZB53 |
51205-36202 |
— | ||
|
51206B
|
51206B
51206-36130
Crossmember Sub-Assy, Frame, No.6
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51206-36130 |
— | ||
|
51207B
|
51207B
51207-36150
Crossmember Sub-Assy, Frame, No.7
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51207-36150 |
— | ||
|
51208E
|
51208E
51208-36060
Crossmember Sub-Assy, Frame, No.8
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51208-36060 |
— | ||
|
51244
|
51244
51244-36070 Member, Engine Front SupportENGINE FRONT SUPPORT [10.2003 - 01.2007] BB54..20S,23S |
51244-36070 |
US $180.54 |
||
|
51349A
|
51349A
51349-36030
Reinforcement, Rear Spring Front Bracket, No.2
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
51349-36030 |
— | ||
|
51401
|
51401
51421-36230
Bracket Sub-Assy, Engine Front Mounting, Rh
[10.2003 - 01.2007] BB54 |
51421-36230 |
— | ||
|
51402
|
51402
51422-36160
Bracket Sub-Assy, Engine Front Mounting, Lh
[10.2003 - 01.2007] BB54 |
51422-36160 |
— | ||
|
51569
|
51569
51569-36180 Guard, Propeller Shaft[10.2003 - 04.2011] BB5#,RZB5#,TRB53,XZB53 NO.2 |
51569-36180 |
US $27.08 |
||
|
51569
|
51569
51569-36190 Guard, Propeller Shaft[10.2003 - 04.2011] BB5#,RZB5#,TRB53,XZB53 NO.1 |
51569-36190 |
US $23.15 |
||
|
51717
|
51717
51717-36010 Plate, Body Support BracketBODY SUPPORT BRACKET [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51717-36010 |
US $8.30 |
||
|
51751B
|
51751B
51751-36090 Bracket, Body Support, No.1 RhBODY SUPPORT, NO.1 RH [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51751-36090 |
US $27.08 |
||
|
51752
|
51752
51752-36010 Bracket, Body Support, No.1 LhBODY SUPPORT, NO.1 LH [10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51752-36010 |
US $27.08 |
||
|
51753
|
51753
51753-36080 Bracket, Body Support, No.2BODY SUPPORT, NO.2 [10.2003 - 01.2007] BB54,RZB54 RH |
51753-36080 |
US $71.05 |
||
|
51753
|
51753
51754-36030 Bracket, Body Support, No.2BODY SUPPORT, NO.2 [10.2003 - 01.2007] BB54,RZB54 LH |
51754-36030 |
US $71.05 |
||
|
51758A
|
51758A
51758-36020 Bracket, Body Support, No.4 Rh[10.2003 - 08.2011] BB5#,RZB5#,TRB53,XZB53 |
51758-36020 |
US $22.42 |
||
|
51761A
|
51761A
51761-36041 Bracket, Body Support, No.5 Rh[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
51761-36041 |
US $37.27 |
||
|
51763B
|
51763B
51763-36061 Bracket, Body Support, No.6[10.2003 - 01.2007] BB5#,RZB5#..20S,23S,24S |
51763-36061 |
US $20.53 |
||
|
51765A
|
51765A
51765-36051 Bracket, Frame Body Mounting, No.7 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51765-36051 |
US $14.56 |
||
|
51767A
|
51767A
51767-36150 Bracket, Frame Body Mounting, No.8 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51767-36150 |
US $14.27 |
||
|
51768B
|
51768B
51767-36150 Bracket, Frame Body Mounting, No.8 Rh[10.2003 - 02.2011] BB5#,RZB5#,TRB53,XZB53 |
51767-36150 |
US $14.27 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9011910719
|
9011910719
90119-10719 BOLT WWASHER |
90119-10719 |
US $3.68 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
US $1.76 |
||
|
9020110489
|
9020110489
90201-10489 Washer, Plate(For Timing Gear) |
90201-10489 |
US $2.56 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9095001943
|
9095001943
90950-01943
New Genuine Part
|
90950-01943 |
— | ||
|
9111281035
|
9111281035
91112-81035 New Genuine Part |
91112-81035 |
US $2.18 |
||
|
9512101028
|
9512101028
95121-01028 RIVET |
95121-01028 |
from US $2.65 |
||
|
9512101032
|
9512101032
95121-01032 RIVET |
95121-01032 |
US $3.84 |
||
|
9512101036
|
9512101036
95121-01036 RIVET |
95121-01036 |
US $4.08 |
||
