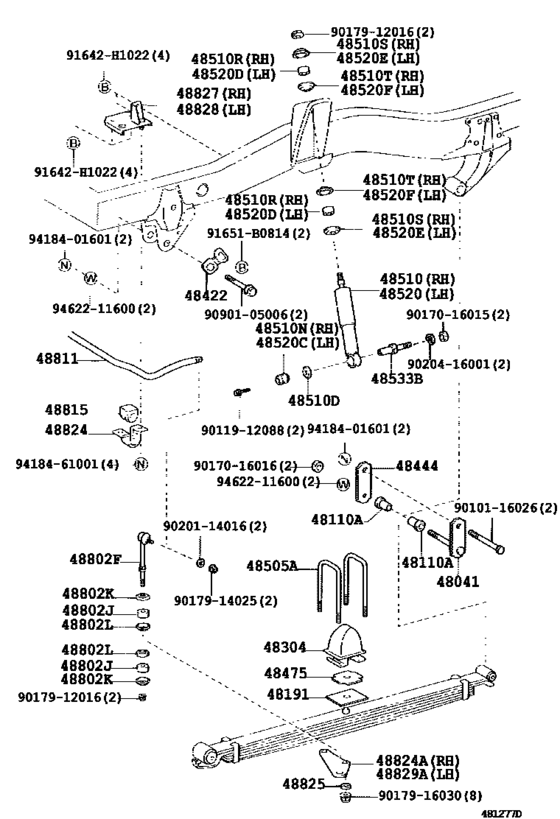

Front Spring & Shock Absorber ([12.2000 - 01.2007] (0012-0701)BB54,RZB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48041
|
48041
48041-36100 Shackle Sub-Assy, Front Spring, No.1FRONT SPRING, NO.1 [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48041-36100 |
US $58.24 |
||
|
48110A
|
48110A
90385-23006
Bush(For Front Spring Shackle)
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90385-23006 |
— | ||
|
48191
|
48191
48191-36150 Wedge, Caster(For Front Leaf Spring)CASTER(FOR FRONT LEAF SPRING) [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48191-36150 |
US $17.91 |
||
|
48304
|
48304
48304-36180
Bumper Sub-Assy, Front Spring, No.1
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48304-36180 |
— | ||
|
48422
|
48422
48422-37010 Support, Front Spring Pin[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48422-37010 |
US $5.12 |
||
|
48444
|
48444
48444-36100 Plate, Front Spring Shackle, InnerFRONT SPRING SHACKLE, INNER [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48444-36100 |
US $33.05 |
||
|
48475
|
48475
48475-36070 Plate, Distance(For Front)[10.2003 - 04.2004] BB54,RZB54 |
48475-36070 |
US $15.29 |
||
|
48475
|
48475
48475-36110
Plate, Distance(For Front)
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48475-36110 |
— | ||
|
48505A
|
48505A
90117-16082 Bolt, U(For Front Spring)[10.2003 - 01.2007] BB54,RZB54..20S,23S L=140 |
90117-16082 |
US $17.48 |
||
|
48510
|
48510
48511-36270
Absorber Assy, Shock, Front Rh
[10.2003 - 01.2007] BB54,RZB54 MARK 48511-36270 |
48511-36270 |
— | ||
|
48510D
|
48510D
90948-03011 Washer, Front Shock Absorber Cushion, No.1[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90948-03011 |
from US $2.08 |
||
|
48510N
|
48510N
90385-19012
Bush(For Front Shock Absorber Rh)
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90385-19012 |
— | ||
|
48510R
|
48510R
90948-01079
Cushion, Front Shock Absorber, No.1 Rh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-01079 |
— | ||
|
48510S
|
48510S
90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-02009 |
US $10.56 |
||
|
48510T
|
48510T
90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-02054 |
from US $3.04 |
||
|
48520
|
48520
48511-36270
Absorber Assy, Shock, Front Rh
[10.2003 - 01.2007] BB54,RZB54 MARK 48511-36270 |
48511-36270 |
— | ||
|
48520C
|
48520C
90385-19012
Bush(For Front Shock Absorber Rh)
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90385-19012 |
— | ||
|
48520D
|
48520D
90948-01079
Cushion, Front Shock Absorber, No.1 Rh
[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-01079 |
— | ||
|
48520E
|
48520E
90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-02009 |
US $10.56 |
||
|
48520F
|
48520F
90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 -] BB5#,RZB5#,TRB53,XZB53 |
90948-02054 |
from US $3.04 |
||
|
48533B
|
48533B
48533-36060 Pin, Front Shock Absorber Lower PivotFRONT SHOCK ABSORBER LOWER PIVOT [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48533-36060 |
US $10.48 |
||
|
48802F
|
48802F
48802-36050
Link Sub-Assy, Front Stabilizer
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48802-36050 |
— | ||
|
48802J
|
48802J
90948-01079
Cushion, Front Shock Absorber, No.1 Rh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90948-01079 |
— | ||
|
48802K
|
48802K
90948-02009 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90948-02009 |
US $10.56 |
||
|
48802L
|
48802L
90948-02054 Retainer, Cushion, No.1(For Front Shock Absorber)[10.2003 - 01.2007] BB54,RZB54..20S,23S |
90948-02054 |
from US $3.04 |
||
|
48811
|
48811
48811-36080
Bar, Stabilizer, Front
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48811-36080 |
— | ||
|
48815
|
48815
48815-36040
Bush, Front Stabilizer Bar, No.1
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48815-36040 |
— | ||
|
48824
|
48824
48824-36090
Bracket, Stabilizer, Front
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48824-36090 |
— | ||
|
48824A
|
48824A
48809-36040 Bracket, Front Stabilizer, No.1 RhFRONT STABILIZER, NO.1 RH [10.2003 - 04.2004] BB54,RZB54 |
48809-36040 |
US $25.77 |
||
|
48824A
|
48824A
48809-36050
Bracket, Front Stabilizer, No.1 Rh
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48809-36050 |
— | ||
|
48825
|
48825
48825-36040 Bracket, Stabilizer, No.2STABILIZER, NO.2 [10.2003 - 01.2007] BB54,RZB54..20S,23S |
48825-36040 |
US $6.12 |
||
|
48827
|
48827
48827-36070
Bracket, Front Stabilizer, No.2 Rh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48827-36070 |
— | ||
|
48828
|
48828
48828-36050
Bracket, Front Stabilizer, No.2 Lh
[10.2003 - 01.2007] BB54,RZB54..20S,23S |
48828-36050 |
— | ||
|
48829A
|
48829A
48807-36010 Bracket, Front Stabilizer, No.1 LhFRONT STABILIZER, NO.1 LH [10.2003 - 04.2004] BB54,RZB54 |
48807-36010 |
US $25.77 |
||
|
48829A
|
48829A
48807-36020
Bracket, Front Stabilizer, No.1 Lh
[04.2004 - 01.2007] BB54,RZB54..20S,23S |
48807-36020 |
— | ||
|
91642H1022
|
91642H1022
91642-H1022 BOLT W-WASHER |
91642-H1022 |
US $2.24 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9010116026
|
9010116026
90101-16026 BOLT HEXAGON |
90101-16026 |
US $6.19 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.11 |
||
|
9017016015
|
9017016015
90170-16015 New Genuine Part |
90170-16015 |
US $3.84 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
from US $1.85 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.24 |
||
|
9017914025
|
9017914025
90179-14025 Nut (For Front Lower Ball Joint Setting) |
90179-14025 |
from US $1.68 |
||
|
9017916030
|
9017916030
90179-16030 NUT |
90179-16030 |
US $3.04 |
||
|
9020114016
|
9020114016
90201-14016 WASHER |
90201-14016 |
US $1.76 |
||
|
9020416001
|
9020416001
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9090105006
|
9090105006
90901-05006 BOLT WASHER BASED |
90901-05006 |
US $9.44 |
||
|
9418401601
|
9418401601
94184-01601 NUT LOCK |
94184-01601 |
from US $1.54 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
|
9462211600
|
9462211600
94622-11600 WASHER |
94622-11600 |
from US $2.57 |
||
