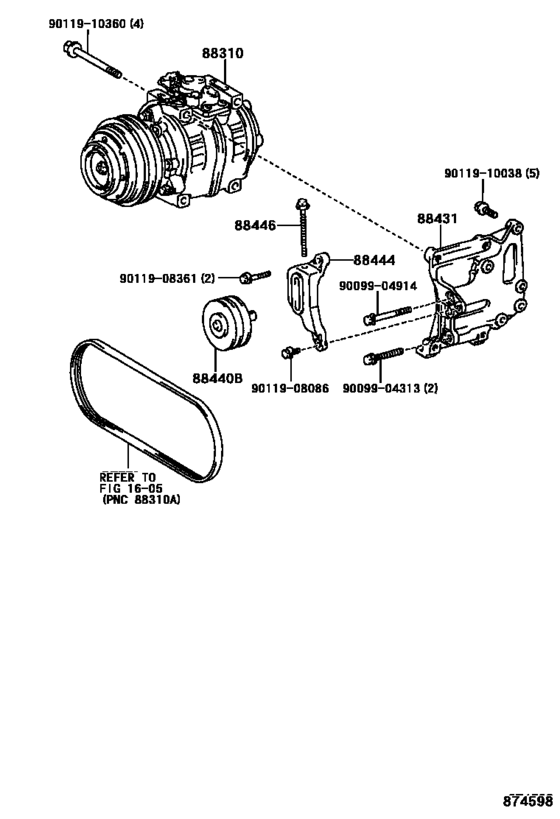

Heating & Air Conditioning - Compressor ([12.2000 - 01.2007] (0012-0701)BB5#) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-3B030
Compressor Assy, W/pulley
[10.2003 - 01.2007] BB5# |
88310-3B030 |
— | ||
|
88431
|
88431
88431-36630
Bracket, Compressor Mounting, No.1
[10.2003 - 01.2007] BB5# |
88431-36630 |
— | ||
|
88440B
|
88440B
88440-36200
Pulley Assy, Idle
[10.2003 - 01.2007] BB5# |
88440-36200 |
— | ||
|
88444
|
88444
88444-36220
Bracket, Idle Pulley
[10.2003 - 01.2007] BB5#..20S,23S,24S |
88444-36220 |
— | ||
|
88446
|
88446
90099-04306 Bolt, Idle Pulley[10.2003 - 03.2014] BB5#,XZB53 |
90099-04306 |
US $1.92 |
||
|
9009904313
|
9009904313
90099-04313 BOLT |
90099-04313 |
US $2.03 |
||
|
9009904914
|
9009904914
90099-04914
New Genuine Part
|
90099-04914 |
— | ||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011908361
|
9011908361
90119-08361 New Genuine Part |
90119-08361 |
US $2.04 |
||
|
9011910038
|
9011910038
90119-10038 New Genuine Part |
90119-10038 |
US $5.76 |
||
|
9011910360
|
9011910360
90119-10360 BOLT |
90119-10360 |
from US $2.65 |
