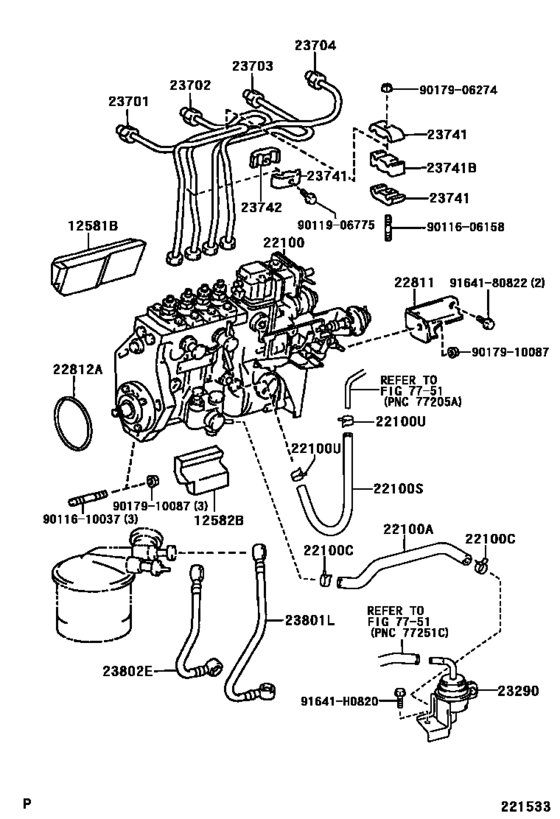

Injection Pump Assembly ([10.2003 - ] (0310- )15BFT..BB54) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- BB54
- grade
- STD
- ENGINE
- 15BFT
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- TD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12581B
|
12581B
12581-58040 Insulator, Cylinder Block, No.1CYLINDER BLOCK, NO.1 [10.2003 - 01.2007] 15BFT..BB5# |
12581-58040 |
US $27.66 |
||
|
12582B
|
12582B
12582-58020 Insulator, Cylinder Block, No.2CYLINDER BLOCK, NO.2 [10.2003 - 01.2007] 15BFT..BB5# |
12582-58020 |
US $17.47 |
||
|
22100
|
22100
22100-5C350
Pump Assy, Injection Or Supply
[10.2003 - 01.2007] 15BFT..BB5# |
22100-5C350 |
— | ||
|
22100A
|
22100A
23271-58170
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.2003 - 01.2007] 15BFT..BB54 |
23271-58170 |
— | ||
|
22100C
|
22100C
96132-41500 Clip(For Ventilation Tube)[10.2003 - 01.2007] 15BFT..BB5# |
96132-41500 |
from US $1.44 |
||
|
22100S
|
22100S
95333-06030
Hose, Fuel
[10.2003 - 01.2007] 15BFT..BB5# |
95333-06030 |
— | ||
| replacement | |||||
|
22100S
|
22100S
95338-06030 HOSE, FUEL[10.2003 - 01.2007] 15BFT..BB5# |
95338-06030 |
from US $9.28 |
||
|
22100U
|
22100U
96132-51100 Clip (For Hose)[10.2003 - 01.2007] 15BFT..BB5# |
96132-51100 |
from US $1.68 |
||
|
22811
|
22811
22811-58040 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [10.2003 - 01.2007] 15BFT..BB5# |
22811-58040 |
US $9.61 |
||
|
22812A
|
22812A
90301-82002 Ring, OO [10.2003 - 01.2007] 15BFT..BB5# |
90301-82002 |
US $2.62 |
||
|
23290
|
23290
23290-58020
Damper Assy, Fuel Suction
[10.2003 - 01.2007] 15BFT..BB54 |
23290-58020 |
— | ||
|
23701
|
23701
23701-58040
Pipe Sub-Assy, Injection, No.1
[10.2003 - 01.2007] 15BFT..BB5# |
23701-58040 |
— | ||
|
23702
|
23702
23702-58040
Pipe Sub-Assy, Injection, No.2
[10.2003 - 01.2007] 15BFT..BB5# |
23702-58040 |
— | ||
|
23703
|
23703
23703-58040
Pipe Sub-Assy, Injection, No.3
[10.2003 - 01.2007] 15BFT..BB5# |
23703-58040 |
— | ||
|
23704
|
23704
23704-58040 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [10.2003 - 01.2007] 15BFT..BB5# |
23704-58040 |
US $49.55 |
||
|
23741
|
23741
23741-58010 Clamp, Injection Pipe, No.1[10.2003 - 01.2007] 15BFT..BB5# |
23741-58010 |
from US $1.91 |
||
|
23741B
|
23741B
23741-56021 Clamp, Injection Pipe, No.2[10.2003 - 01.2007] 15BFT..BB5# |
23741-56021 |
US $4.89 |
||
|
23742
|
23742
23742-58010 Clamp, Injection Pipe, No.2[10.2003 - 01.2007] 15BFT..BB5# |
23742-58010 |
US $3.67 |
||
|
23801L
|
23801L
23801-58040 Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump)FUEL(FOR FUEL FILTER TO INJECTION PUMP) [10.2003 - 01.2007] 15BFT..BB5# |
23801-58040 |
US $64.47 |
||
|
23802E
|
23802E
23802-58020 Pipe Sub-Assy, FuelFUEL [10.2003 - 01.2007] 15BFT..BB5# |
23802-58020 |
from US $29.97 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.84 |
||
|
9011606158
|
9011606158
90116-06158 New Genuine Part |
90116-06158 |
US $1.46 |
||
|
9011610037
|
9011610037
90116-10037 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10037 |
US $4.16 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017910087
|
9017910087
90179-10087 Nut (For Front Lower Ball Joint Setting) |
90179-10087 |
from US $0.99 |
||
|
9164180822
|
9164180822
91641-80822 New Genuine Part |
91641-80822 |
US $1.44 |
||
